25
Preparations
24
Notes
• When an AUDIO OUT terminal is connected, sound is not output from the projector
speaker.
• Output volume of AUDIO OUT terminal can be adjusted by the
VOL
button.

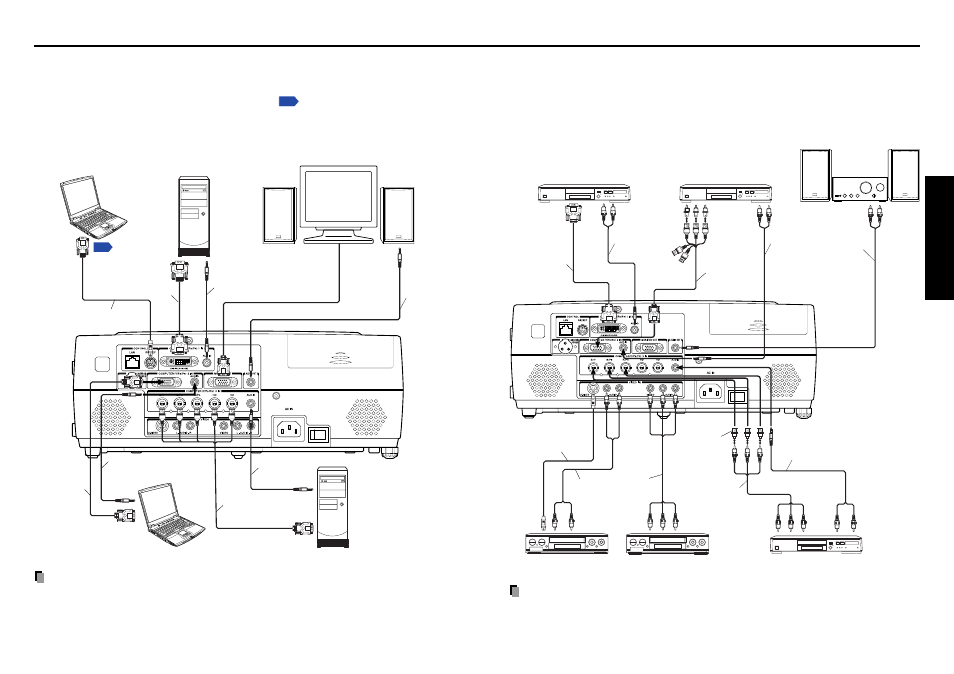

Connecting with AV equipment
DVD video recorder, etc.
DVD video recorder,
DVD player, etc.
Audio amplifier, etc.
DVD video recorder, etc.
Video recorder,
DVD player, etc.
Video recorder, etc.
To DVI output
Conversion
adapter BNC-pin
(not supplied)
To Y/C
B
/C
R
output
Green (Y)/Blue
(C
B
)/Red (C
R
)
DVI cable-29 pin
(not supplied)
Audio cable
(not supplied)
To audio output
White (L)/Red (R)
Audio cable
(not supplied)
Monitor cable Mini
D-sub 15P-BNC
(not supplied)
To audio output
White (L)/Red (R)
Audio cable
(not supplied)
To audio
input
White (L)/
Red (R)
Audio cable
(not supplied)
To audio output
White (L)/Red (R)
To audio output
White (L)/Red (R)
To audio output
White (L)/Red (R)
Conversion adapter
BNC-pin (not supplied)
Green (Y)/Blue (C
B
)/
Red (C
R
)
Component cable
(not supplied)
To Y/C
B
/C
R
output
Green (Y)/Blue
(C
B
)/Red (C
R
)
AV cable
(not supplied)
Video cable
(not supplied)
S-video cable
(not supplied)
To S-video
output
To video output
• The MONITOR OUT terminal outputs analog RGB signals or component video signals (Y/
P
B
/P
R
) from the COMPUTER 1 IN, COMPUTER 2 IN, or from the COMPUTER 3 IN
terminal as selected with the
INPUT
button. If no input is selected, the MONITOR OUT
terminal outputs the input signals last selected among the COMPUTER 1 IN, COMPUTER
2 IN, and the COMPUTER 3 IN terminals. (Digital RGB signals are not output.)
• A computer monitor usually cannot accept Y/P
B
/P
R
signals correctly.
Before connection
• Read the owner’s manual of the device you are connecting to the projector.
• Some types of computer cannot be used or connected to this projector.
Check for an RGB output terminal, supported signal
, etc.
• Turn off the power of both devices before connecting.
• The figures are sample connections.
Connecting with computers
Notes
• Signals are output from MONITOR OUT terminal even in standby mode.
From AUDIO OUT terminal, no audio signal is output.
• Moving pictures played back on computers using DVD software may appear unnatural if it
is projected with this projector, but it is not a malfunction.
Connection
Computer (for control)
Computer
Monitor
Speaker with
built-in amplifier
To RS-232C
terminal
To DVI output
DVI cable
(not supplied)
Audio cable
(not supplied)
To audio output
To audio
input
Audio cable
(not
supplied)
Control cable
RGB cable
(supplied)
Audio cable
(not supplied)
To audio
output
To RGB output
Computer
Monitor cable Mini
D-sub 15P-BNC
(not supplied)
To RGB output
To audio
output
Audio cable (not supplied)
Computer
