Name

: Main Function

(1) Infrared remote sensor

: Senses commands from the remote control.

p.20

(2) CONTROL terminal

LAN : Connects a network cable.

RS232C : When operating the projector via a computer, connect

this to the controlling computer’s RS-232C port.

p.91

(3) COMPUTER (Y/P

B

/P

R

) 2 IN terminal

RGB : Input analog RGB signal from a computer or other

source, or a component video signal (Y/P

B

/P

R

) from

video equipment.

AUDIO : Input audio signals.

(4) COMPUTER (Y/P

B

/P

R

) 1 IN terminal

DVI-I : Input analog or digital RGB signal from a computer, or

a component video signal (Y/P

B

/P

R

) from video

equipment.

AUDIO : Input audio signals.

(5) MONITOR terminal

: Connect to a computer display, etc.

(6) AUDIO OUT terminal

: Outputs audio signals.

(7) COMPUTER (Y/P

B

/P

R

) 3 IN terminal

BNC : Input G/B/R/HD/VD signal from a computer, or a

component video signal (Y/P

B

/P

R

) from video

equipment.

AUDIO : Input audio signals.

(8) CARD indicator

: Displays PC card’s status.

p.49

(9) UNMOUNT button

: Press before removing PC card.

p.49

(10) RESET switch (inside depression) : Press if CARD indicator turns red.

p.49

(11) Eject button

: Press to remove PC card.

p.49

(12) PC card slot

: Insert PC cards here.

p.49

(13) USB terminal

: Connects a commercial USB memory.

p.50

(14) CAMERA POWER terminal

: DC power supply terminal (+15 V). Reserved for future

use.

(15) VIDEO IN terminal

S-VIDEO : Input S video signals from video equipment.

AUDIO (L/R) : Input audio signals from video equipment.

VIDEO : Input video signals from video equipment.

AUDIO (L/R) : Input audio signals from video equipment.

(16) AC IN socket

: Connect the supplied power cord here.

(17) Main power switch

: AC power line ON (standby)/OFF.

(1)

(14)

(15)

(16) (17)

(2) (3)(4)

(5) (6)

(8) (9)

(10)

(11)

(13)

(12)

(7)

Removing the slot

cover

Press on the circle (“O”) while
sliding the cover in the
direction of the arrow. The
cover will come off.

CAUTION

Do not carry the projector by having the slot cover part.

Doing so may cause that cover to come off, resulting in the projector
malfunction, injury or damage.

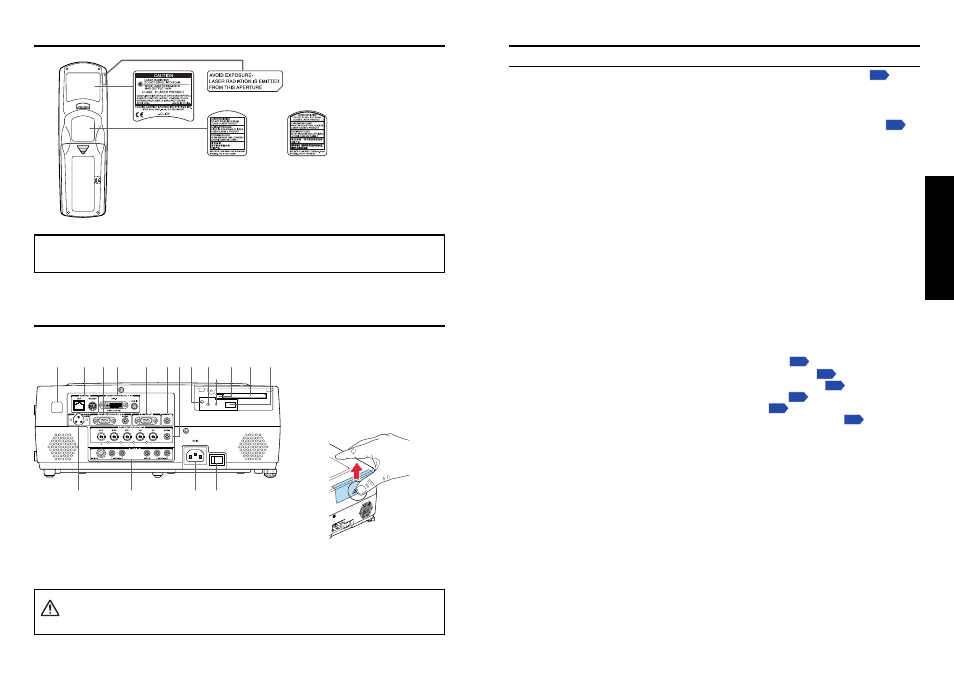

Parts on the rear panel

OR

Caution

– use of controls or adjustments or performance of procedures other than

those specified herein may result in hazardous radiation exposure.

Label locations

Parts on the rear panel (Continued)
