F SYNC REC key
Use this key to turn synchronized recording on and
off (equivalent to
L
). See 4.3.1, “Synchronized
recording” for details).
G REC MUTE key
Use this key when recording, to mute the input signal
for about four seconds and then to enter record ready
mode (see 4.3.5, “Rec mute function”).
H SEARCH keys
Use these keys to move the playback position inside
a track.
I SKIP keys
Use these keys to move between tracks when playing
back (equivalent to turning
B
). They are also used to
set the parameter values, etc.
J STOP key
Use this key to stop playback or recording (equiva-
lent to
H
).
K PAUSE key
Use this key to pause playback or recording (equiva-
lent to
J
).
L PLAY key
Use this key to start playback, or enter record mode
from record ready mode (equivalent to
I
).
2.3.1 Use of the remote control unit
When using the remote control unit, make sure:
• There is a clear unobstructed path between the
remote control unit and the remote sensor
7
on
the main unit.
• The remote control unit is located within 5 m
(15 ft.) of the main unit, and is pointing at approxi-
mately right angles (±30°) to the front panel.

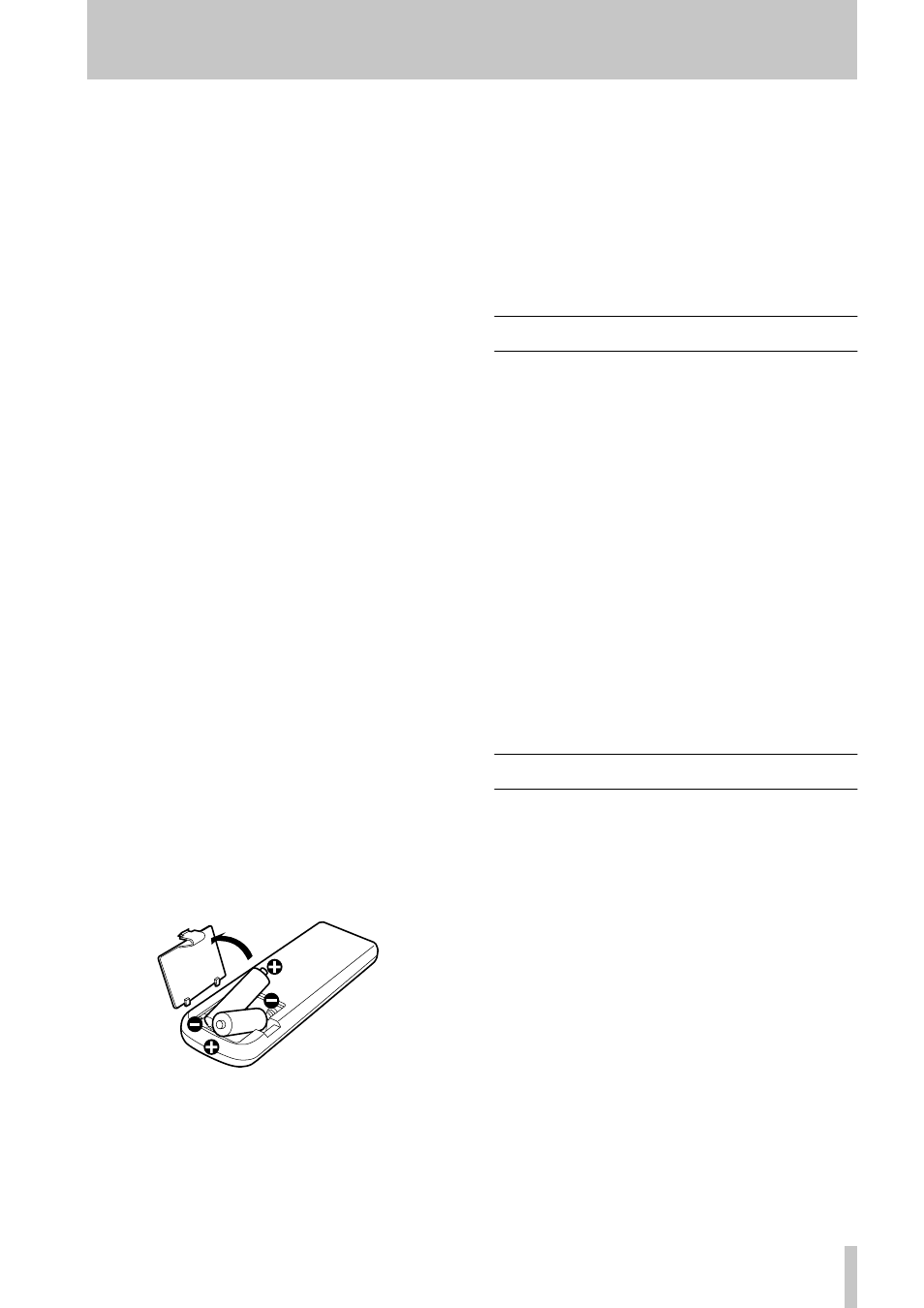

When fitting or replacing the batteries:
• Always make sure that both batteries are replaced
together. Do not mix old and new batteries.
• Do not mix batteries of different types.
• Always make sure that the batteries are located
with the correct polarity (the positive terminals of
the batteries should match the + markings inside
the battery compartment, and the negative termi-
nals should match the
– markings).
• If you are not going to use the remote control unit
for an extended period of time, remove the batter-
ies. Old batteries can leak, casing damage to the
remote control unit.
• Always dispose of old batteries in the way recom-
mended by your local garbage disposal authorities.
2.4 Connections
The following should be noted when you connect the
unit to other equipment.
It is possible to connect the unit’s DIGITAL
COAXIAL IN
P
and DIGITAL OPTICAL IN
Q
to
other equipment at the same time. However, the unit
can receive signals from only one digital input at a
time.
Audio signals output from the unit are output from
the
ANALOG OUT
O
jacks, as well as from the
DIGITAL COAXIAL OUT jack
P
and DIGITAL
OPTICAL OUT connector
Q
simultaneously.
If the ANALOG IN jacks
N
are connected, it is pos-
sible to select a “mix mode”, where the ANALOG IN
signals are mixed with the digital audio signals at
either the
COAXIAL or OPTICAL input. The digital
audio signal is attenuated (cut) by 12 dB when this
mix takes place.
2.5 Timer operations
The unit can use its internal clock to start and stop
playback or recording at pre-determined times.
2.5.1 Setting the clock
1 When the unit must be in standby mode
(power connected but not turned on), and if
the time has not been set, the display shows
Clock Adjust in dimmed characters.
2 Press the MENU key (
9
or
7
). The display
lights, and shows CLOCK ADJ ? .
3 Press the MULTI JOG control
B
or the ENTER
key on the remote control unit
8
. The “hours”
value will start flashing.
4 Turn the MULTI JOG control or use the remote
control unit SKIP keys
I
to set the current
hour.
