Chapter 3: Replacing Pre-Installed Components

3.8

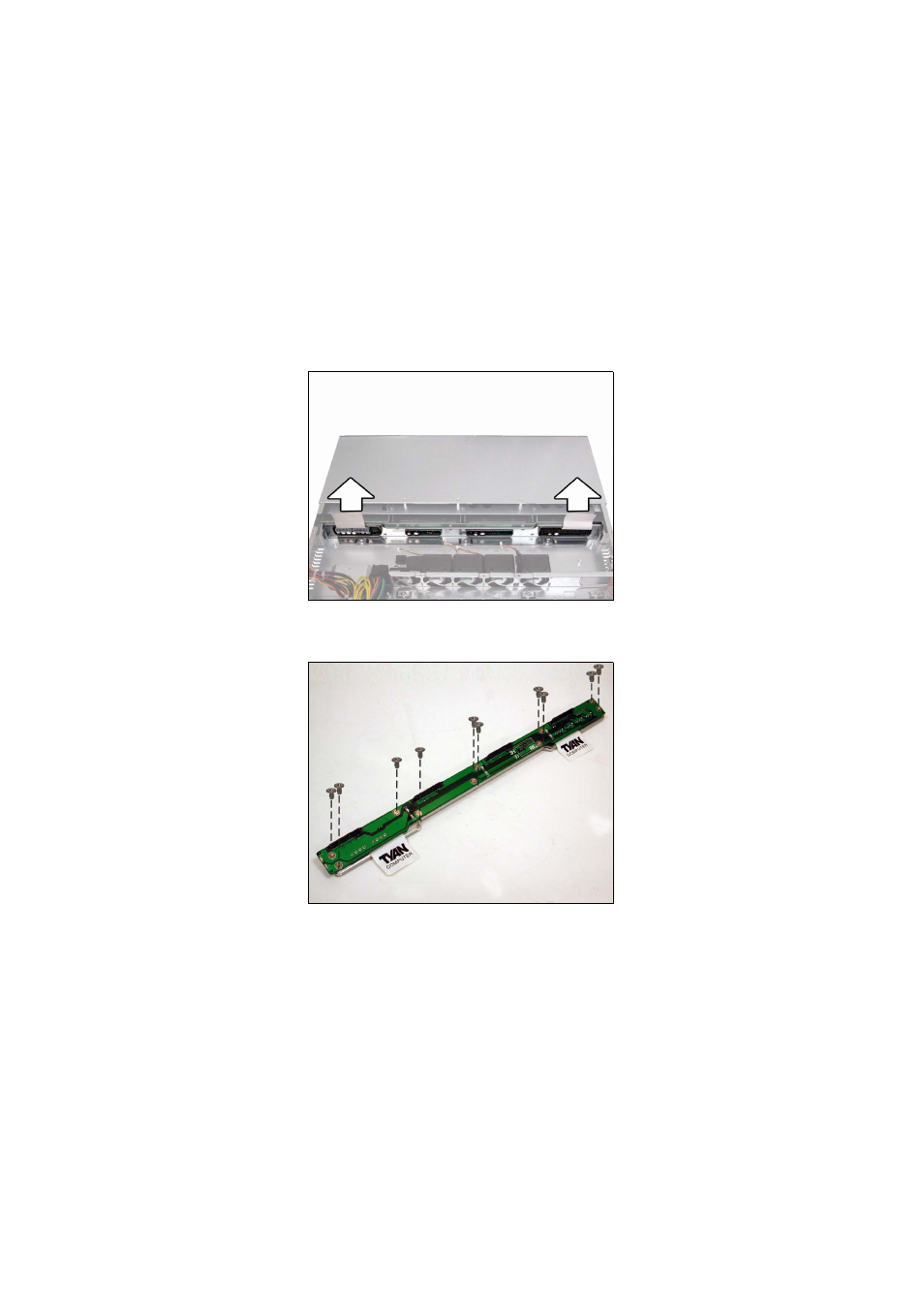

Replacing the SATA Backplane

1. After removing the M1012 adapter board, disconnect

those cables connected to the SATA backplane, including
SATA and power cables.

2. Grab the two tabs to lift the SATA backplane off.

3. Remove ten screws that secure the bracket to the

adapter board.
