Chapter 2: Setting Up

27

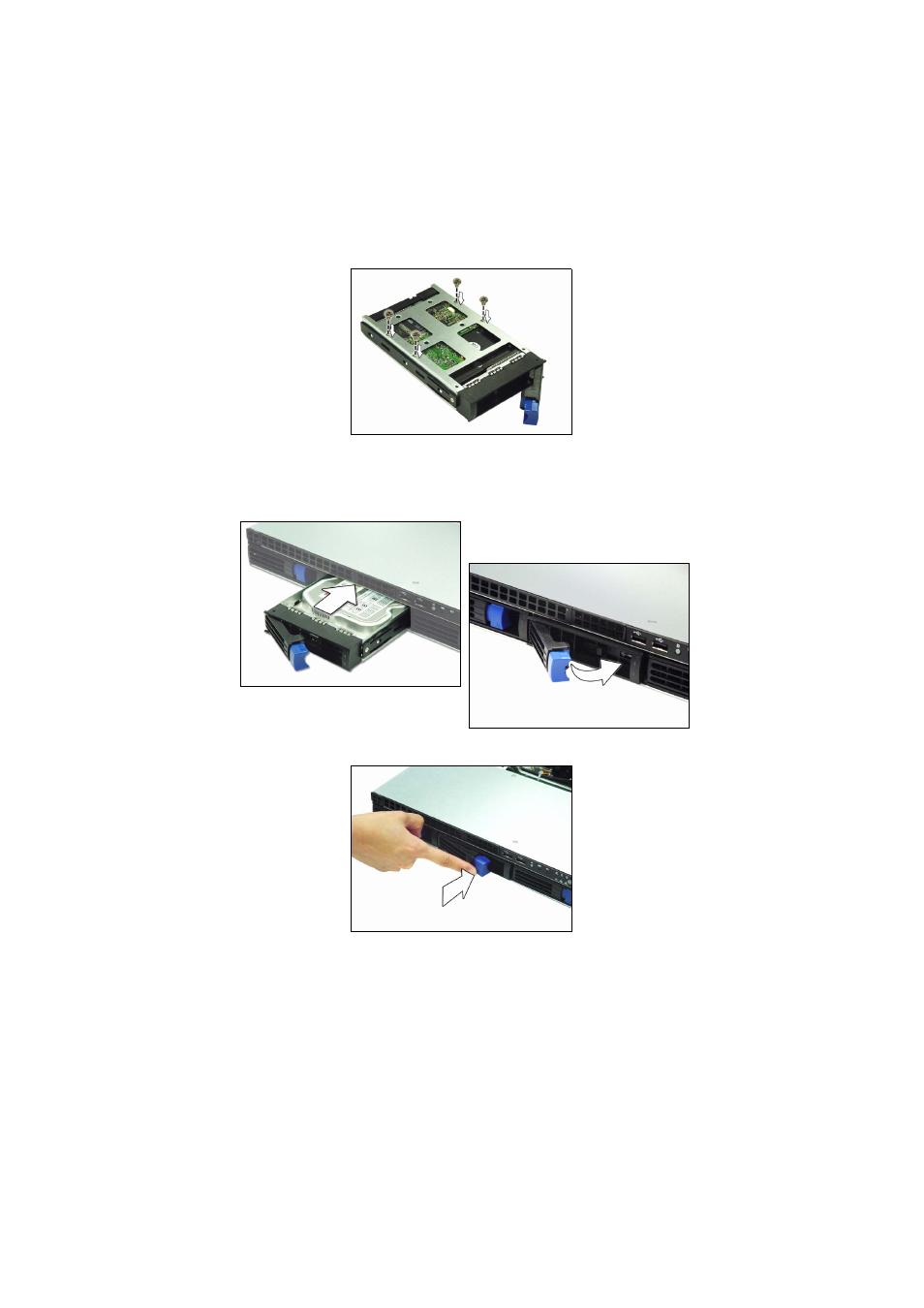

4. Using 4 HDD screws to secure the HDD.

5. Reinsert the drive tray into the chassis (A), ensuring that

the drive tray is completely inserted into the chassis (B).

6. Pressing the locking lever to secure the hard drive tray.
