Page 67

Advanced Operations
En-67
■
Operating on the AV receiver
■
Operating on the remote controller
To control Zone 2, you must press ZONE2 on the remote
controller first.
Adjusting the Volume for Zone 2
■
Operating on the remote controller
■
Operating on the AV receiver
If your Zone 2 speakers are connected to a receiver or
integrated amplifier in Zone 2, use its volume control to
adjust the volume.
Muting Zone 2
■
Operating on the remote controller
Tip
• To unmute, press ZONE2 followed by MUTING again. Zone can
also be unmuted by adjusting the volume.
Note
• Only analog input sources are output from the ZONE 2 LINE
OUT jacks and ZONE 2 L/R terminals. Digital input sources are
not output. If no sound is heard when an input source is selected,
verify that the source is connected to an analog input.
• You cannot select different AM or FM radio stations for your
main room and Zone 2. The same AM/FM radio station will be
heard in each room. Namely, if you have selected an FM station
for the main room, that station will also be output in Zone 2.
• When you have selected NET or USB as the input selector, the
last selector selected will be set for Main room and Zone 2.
• When Zone 2 is activated and its input selector is selected, the
power consumption of standby mode slightly increases.
• While Zone 2 is on,
functions will not work.
• When setting the AV receiver to standby mode while Zone 2 is
active, the Z2 indicator is dimly lit.
• Activating Zone 2 in the main room when the listening mode is
set to Pure Audio (European, Australian and Asian models)
will automatically switch it to Direct.
• “AUX”, “EXTRA1” and “EXTRA2” cannot be selected as input
sources for Zone 2.
• When “AUX”, “EXTRA1” or “EXTRA2” is the input source of
Main room and Zone 2 is set to share the same source, no sound
will be output from Zone 2.

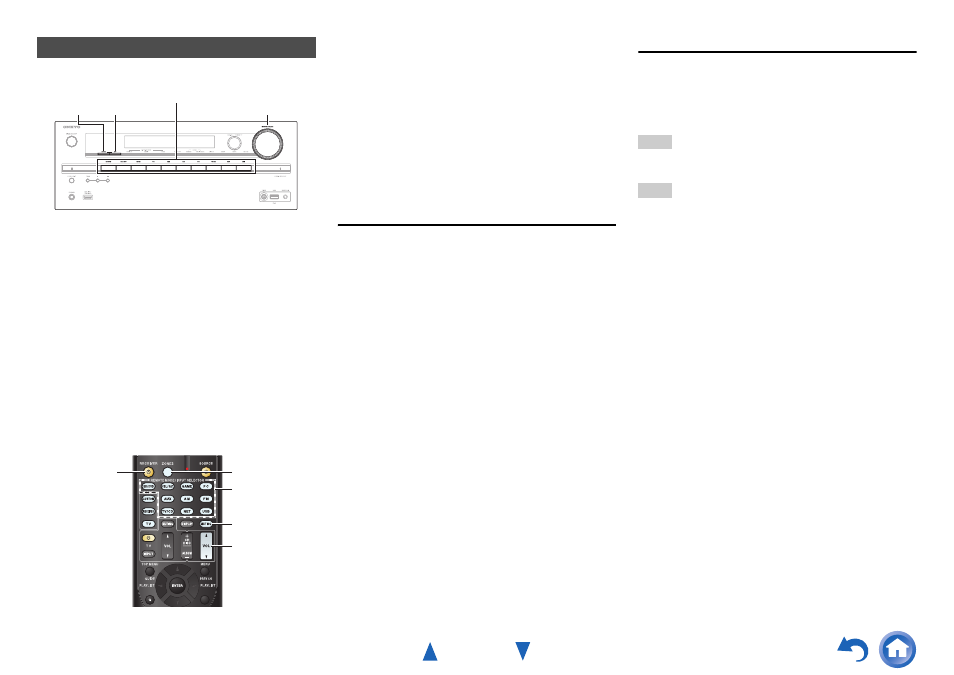

Controlling Zone 2 Components
1
To turn on Zone 2 and select an input source, press
ZONE 2 followed by an input selector button within
8 seconds.
Zone 2 turns on, the Z2 indicator lights on the AV
receiver’s display.
To select the same source as the main room’s, press
ZONE 2 twice. “Z2 Sel: Source” appears on the AV
receiver’s display.
2
To turn off Zone 2, press
OFF.
The zone is turned off.
ZONE 2 OFF
MASTER VOLUME
Input selector buttons
RECEIVER
ZONE2
INPUT
SELECTOR
VOL /
MUTING
1
Press
ZONE2, then point the remote controller at
the AV receiver and press
RECEIVER.
Zone 2 turns on, the Z2 indicator lights on the AV
receiver’s display.
2
To select an input source for Zone 2, press
ZONE2,
followed by an
INPUT SELECTOR button.
3
To turn off Zone 2, press
ZONE2, followed by
RECEIVER.
The zone is turned off.
1
Press
ZONE2.
2
Use
VOL / .
1
Press
ZONE 2 (the Z2 indicator on the AV
receiver’s display flash).
2
Use
MASTER VOLUME control within 8 seconds.
1
Press
ZONE2 followed by MUTING.
