Connections
En-17

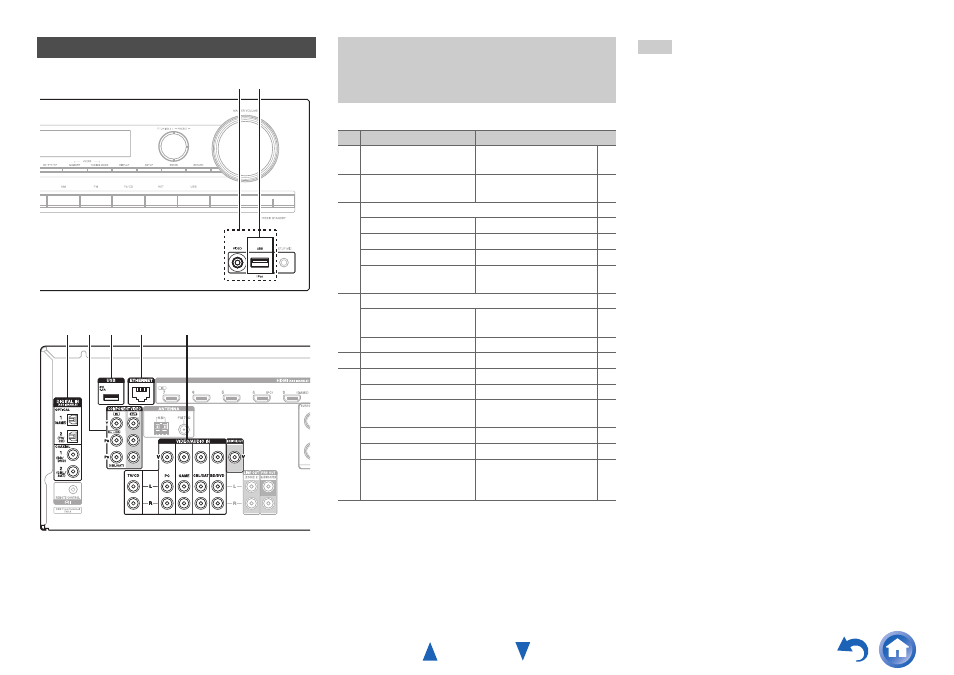

Connect your components to the appropriate jacks. The
default input assignments are shown below. See
“Connection Tips and Video Signal Path” for more
information (
).
✔: Assignment can be changed (
Note
*1
When USB input is selected, you can input video signals from
the VIDEO jack. Video signals input from VIDEO will be
output from the MONITOR OUT and HDMI output jacks.
*2
Do not connect the AV receiver’s USB port to a USB port on
your computer. Music on your computer cannot be played
through the AV receiver in this way.
*3
Only front-panel USB input is compatible with iPod/iPhone.
*4
Connect a turntable (MM) that has a phono preamp built-in. If
your turntable (MM) doesn’t have it, you’ll need a
commercially available phono preamp.
If your turntable has a moving coil (MC) type cartridge, you’ll
need a commercially available MC head amp or MC
transformer as well as a phono preamp. See your turntable’s
manual for details.
• With connection
, you can enjoy Dolby Digital and
DTS. (To listen in Zone 2 as well, use
and
.)
• With connection
, you can listen audio from the
external components while you are in Zone 2.
• With connection
, if your Blu-ray Disc/DVD player
has both the main stereo and multichannel outputs, be
sure to connect the main stereo.
Connecting Your Components
The on-screen menus appear only on a TV that is
connected to the
HDMI OUT MAIN. If your TV is
connected to other video outputs, use the AV
receiver’s display when changing settings.
No. Jack/Port
Components
USB, VIDEO
iPod/iPhone (video
playback)
iPod/iPhone, MP3 player,
USB flash drive
DIGITAL IN
OPTICAL 1 (GAME)
Game consoles
✔
OPTICAL 2 (TV/CD)
TV, CD player
✔
COAXIAL 1 (BD/DVD)
Blu-ray Disc/DVD player
✔
COAXIAL 2 (CBL/SAT) Satellite/cable set-top box,
RI dock, etc.
✔
COMPONENT VIDEO
IN (CBL/SAT)
Satellite/cable set-top box,
RI dock, etc.
✔
OUT
TV, projector, etc.
ETHERNET
Router
MONITOR OUT
TV, projector, etc.
BD/DVD IN
Blu-ray Disc/DVD player
CBL/SAT IN
Satellite/cable set-top box,
etc.
GAME IN
Game console, RI dock
PC IN
Personal computer
TV/CD IN
TV, CD player, cassette
tape deck, MD, CD-R,
Turntable
, RI dock
