F3S-B
10
Dimensions
Unit: mm
J

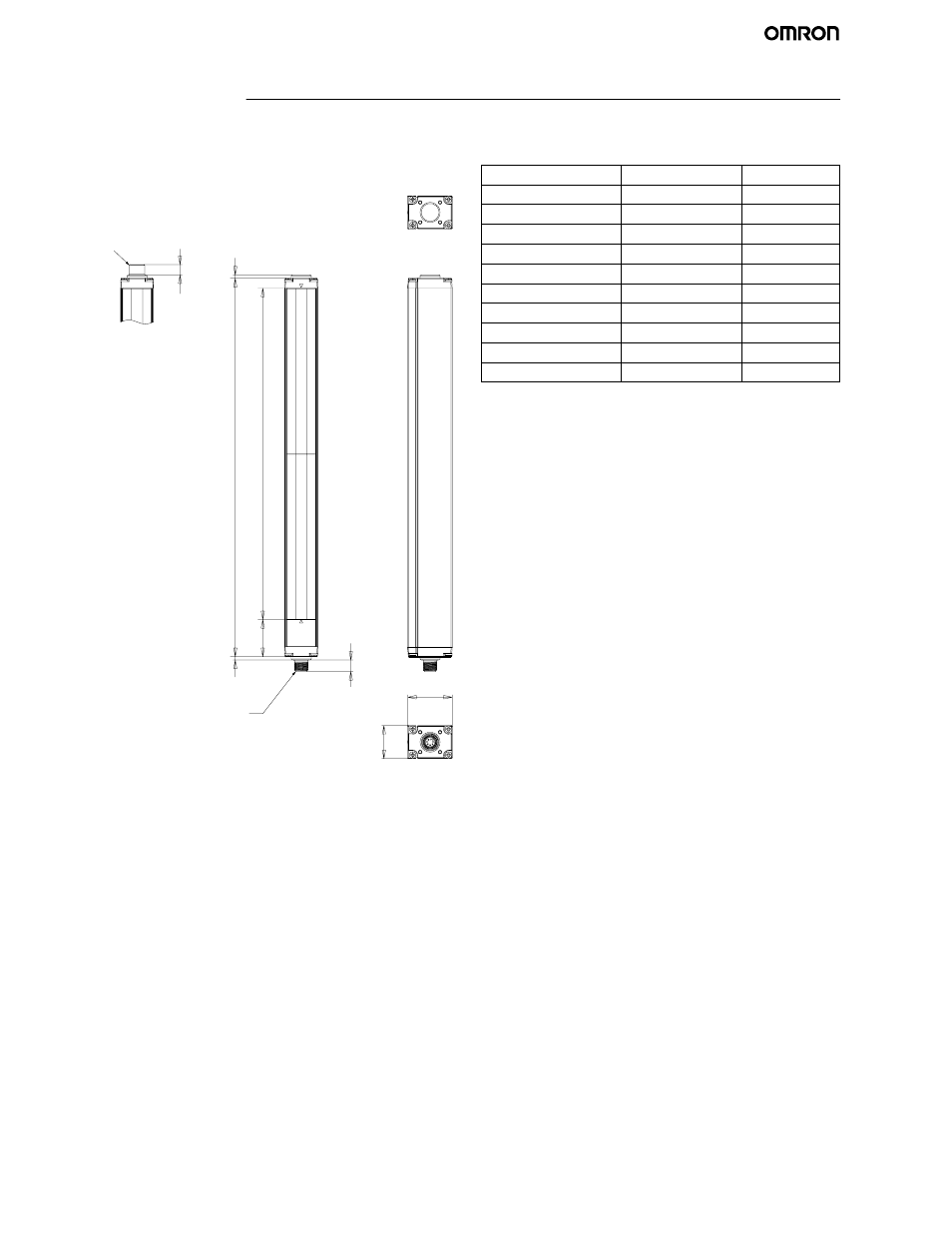

F3S-B SAFETY LIGHT CURTAIN
Part number
A (
Protective height)
B
(Full length)
F3S-B122
300
343
F3S-B182
450
493
F3S-B242
600
643
F3S-B302
750
793
F3S-B362
900
943
F3S-B422
1050
1093
F3S-B482
1200
1243
F3S-B542
1350
1393
F3S-B602
1500
1543
F3S-B662
1650
1693
M12
connector
40.3
3
34
10.5
30
3
9.5
Master Unit
M12 connector
A
B
