Installation
900-0021-01-00 Rev A 23

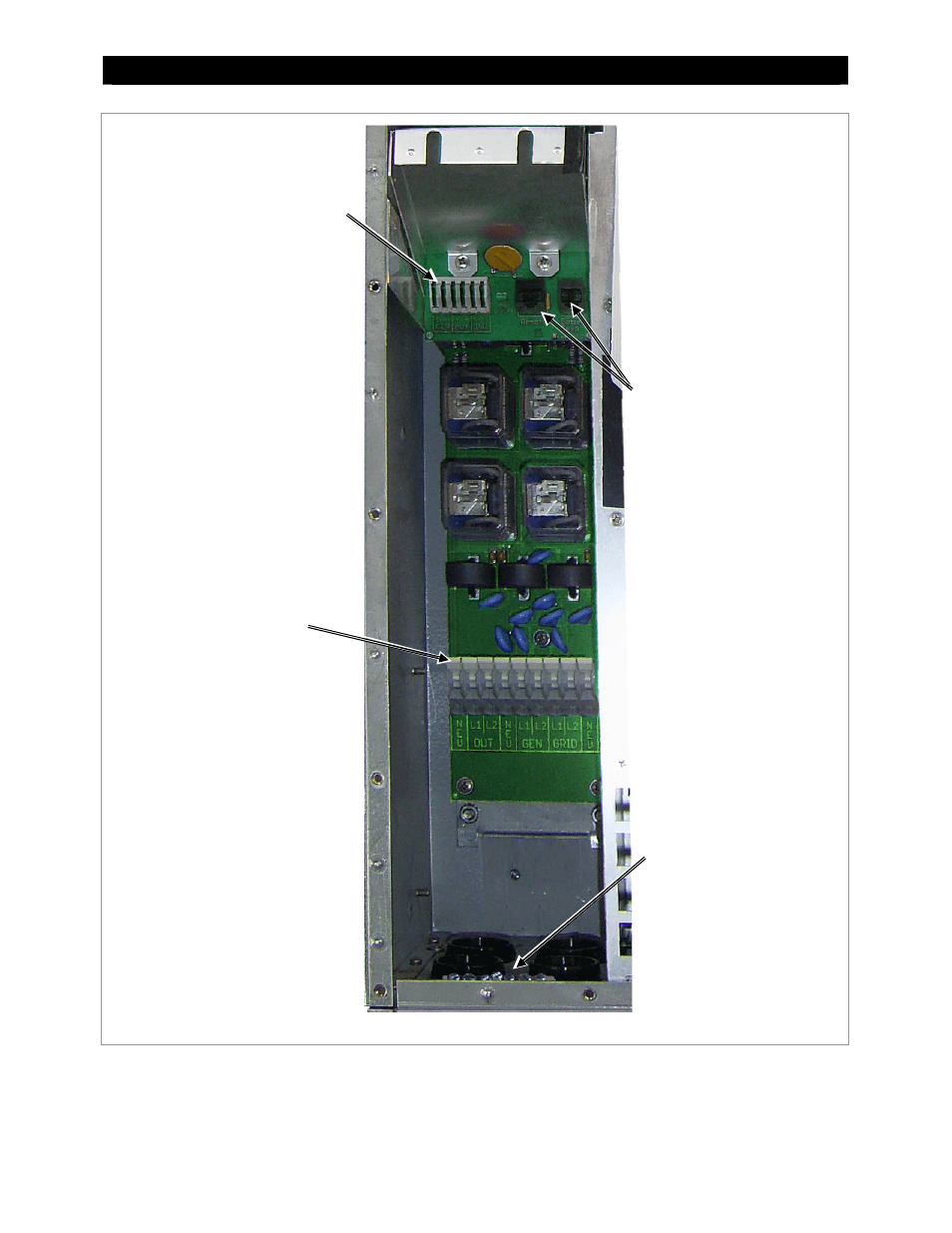

Figure 12 Terminals, Ports, and Features (continued)
REMOTE and BATTERY TEMP
JACKS: Receive the RJ45 and RJ11
plugs from the MATE3 system display
and Remote Temp Sensor. See page
28
for instructions.
AC TERMINAL BLOCK: Receives AC
input wires for two input sources (L1, L2
and neutral for each). Also receives AC
output wires (L1, L2, and neutral). All
neutral wires are electrically common.
See page 26 for instructions.
CONTROL WIRING TERMINAL BLOCK:
Receives control wires for a variety of
functions, including generator control.
See facing page for terminal descriptions.
GROUND BUS: Receives ground
wires from multiple locations.
See page 24 for instructions.
