Location and Environmental Requirements
Radian Series Inverter/Chargers must be located in a weather-proof enclosure or enclosed area. It is
not designed for exposure to water or excessive wind-blown dust and debris.
 The Radian inverter must be wall-mounted in an upright position. The inverter is not approved for
mounting in any other position or orientation.
 Recommended minimum clearance is 2 to 4 inches (5 to 10 cm) for the front and top of the inverter.
 The sides and bottom may be enclosed or obscured with no restriction when mounting other Radian Series
Inverter/Chargers or accessory devices.
 The Radian inverter will function best if operated in a temperature range of 0°C to 50°C (32°F to 122°F).
It can function in environments as cold as –40°C (–40°F) and as warm as 60°C (140°F), but it may not update
up to its listed specifications.
 The specifications are listed in the Radian Series Inverter/Charger Operator’s Manual.
Dimensions

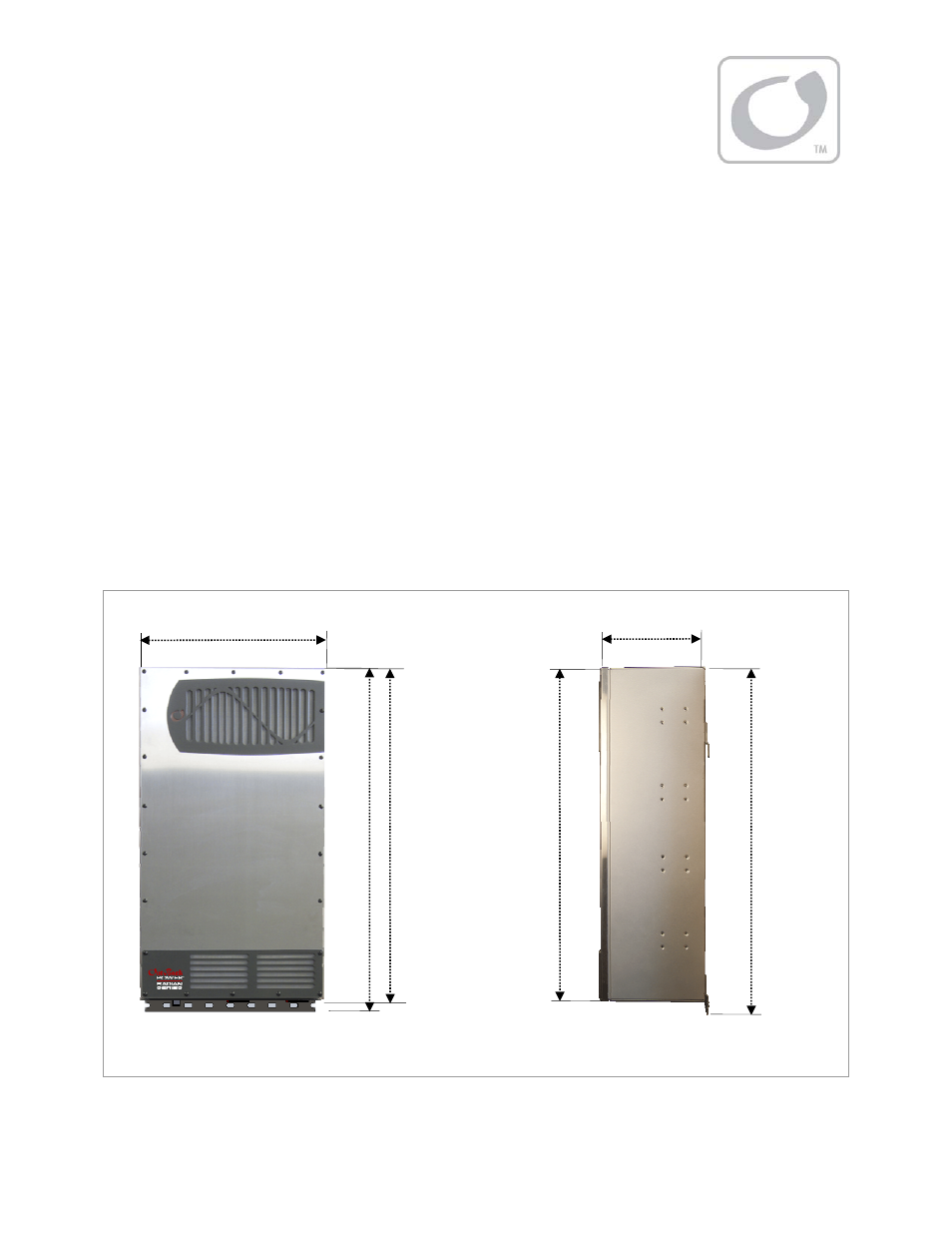

Figure 6 Dimensions
Enclosure Height
28” (71.1 cm)
Width 16” (40.6 cm)
Depth
8.75” (22 cm)
Enclosure
Height with
Flange
29.13”
(74 cm)
