Installation
20 900-0021-01-00 Rev A
Accessory Mounting

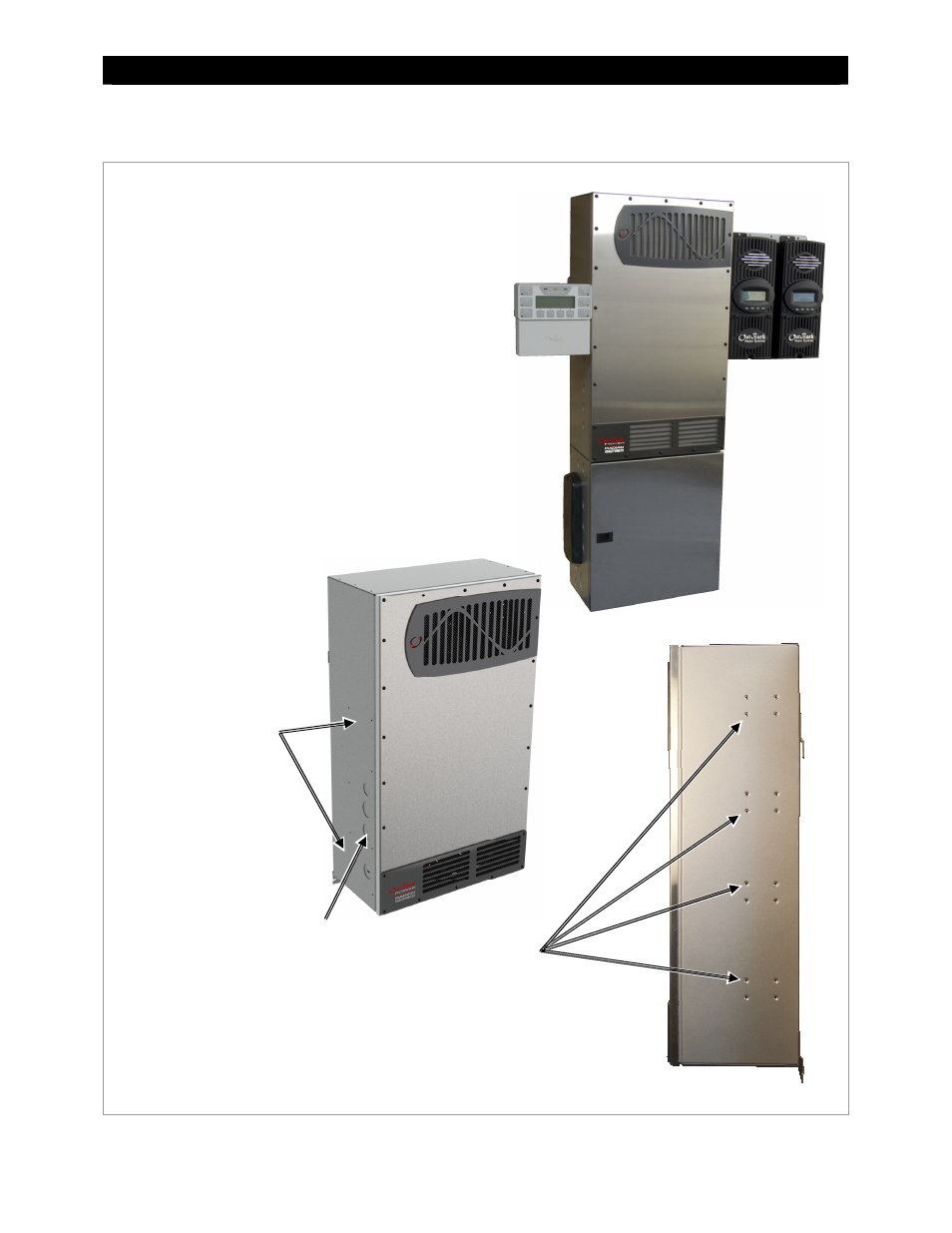

Figure 9 Mounting for Accessories
For the FLEXmax charge controller:
To fit on the Radian inverter’s right side,
the FLEXmax charge controllers require
the FW-CCB or FW-CCB2 mounting
brackets. To accommodate many
possible mounting requirements, four
sets of mounting holes have been
provided for the brackets.
For the MATE3:
To fit on the Radian inverter’s
left side, the MATE3 requires
the FW-MB3 mounting
bracket. Holes are provided on
the upper and lower left side
to attach the FW-MB3. For
more information, see the
FW-MB3 instruction sheet.
For the HUB:
To fit on the Radian inverter’s left side,
the HUB uses two mounting holes and
three knockouts.
The Radian inverters can support the mounting of
several accessories. The inverter can mount the
MATE3 system display and the HUB on its left side, and
up to two FLEXmax controllers on its right side.
The FLEXmax controllers and the HUB products can
also mount on the sides of the GSLC. (The HUB is
shown mounted to the GSLC in the picture to the
right.) For more information, see the GS LoadCenter
Installation Manual
.
The GSLC connects to the Radian inverter using four
keyhole slots. The keyhole slots fit over four screws on
the bottom of the inverter that will secure the GSLC to
the inverter when they are tightened. The GSLC
should be secured to the wall using screws or wall
anchors. The GSLC also makes a mechanical
connection to the inverter using bus bars that bolt to
the Radian’s DC terminals. Other connections are
wired as necessary.
