Oki MC860n MFP User Manual
Page 140
Installing Upgrades > 140
5.

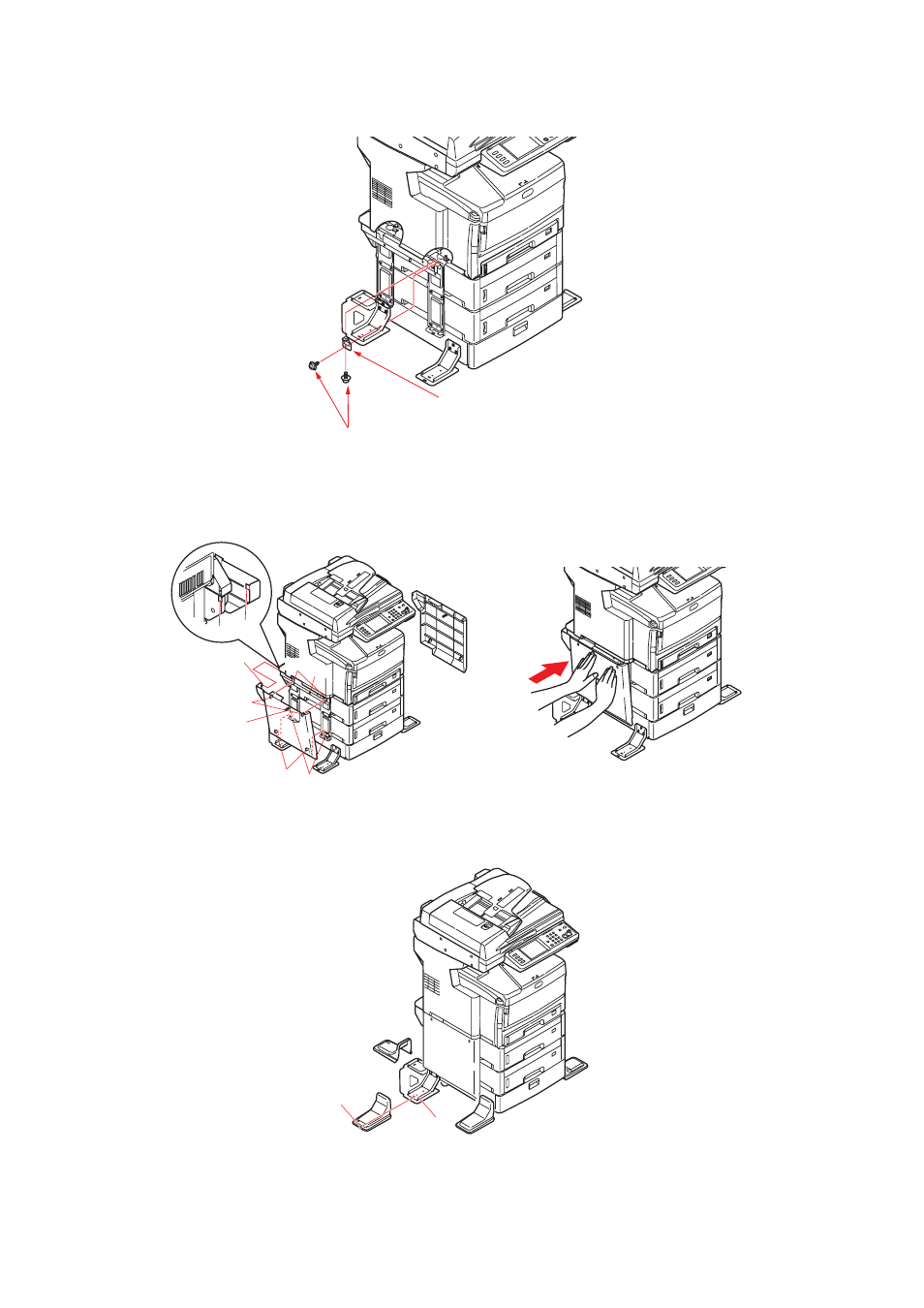

Locate plate (3), and secure into position using screws (4).
6.
Repeat Step 5 for three remaining plates.
7.
Position side panels as shown, matching up the locating lugs and sockets and then
push the panel firmly into place.
8.
Clip stabilizing foot covers into position ensuring you align locating lugs and grooves
as shown.
9.
Re-connect the power cable and switch the MFP ON.
4
3
A A
B
D
D C
C
B B
A
A
