Rear view – Oki MC860n MFP User Manual
Page 11

MFP overview > 11

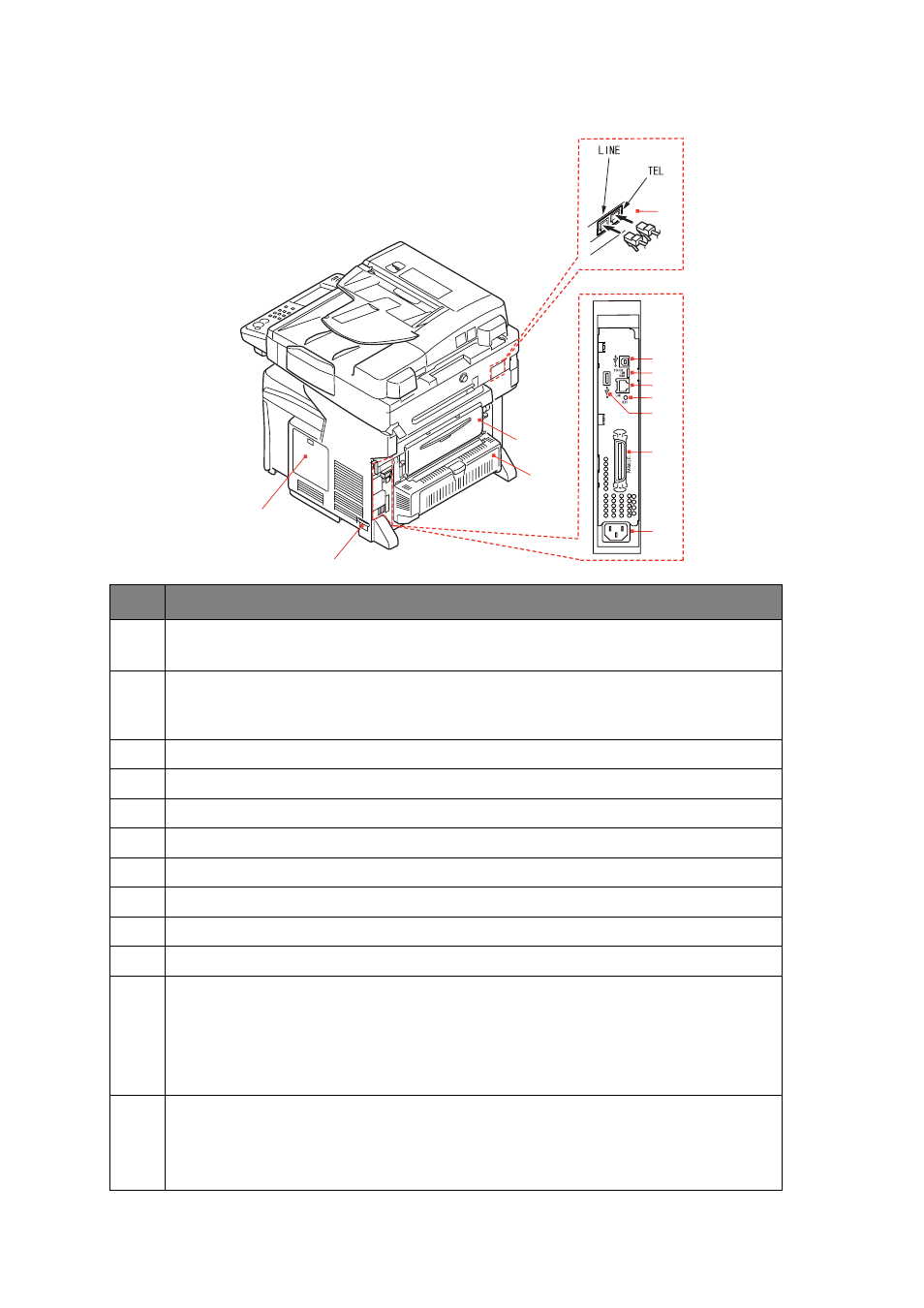

Rear view
REF.
DESCRIPTION
14
Access panel
Allows access to the hard disk drive (HDD) and to install optional memory.
15
ON/OFF power switch
Refer to “Switching Off” on page 16 for details. Always follow the correct procedure
to ensure that no HDD data is lost.
16
AC power socket
17
Parallel connector
18
USB connector (type A)
19
Test switch
20
Network connection
21
Status LEDs
22
USB connection (type B)
23
Duplex unit
24
Rear, face up stacker
This is mainly used for heavy print media. When used in conjunction with the multi
purpose feed tray, the paper path through the MFP is essentially straight. This avoids
bending the paper around curves in the paper path and enables feeding of up to
53-lb. US Bond ( 200 g/m² media. Holds up to 100 sheets of 20-lb. US Bond (75 g/
m² paper.
25
Line connection
Socket for connecting the fax machine to the telephone line.
Tel connection
Socket for connecting a telephone handset (if required).
14
15
23
24
22
21
20
19
17
16
18
25
