20

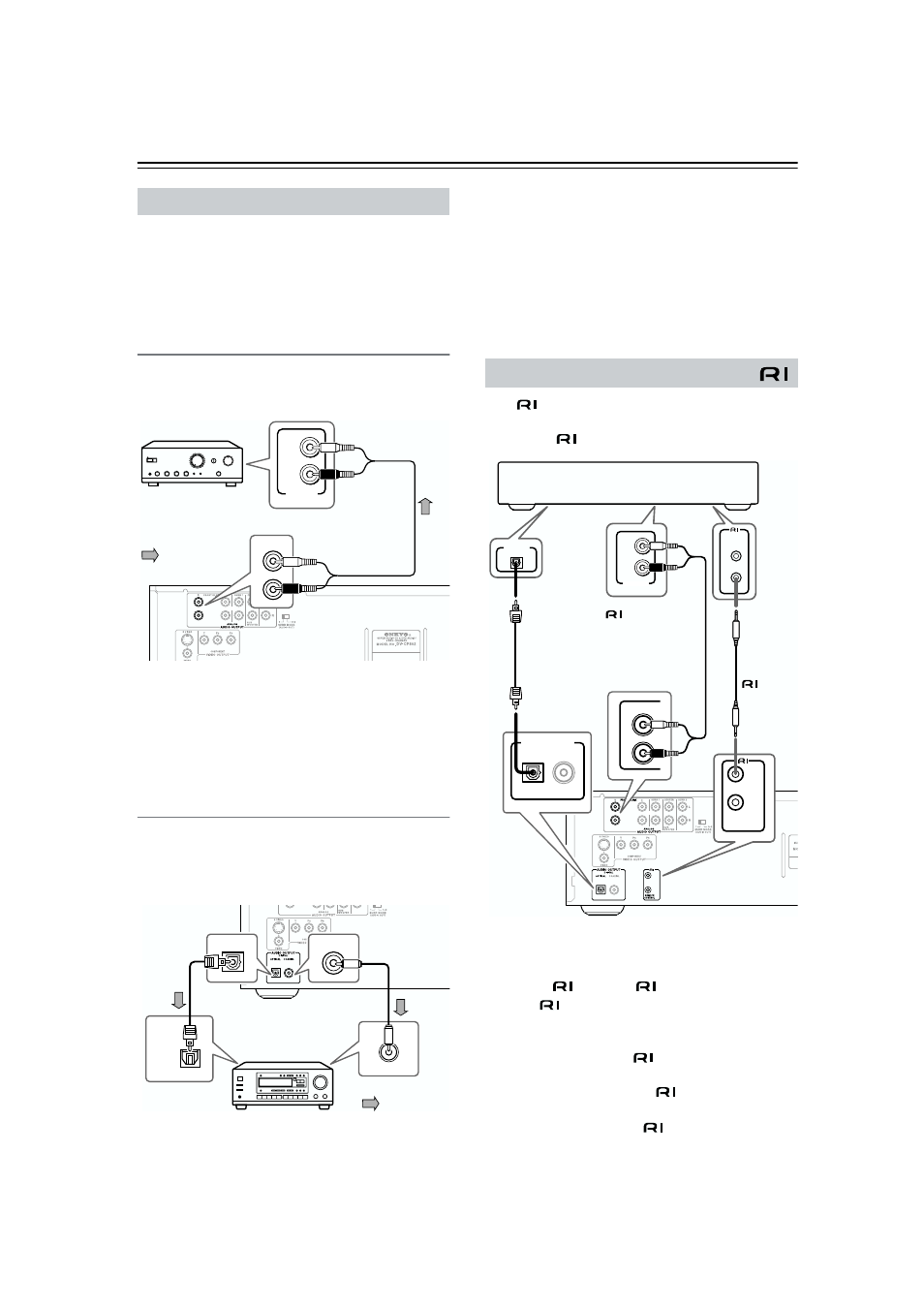

Connecting the DV-CP802—Continued
This section explains how to connect the DV-CP802 to a
stereo amp or receiver for sound quality better than that
possible with most TV’s built-in speakers. This is great
for listening to your CDs and MP3s, and DVDs and
VCDs will sound better too. You can also enjoy Dolby
Surround, if your amp supports Dolby Pro Logic.
Analog Connection
Use an RCA audio cable to connect the DV-CP802’s
ANALOG AUDIO OUTPUT to a pair of analog audio
inputs on your amp or receiver, as shown.
Notes:
• Set the Analog Audio Out setting to “2 Channel” (see
page 22, 52).
• If your amp has a built-in Dolby Pro Logic decoder, to
enjoy DVDs that bear the Dolby Surround logo, set the
Analog Audio Out 2 Channel setting to “Lt/Rt” (see
page 52).
Digital Connection
Use an optical (or coaxial) digital audio cable to connect
the DV-CP802’s OPTICAL (or COAXIAL) DIGITAL
AUDIO OUTPUT to an optical (or coaxial) digital audio
input on your amp or receiver, as shown.
Notes:
• Be sure to set the Dolby Digital Out setting to “Dolby
Digital>PCM,” and set the DTS Out setting to
“DTS>PCM” (see page 50). Otherwise an unpleasant
digital noise may be heard, which may damage your
equipment.
• The output formats for the OPTICAL and COAXIAL
digital audio outputs can be set independently (see
page 50).
• Never connect the DV-CP802 to the AC-3RF input on
a Dolby Digital receiver. The AC-3RF format is not
supported by the DV-CP802.
With (Remote Interactive) you can control the
DV-CP802 by using the remote controller supplied with
your Onkyo
-compatible AV receiver.
Notes:
• Push each plug in all the way to make a good connec-
tion.
• Use only cables for connections.
• To use you must make an analog audio connec-
tion (RCA) between the DV-CP802 and Onkyo AV
receiver, even if they are connected digitally.
• The DV-CP802 has two sockets. You can connect
either one to the Onkyo AV receiver. The other socket
is for connecting additional
-compatible compo-
nents.
• Connect the DV-CP802’s sockets to only Onkyo
components. Connecting to other manufacturer’s
components may cause them to malfunction.
Connecting a Stereo Amp
L
R
L
1
R
L
R
ANALOG
INPUT
RCA cable
Stereo amp
(white)
(white)
(red)
(red)
Signal flow
AV receiver
Signal flow
OPTICAL
COAXIAL
OPTICAL
COAXIAL
Connecting Components with
Onkyo AV receiver
L
R
REMOTE
CONTROL
L
R
ANALOG
INPUT
DIGITAL IN
OPTICAL
cable
To use you must make
an analog audio connection
(RCA) between the DV-CP802
and the other component,
even if they are connected
digitally.
OPTICAL COAXIAL
DIGITAL
OPTICAL COAXIAL
AUDIO OUTPUT
(Supplied)
L
1
R
REMOTE
CONTROL
