Connecting the cables, Caution – Oki S700 User Manual
Page 14
INSTALLATION > 14

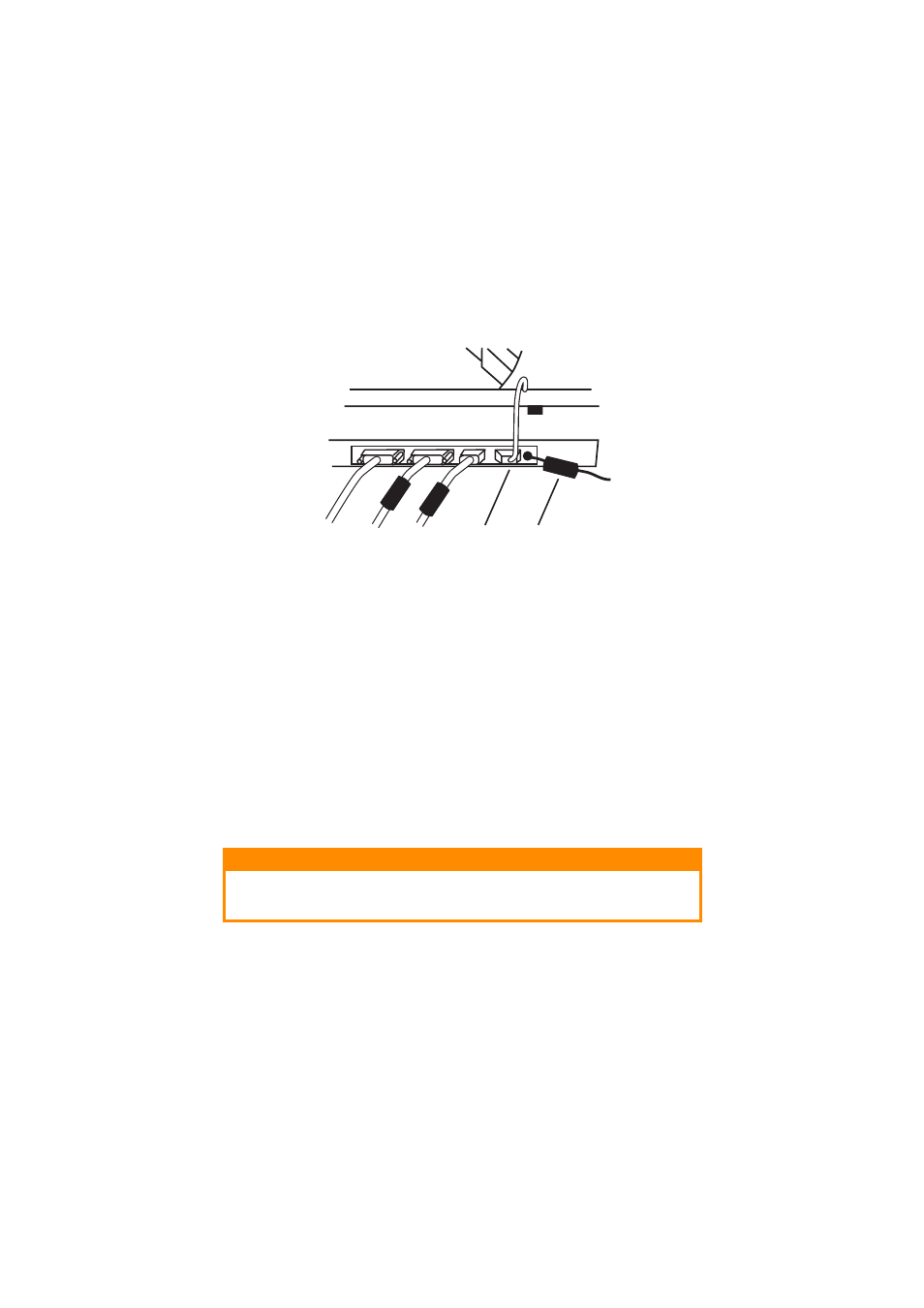

CONNECTING THE CABLES
Connect the cables as shown.
1.
Parallel printer cable – to parallel data port on printer.
2.
Parallel PC cable – to PC parallel port (LPT1). Only required if
you also wish to print from your PC. Printing is accomplished
normally from your PC via LPT1 (the primary parallel printer
port). Data passes through the scanner, unchanged, to the
printer. This operation is called “Pass Through Mode.”
3.
USB cable – to PC’s USB port. Only required for scanning
images into PC. Does not support printing from PC via USB.
4.
ADF cable – attached to ADF if you have one.
5.
Power cable – to AC power via external power unit provided.
Do NOT use any other power unit.
CAUTION!
Do not connect AC power to the S700 until you have unlocked the
scanning head, otherwise damage to the Scancopier may result.
1
2
3
4
5
