8

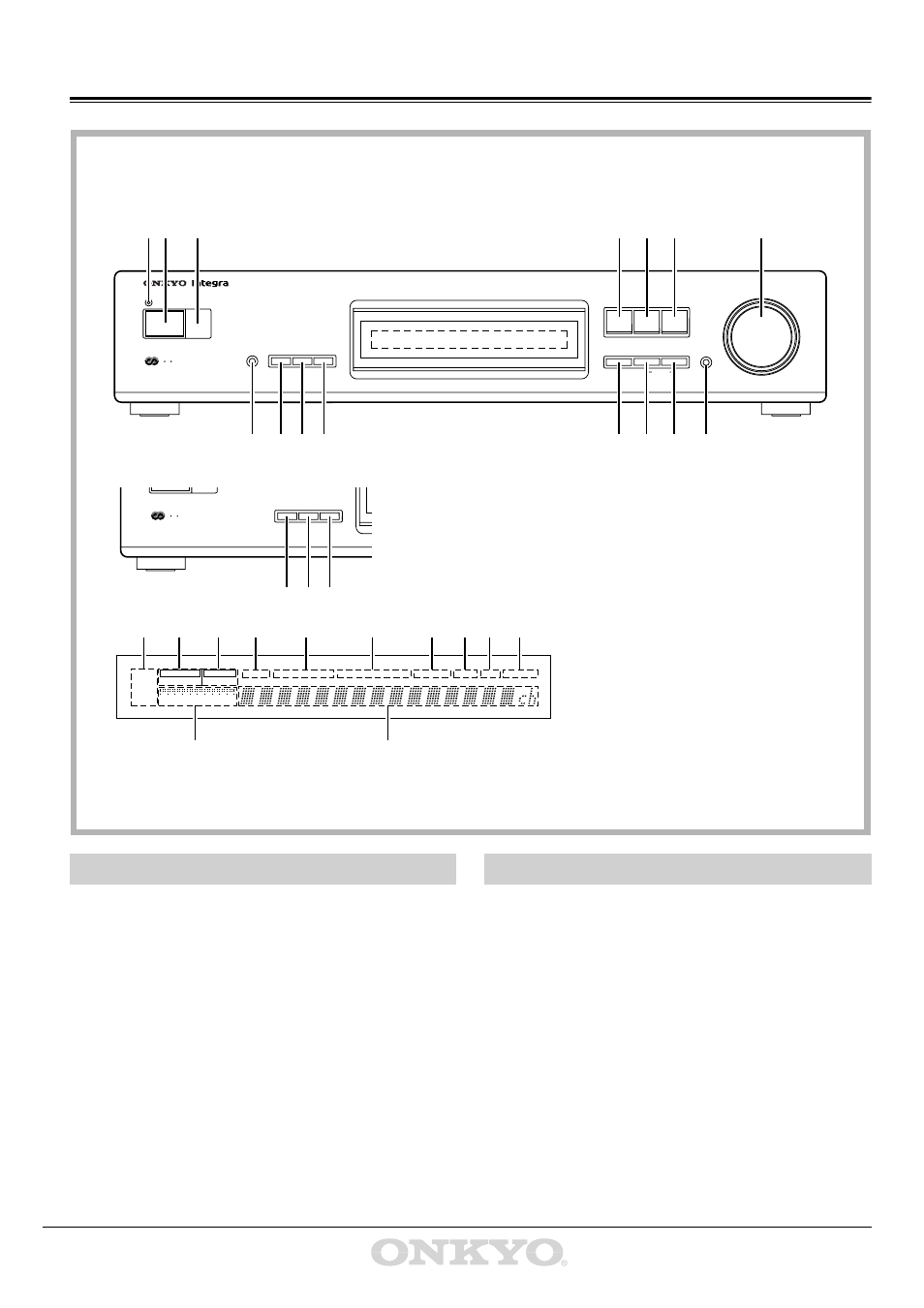

Control positions and names
POWER
STAND-BY/ON
RDS IF BAND HI-BLEND DIMMER MEMORY MODE
CLEAR
PRESET/
TUNING
PRESET / TUNING
FM STEREO TUNER T-4711
R D S
DISPLAY GROUP SCAN
8 10 11
DIMMER MEMORY MODE
CLEAR
DISPLAY GROUP SCAN
POWER
STAND-BY/ON
RDS BAND IF BAND HI-BLEND PRESET/
TUNING
PRESET / TUNING
FM STEREO / AM TUNER T-4711
R D S
1
9 8 10 11 12 13 14 15
2 3 4 5 6 7
Front Panel
The button positions may differ slightly depending on the country of purchase.
(For models other than European models)
(For European models)
NOTE:
If there is a protective film on the surface of the display, which is making it difficult to read the display, remove it.
For more information about buttons, turn to the page number in the [ ].
TIMER
W.DAY
W.END
ONCE
SLEEP
A B TP TA
SIGNAL STRENGTH
ANTENNA RDS TUNED STEREO MONO NORMAL NARROW HI-BLEND AUTO FINE MEMORY
a b c d e f g h i j
k l
1. Power Indicator
2. Power Button (POWER) [9, 18]
3. Remote Control Sensor [4]
4. Display Button (DISPLAY) [12, 14]
5. Group Button (GROUP) [10, 11]
6. Scan Button (SCAN) [13, 14]
7. Preset/Tuning Dial (PRESET/TUNING) [10, 11, 15]
8. RDS Button (RDS) [13, 14]
9. Band Selector Button (BAND) [10]
(* Not available on the European model)
10.IF Bandwidth Selector Button (IF BAND) [12]
11.Hi-Blend Selector Button (HI-BLEND) [12]
12.Dimmer Button (DIMMER) [11]
13.Memory Button (MEMORY) [10, 11, 15]
14.Mode Button (MODE) [11, 12, 15, 18, 19]
15.Preset/Tuning Button (PRESET/TUNING) [10, 11, 15]
Front Panel
a. Timer Mode Indicators
b. Antenna Indicators
c. RDS Indicators
d. Tuned Indicator
e. Stereo/Mono Indicator
f. IF-Bandwidth Indicator
g. Hi-Blend Indicator
h. Auto Tuning Indicator
i. Fine Tuning Indicator
j. Memory Indicator
k. Signal strentgh level Display
l. Multi Display
The display and indicator
