4
Before using this unit

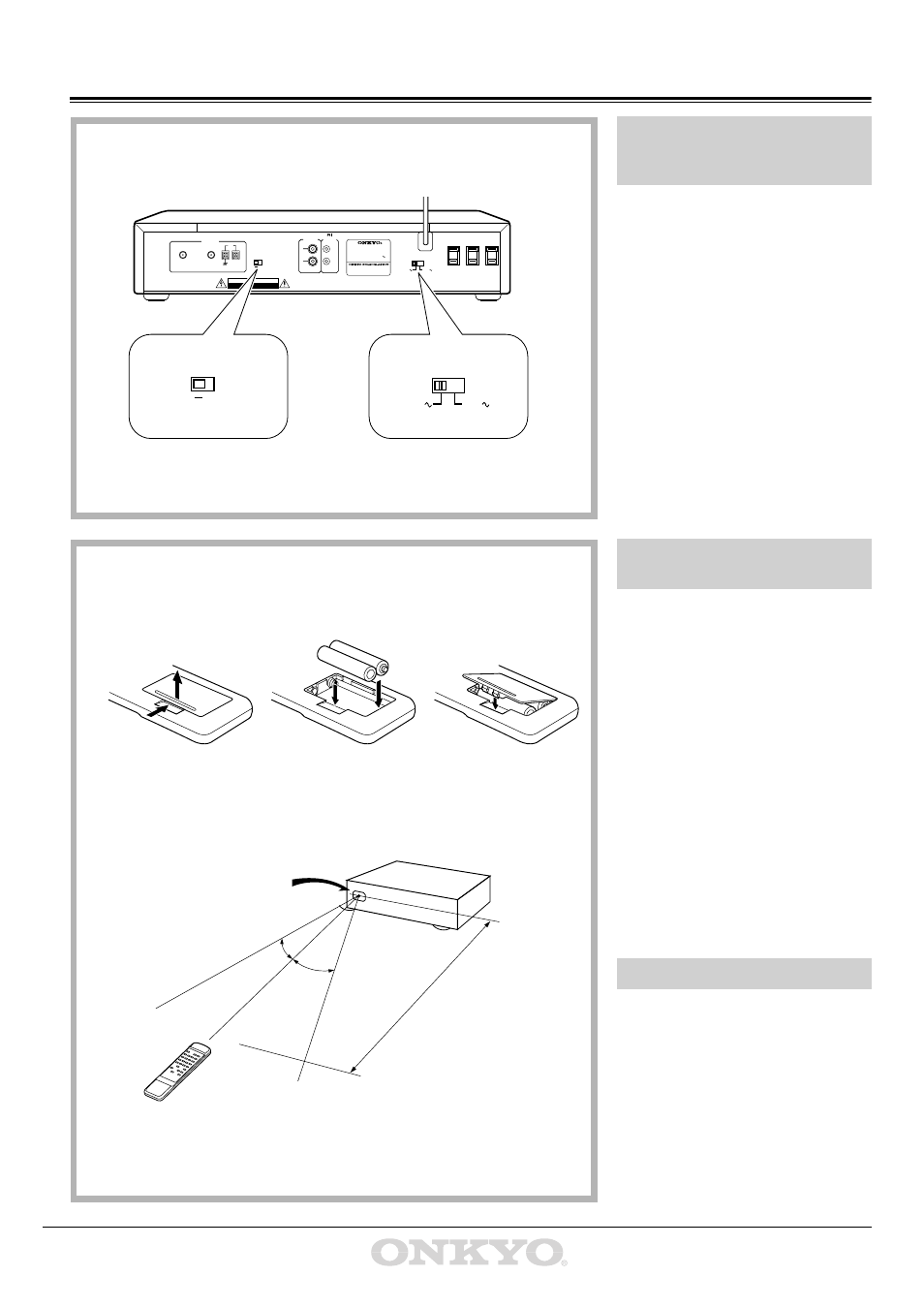

Voltage selector
1. Determine the proper voltage for your area:
220 – 230 V or 120 V.
2. If the preset voltage is not correct for your
area, insert a screwdriver into the groove
in the switch. Slide the switch all the way
to the right (120 V) or to the left (220 –
230 V), whichever is appropriate.
Tuning step frequency
Wooldwide models are equipped with a
switch that controls the AM (9 kHz/10 kHz)
and FM (50 kHz/200 kHz) bands tuning
steps. Please set this switch to match the tun-
ing step frequency in your area.
U.S.A.
: AM 10 kHz, FM 200 kHz
(25 kHz, Fine mode)
Other areas : AM 9 kHz, FM 50 kHz
(25 kHz, Fine mode)
Remove the battery compartment cover by
opening it as shown in the illustration. Load
three R6 (UM-3) AA size batteries into the
remote control with the plus (+) and minus
(–) terminals positioned as indicated by the
diagram inside the battery compartment and
close the cover.
● Remove dead batteries immediately to
avoid corrosion damage.
● To avoid potential corrosion damage,
never mix old batteries with new ones.
● The manganese batteries supplied with
this unit have a service life of approxi-
mately six months, depending on fre-
quency of usage.
● This unit comes equipped with R6 (UM-
3) AA manganese batteries, but we rec-
ommend that long-life alkaline batteries
LR6 (AM-3) AA be used when replacing
the batteries.
The following information will help you get
optimum use from the remote control.
● Place this unit away from direct bright
light, which can prevent proper operation
of the remote control.
● Make sure audio rack doors do not have
coloured glass. If this unit is placed
behind such a door, this may prevent
proper remote control operation.
● Using other remote controls in the same
room as this unit remote control may
cause interference.
Setting the voltage selector
and Tuning step frequency
(Worldwide models only)
Inserting the remote control
batteries
Using the remote control
VOLTAGE SELECTOR
220-230V 120V
FREQ. STEP
USA OTHER
WARNING
RISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
AVIS
OUTPUT REMOTE CONTROL
L
R
FM STEREO / AM TUNER
MODEL NO. T-4711
RATING: AC120/220-230V 50/60Hz 12W
2-1,NISSHIN-CHO,NEYAGAWA-SHI,OSAKA,
JAPAN
MADE IN JAPAN AC OUTLETS
SWITCHED TOTAL 500W MAX.
A B FM75 Ω
ANTENNA
AM
FREQ. STEP
USA OTHER
VOLTAGE SELECTOR
220-230V 120V
1 2 3
-
+
+
-
-
30˚
30˚
T-4711
Please insert the batteries into the remote control according to the illustration.
Remote control
Remote control sensor
approx. 5m
