3. Installation
RuggedCom® RuggedSwitch®
16
RSG2300 Installation Guide Rev 110

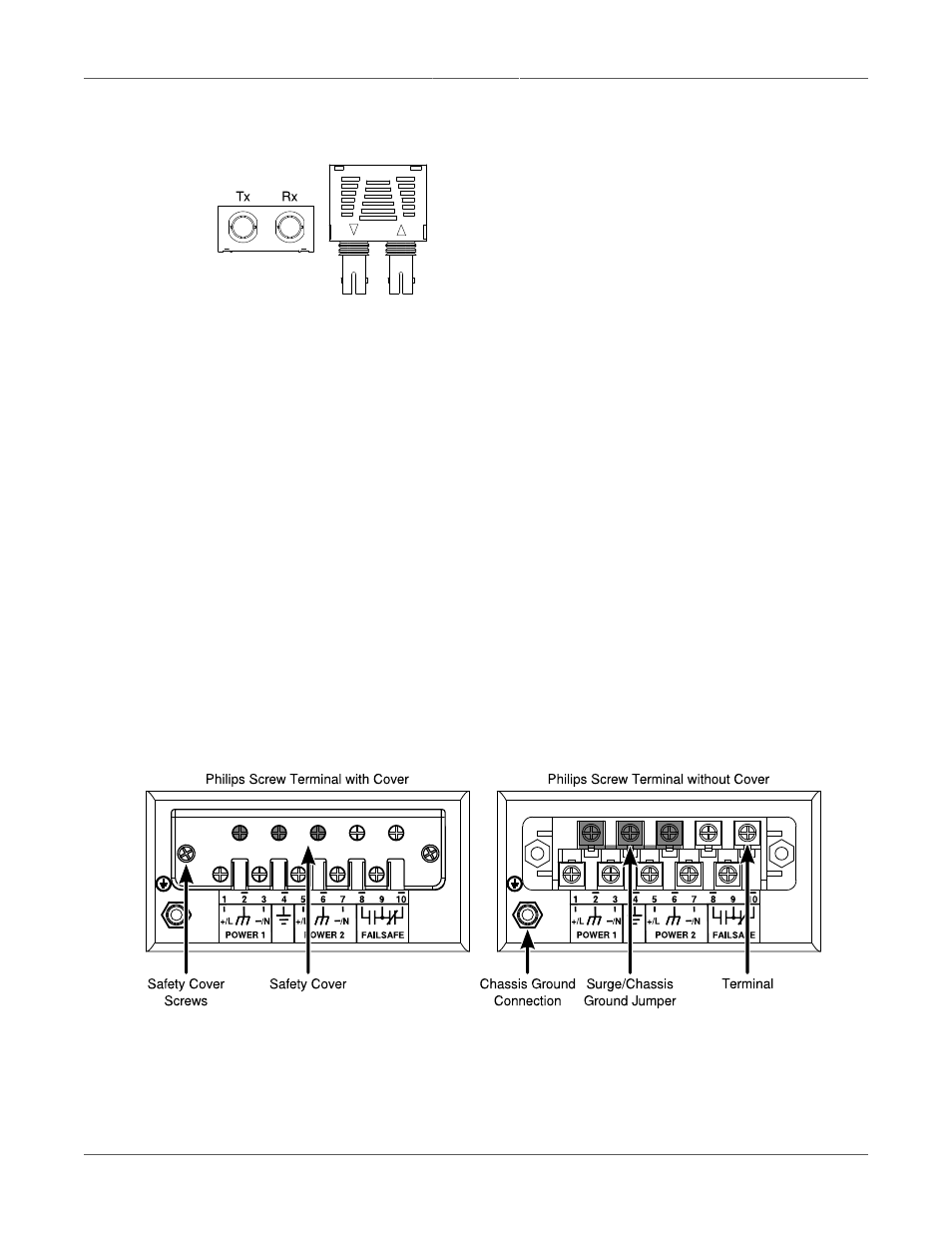

Figure 3.11. 100FX ST connector
3.2.3. Power Supply Wiring And Grounding
The RSG2300 supports a single AC or DC power supply, PS1, and a separate 48VDC power
supply, PS2, which provides power to the PoE ports.
The connections for PS1, PS2 and the fail-safe relay are located on the terminal block as shown
in
Figure 3.12, “RS2000 Series Phillips Screw Terminal Block”
and
.
The RSG2300 can be equipped with either a Phillips Screw Terminal Block or a Phoenix Pluggable
Terminal Block. The Phillips Screw Terminal Block has Phillips screws with compression plates,
allowing either bare wire connections or crimped terminal lugs. We recommend the use of #6 size
ring lugs to ensure secure, reliable connections under severe shock or vibration. Both terminal
blocks have a safety cover which must be removed via two Phillips screws before connecting
any wires. The safety cover must be re-attached after wiring to ensure personnel safety. Refer
to
Table 3.1, “RSG2300 Power Terminal Block Connection Description”
for a description of each
terminal. Refer to
Section 3.2.3.1, “AC Power Supply Wiring Examples RSG2300”
“DC Power Supply Wiring Examples RSG2300 and RSG2300P”
Power Supply Wiring Example RSG2300 and RSG2300P”
for power supply wiring examples.
Figure 3.12. RS2000 Series Phillips Screw Terminal Block
