1. Product Overview
RuggedCom® RuggedSwitch® 10 RSG2300 Installation Guide Rev 110
• Convenient port status indicators conveying Link/Activity, Duplex, or Speed via the Mode push-
button (toggles between the three display modes)
• System reset via the Mode push-button (if held for 5 seconds)

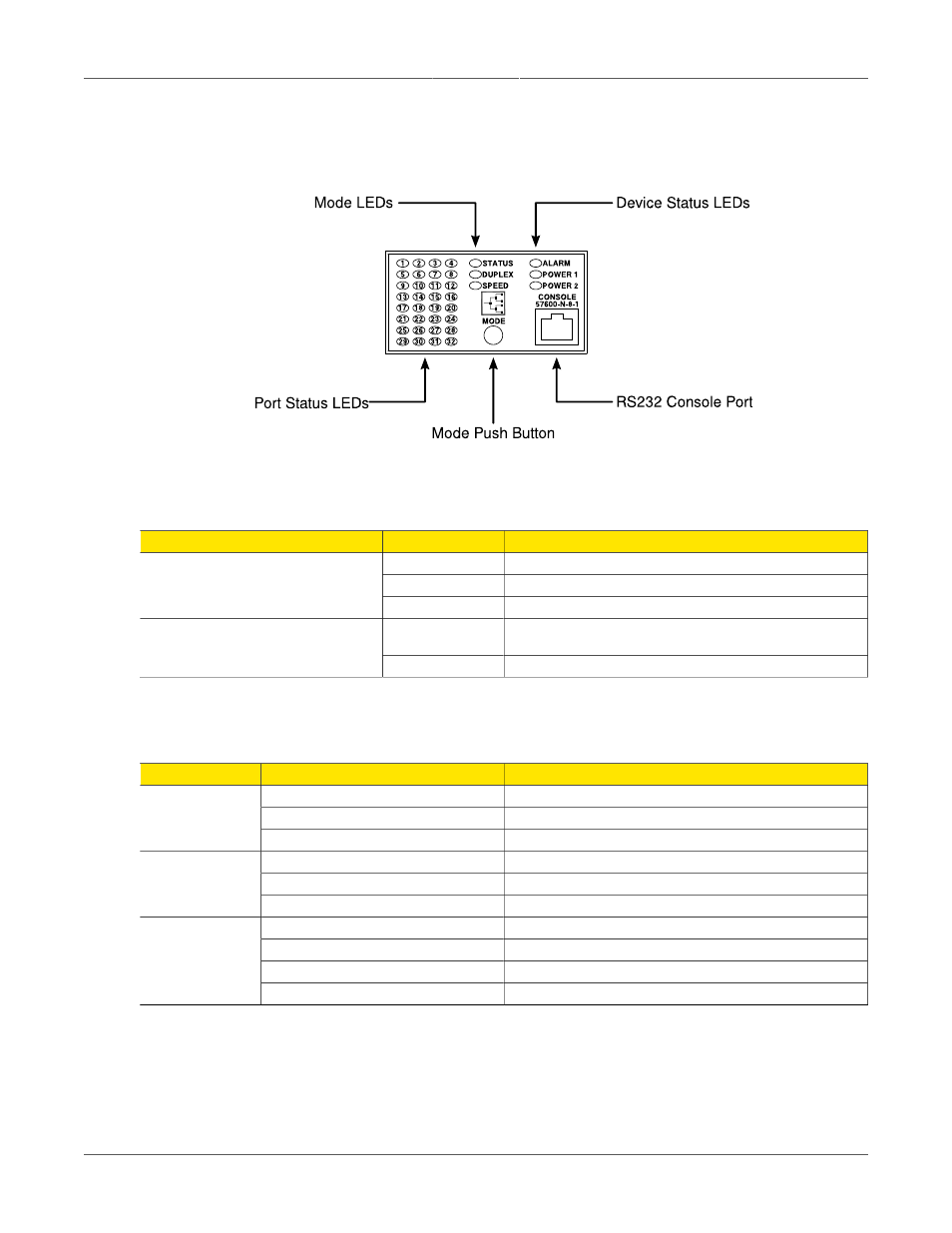

Figure 1.1. RSG2300 LED Display Panel
The device status LEDs provide a quick visual indication of the operational status of the unit. The
following table lists the possible LED colors and their corresponding descriptions.
LED Color Description
Green Power supply operating normally
Red Power supply failure
Power 1 / Power 2
Off No power supply installed
Red An alarm condition exists – log in to the web management
interface or to the CLI to determine the alarm code Alarm
Off No alarms exist
Table 1.1. LED Display – Device status LED behavior definition
The port LEDs operate in three display modes: Status, Duplex, and Speed. To set the display
mode, push the Mode button.
Mode Color Description
Green (Solid) Link detected
Green (Blinking) Activity
Status
Off No link
Green (Solid) Full-Duplex operation
Orange (Solid) Half-Duplex operation
Duplex
Off No link
Green (Blinking) 1000Mb/s
Green (Solid) 100Mb/s
Orange (Solid) 10Mb/s
Speed
Off No link
Table 1.2. Port Status LED behavior definition
