8

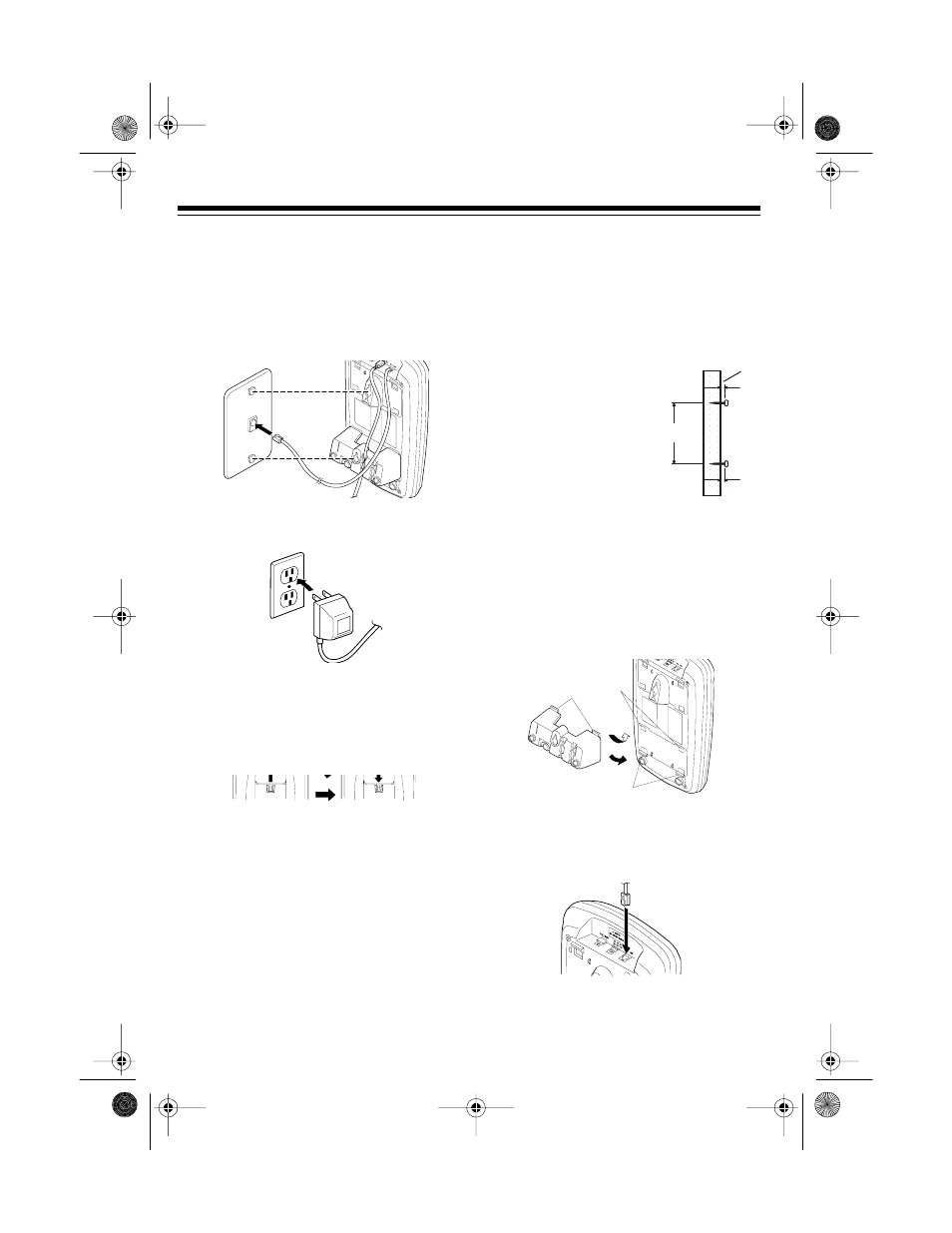

5. Plug the modular cord into the wall
plate jack, then align the bracket’s
keyhole slots with the wall plate
studs and slide the base downward
to secure it.
6. Plug the adapter into a standard AC
outlet.
7. Press and lift out the handset hold-
er, rotate it 180 × , then snap it back
into place.
8. Lift the base’s antenna to a vertical
position.
Directly on the Wall
For this mounting method, you need two
screws (not supplied) with heads that fit
into the keyhole slots on the bottom of
the base.
1. Drill two holes 3 15 /
16
inches (100 mm)
apart. Then thread a
screw into each hole,
letting the heads ex-
tend about
5 /
16
inch (8
mm) from the wall.
2. Insert the bracket’s tabs into the
base’s lower tab slots as shown,
then press down on the bracket’s
clips and insert them into the clip
slots.
3. Plug one end of the supplied long
modular cord into the TEL LINE jack
on the back of the base.
5 / 16 "
3 15 / 16 "
Lower
Clip Slots
Tabs
Tab
Slots
