127
Chapter 6 Creating Performance Data Including Moving Keys (A/V sync)
Chapter 6
Playback (Aux Input)

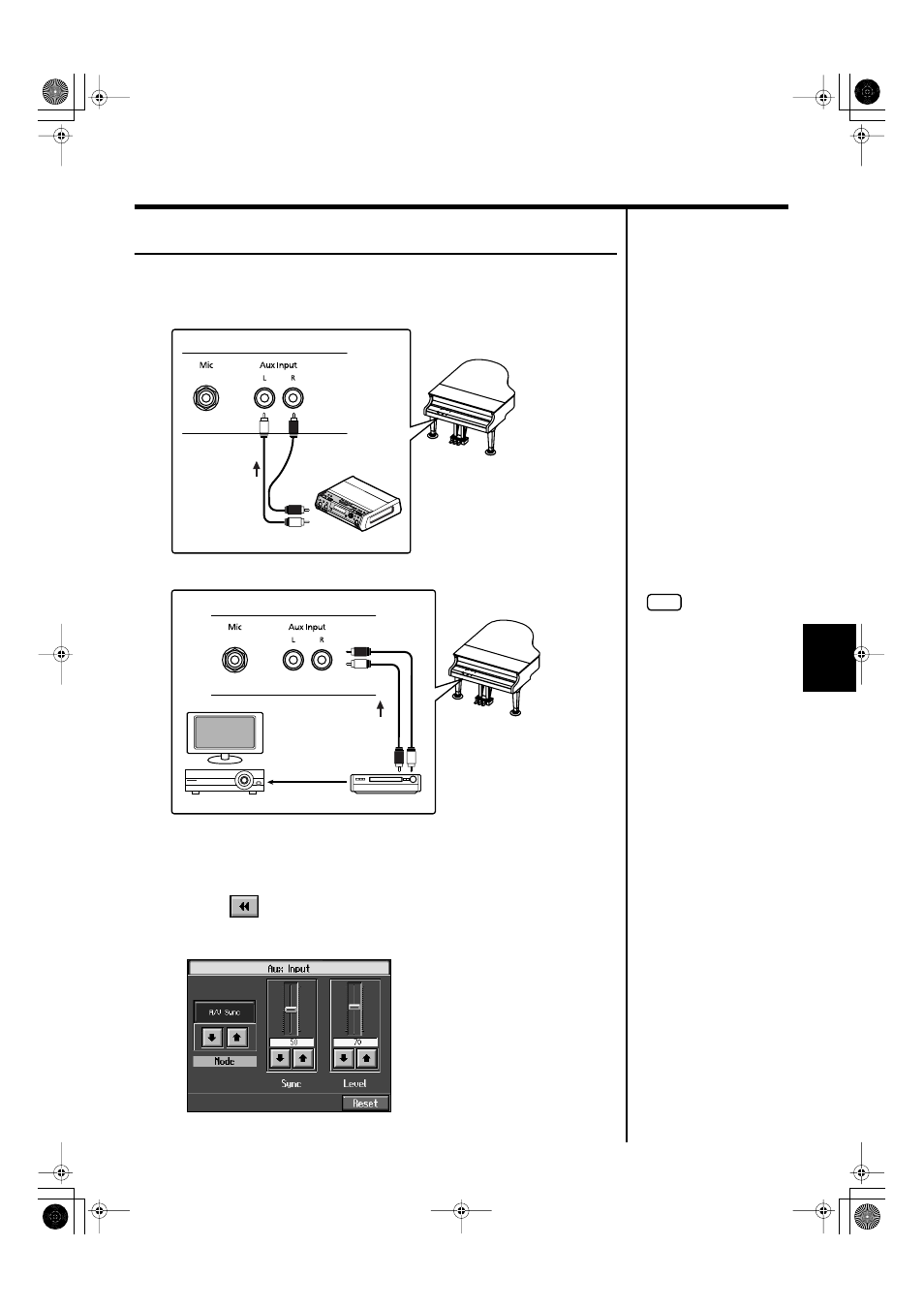

■ Making the Connections
fig.05-2-03
fig.05-2-04
1.
Press the [Menu] button.
The “A/V Sync” display will appear.
2.
Touch to switch the page, then touch the .
The following display will appear.
LINE OUT,
OUT PUT
Jack Panel (Front)
Recording device
KR
When connecting audio recording devices
Audio cable
LINE OUT,
OUT PUT
Video Equipment Television, Projector
VIDEO
OUT
VIDEO
IN
Jack Panel (Front)
KR
When connecting video recording devices
Audio cable
NOTE
If both the output for A/V
Sync and AUX input are
connected simultaneously,
please set “Mode” of the Aux
input to “Off.”
If this is set to anything other
than “Off,” make sure to
disconnect any cables
connected to Aux Out or
Balanced Out.
If such connections are left
intact, you may likely
encounter a loud, continuous
beep tone.
