Panel Descriptions
Phones Jacks
Here you can connect stereo headphones.
The HP505 has two headphone jacks, two people
can also use headphones simultaneously.
Input Jacks
If a digital audio player or other audio
playback device is connected here,
you’ll be able to listen to its playback
through the HP505.
The volume of the device connected
to the Input jacks can be adjusted by
means of Input Volume (p. 46).
Don’t forget to remove your headphone adaptor plug!
If you leave a headphone adaptor plug inserted in
the headphone jack, no sound will be heard from the
piano. If you don’t hear sound from the piano, check
the headphone jacks.
MIDI Connectors
You can connect these to external MIDI devices.
* To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.
* When connection cables with resistors are used, the volume level of equipment connected to the Input jacks may be low. If this happens, use connection cables that
do not contain resistors.
DC In Jack
Connect the
included AC
adaptor here.
* Before making this connection,
you must make sure that the
[Power] switch is off.
Pedal Connector
Connect the
pedal cord
of the dedicated stand to
this connector.
page 62 page 62
Output Jacks
If you connect these jacks to
amplified speakers, the sound
of HP505 will be heard through
them.
Rear side

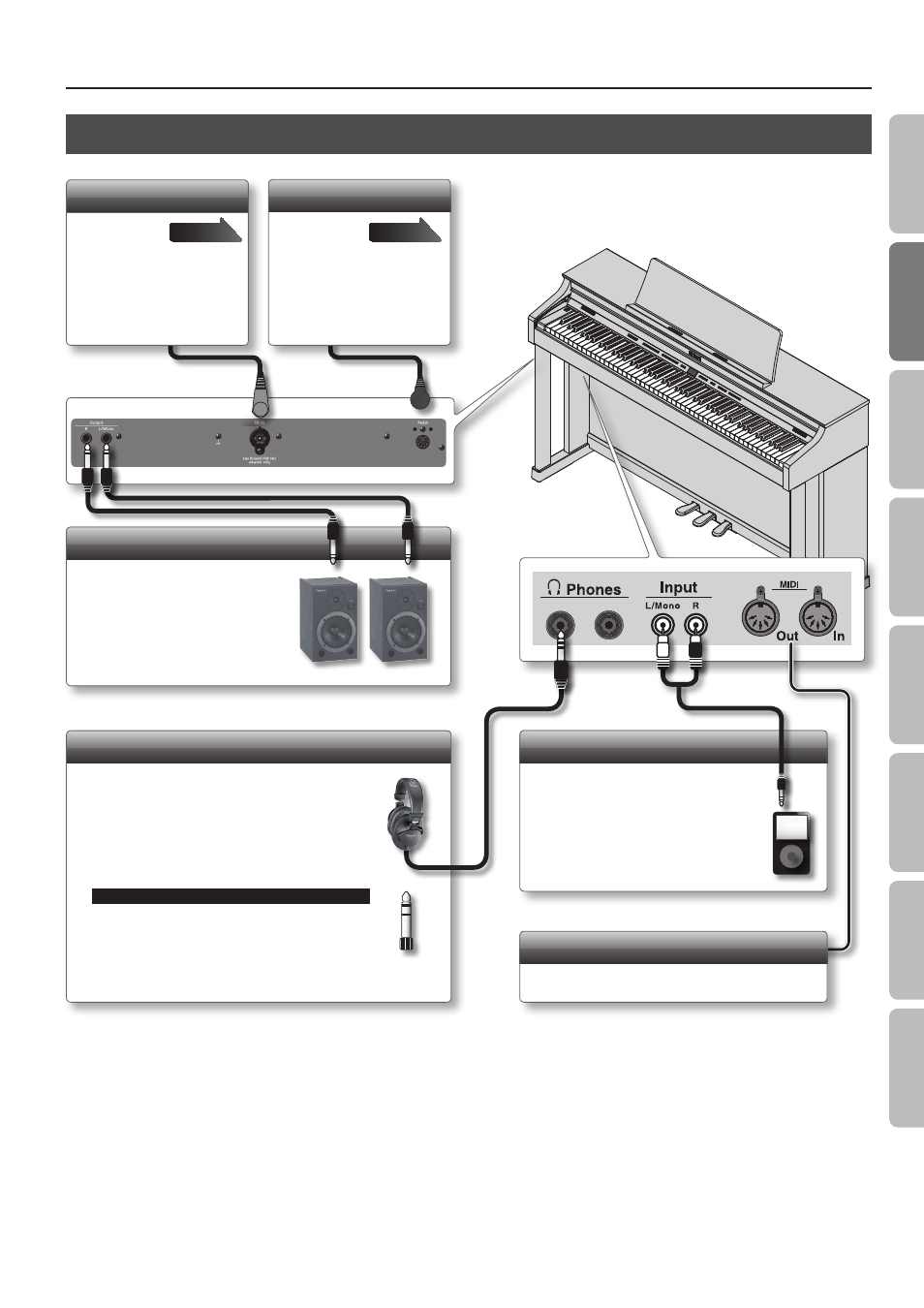

Rear Panel and Bottom Panel (HP505)
11
