M301N2T-PRB User’s Manual 3. Usage
REJ10J0037-0100 Rev.1.00 Mar.16, 2005 Page 29 of 48
3.4 Self-check
3.4.1 Self-check Procedure
To run the self-check of the emulator, do so as explained here below. While the self-check is in progress, the LEDs will change
as shown in Figure 3.5.
(1) If the user system is connected, disconnect it.
(2) Set the switches in the emulation pod to the factory settings as shown in Figure 3.3.
(3) Set the switches in the emulation pod FLX64-PRB to the factory settings as shown in Figure 3.4.
(4) Within 2 seconds of activating power to the emulator, press the system reset switch on the emulator front panel.
(5) Check the SAFE LED starts blinking and then press the system reset switch again.
(6) The self-check will start. If the normal result is displayed in about 40 seconds, the self-check has terminated normally.

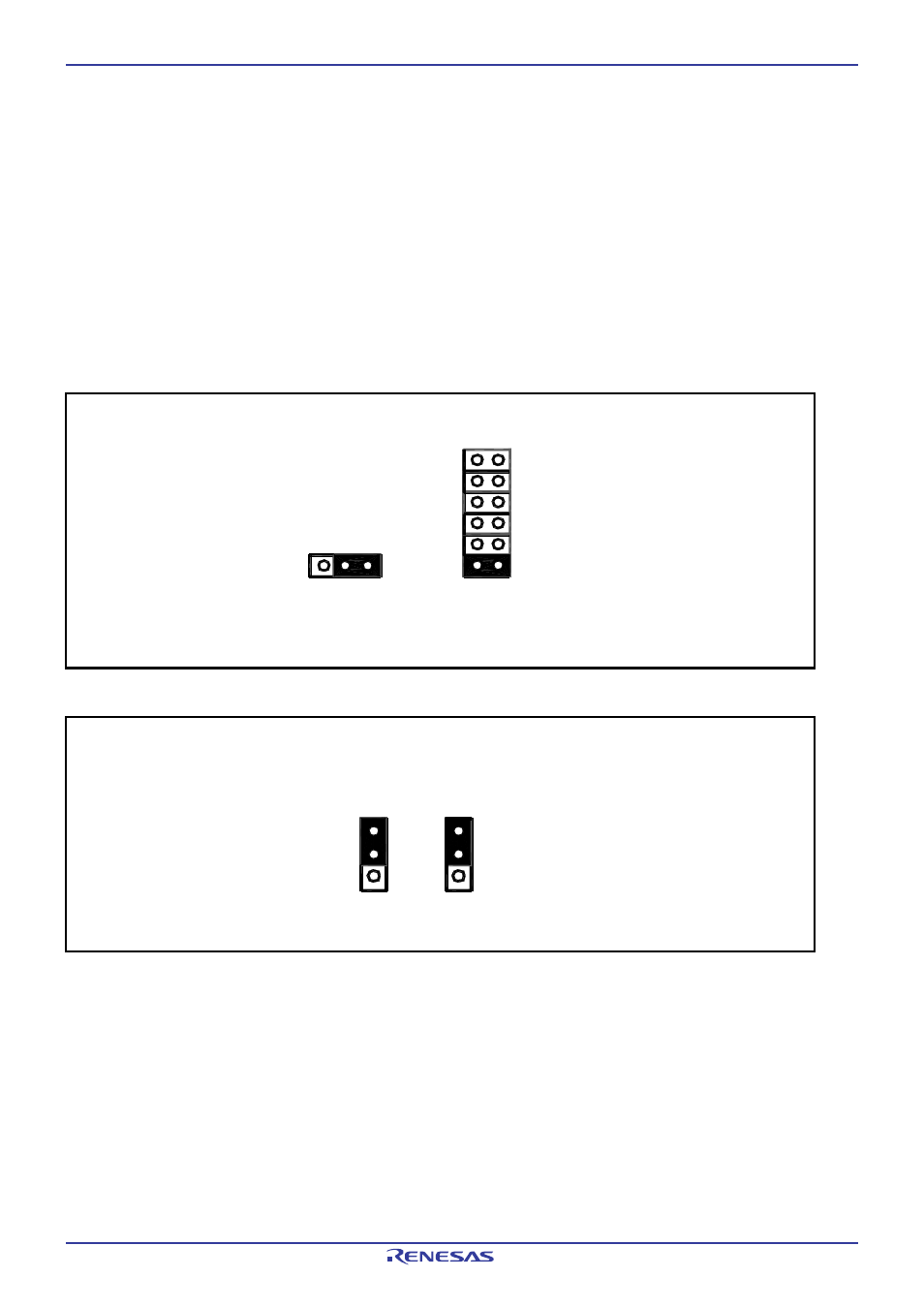

Figure 3.3 Switch settings of the M30100T3-RPD-E for the self-check (factory-settings)
Figure 3.4 Switch settings the FLX64-PRB for the self-check (factory-settings)
JP2
M
16C
/2
0
M16C
/10
JP
1
0ns
1ns
2ns
3ns
4ns
5ns
XCIN
JP1
PORT
NC
JP2
PORT
