M301N2T-PRB User’s Manual 2. Setup
REJ10J0037-0100 Rev.1.00 Mar.16, 2005 Page 24 of 48

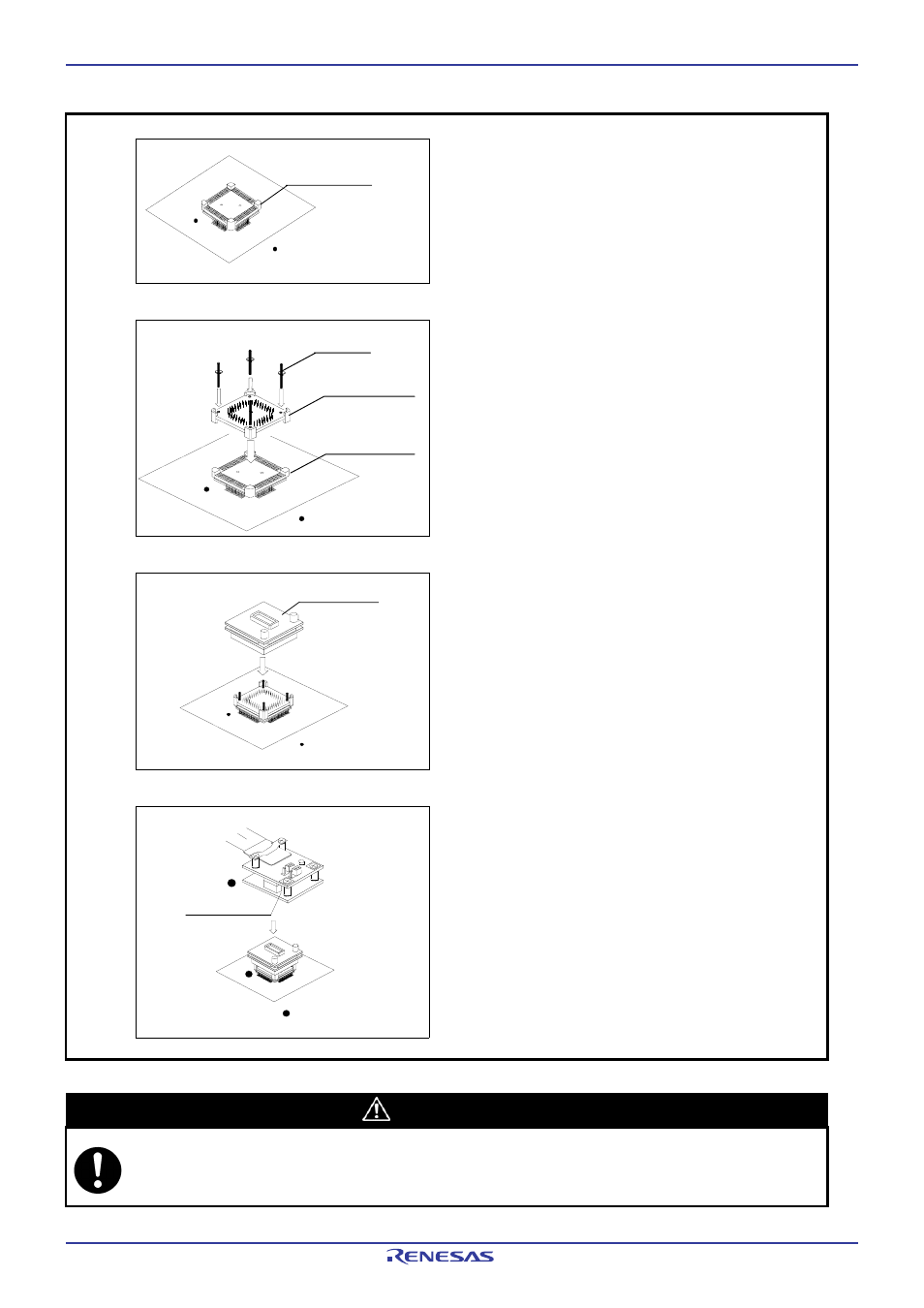

Figures 2.8 shows how to connect converter board M30102T-PTC for a 48-pin 0.5-mm-pitch package.
(1) Mount the NQPACK048SD to the user system.
(2) Connect the YQPACK048SD to the NQPACK048SD
using the YQ-GUIDE's.
(As the screws included with the YQPACK048SD
are used for the HQPACK048SD, do not use them
for securing the YQPACK048SD.)
(3) Connect the M30102T-PTC along the YQ-GUIDE's.
(4) Connect the M301N2T-PRB.
Figure 2.8 Connecting the converter board M30102T-PTC for a 48-pin 0.5-mm-pitch LQFP
CAUTION
Note on Connecting the User System:
Take care not to mount the pitch converter board in a wrong direction. Otherwise, it may cause a fatal
damage to the emulation pod.
: No. 1 pin
NQP ACK 0 4 8 SD
: No. 1 pin
NQPACK 0 4 8 SD
YQP A C K 0 4 8 SD
YQ - GUI D E
: No.1 pin
M3 0 1 0 2T - PTC
: No.1 pin
M301N2T-PRB
