M301N2T-PRB User’s Manual 2. Setup
REJ10J0037-0100 Rev.1.00 Mar.16, 2005 Page 21 of 48
2.3 A/D and D/A Conversion Bypass Capacitors
This product has a foot pattern on the board for mounting a bypass capacitor for the A/D and D/A converter circuits. Mount a
suitable bypass capacitor as occasion demands.

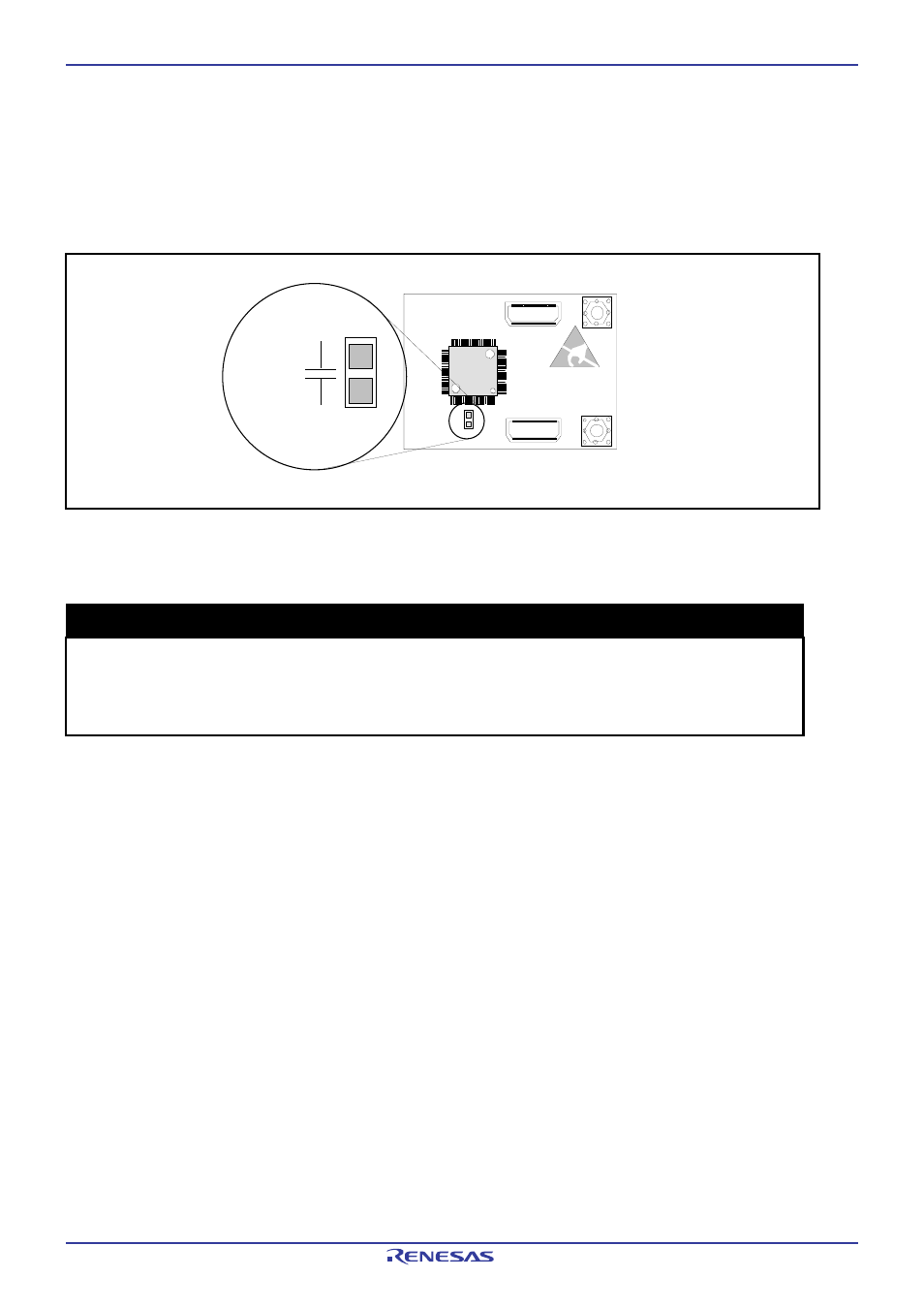

Figure 2.4 shows the position of the bypass capacitor.
Figure 2.4 Foot patterns of bypass capacitors for A/D converter
IMPORTANT
Note on the A/D Converter Function:
The characteristics of an A/D converter differ from those of an actual MCU because there are a pitch
converter and other devices between the evaluation MCU and the user system. Make the final
evaluation of the A/D converter with the actual MCU.
