Operational Specifications
3.3 Outline of Operational Components
Rev.1.0 July 21, 2006 3-12
REJ10J0952-0100
3
3.3 Outline of Operational Components
The M3A-HS25 includes switches, jumpers and LEDs as its operational components.

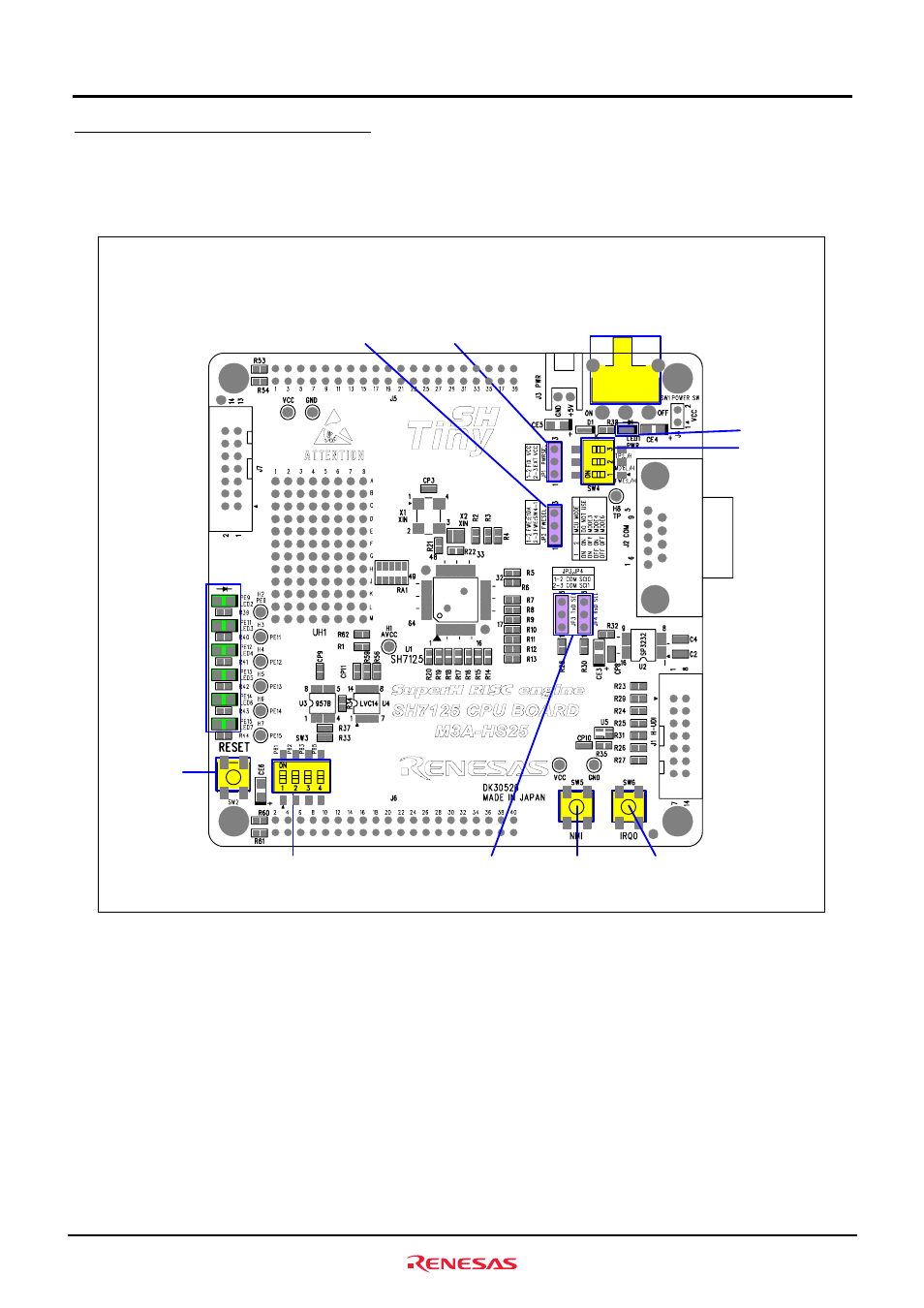

Figure 3.3.1 shows the M3A-H25 operational component assignment.
SW1
Power Switch
SW3
DIP Switch
LED2-7
User LED
SW2
Reset Switch
SW5
NMI Switch SW6
IRQ0 Switch
SW4
DIP Switch for
System Setting
LED1
Power LED
JP1
Power Supply
Select Jumper
JP2
FWE pin
Select
Jumper
JP3,JP4
Serial Port Select
Jumper
Figure 3.3.1 M3A-H25 Operational Component Assignment
