Operational Specifications
3.1.3 Power Supply Connector (J3)
Rev.1.0 July 21, 2006 3-5
REJ10J0952-0100
3
3.1.3 Power Supply Connector (J3)
The M3A-HS25 includes a power supply connector for the board itself.

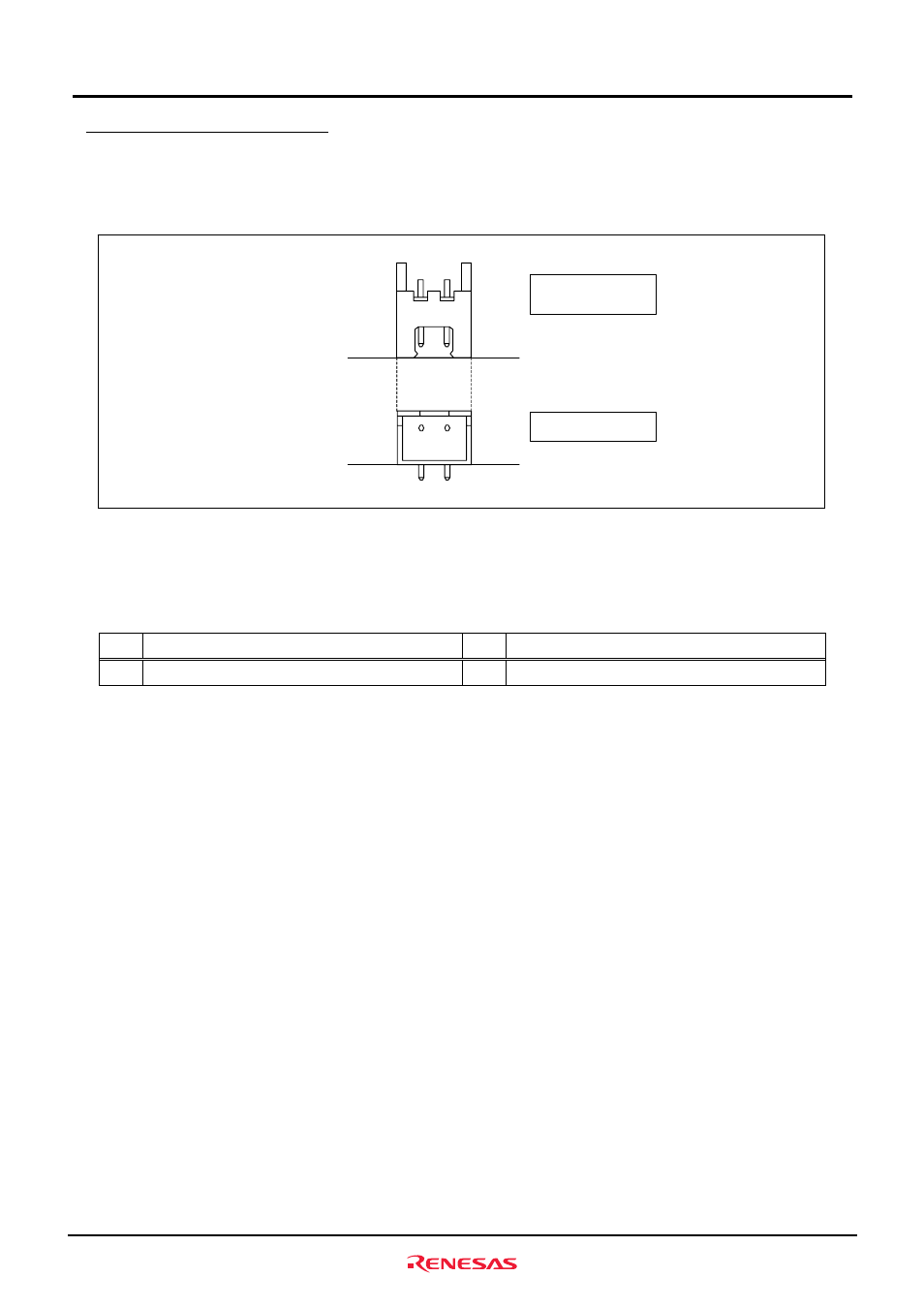

Figure 3.1.4 shows a pin assignment of power supply connector.
Top view of the
component side
Board edge
Board edge
1 2
1 2
Side view
Figure 3.1.4 Pin Assignment of Power Supply Connector (J3)
Table 3.1.3 lists a pin assignment of power supply connector for the M3A-HS25.
Table 3.1.3Pin Assignment of Power Supply Connector (J3)
Pin Signal Name Pin Signal Name
1 +5V 2 GND
