60 DSM300 Operation with PLUS Series Displays

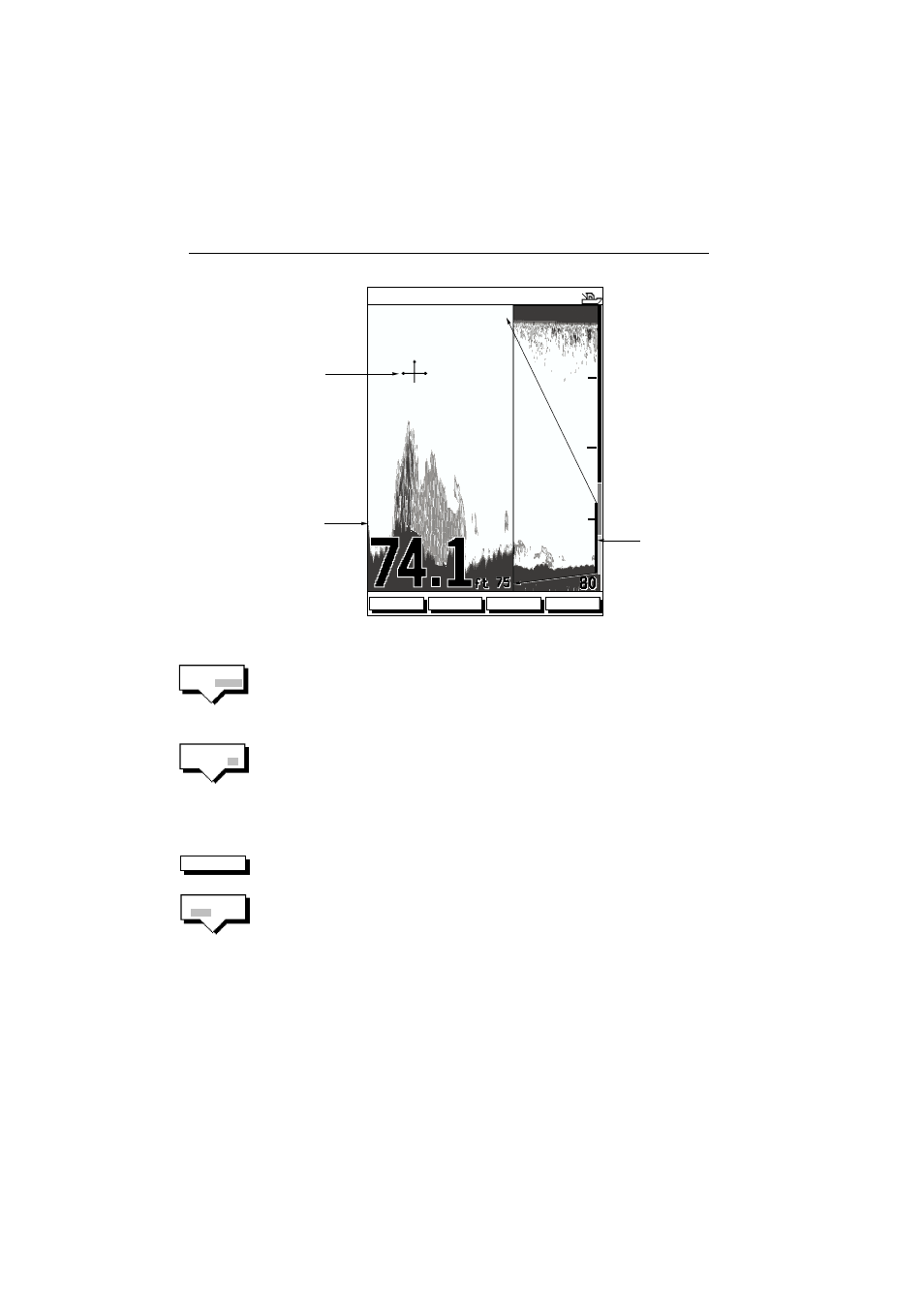

Figure 4-10: Zoom with Split Screen
4. Press the ZOOM AUTO MAN soft key to toggle the setting between AUTO and
MAN. The automatic setting adjusts the position of the zoom window so that
bottom details are always in view. The manual setting enables you to reposi-
tion the range of the zoomed image.
5. For zoom level selection, press the ZOOM X 2 4 6 soft key until the desired
zoom level is selected. The greater the zoom, the smaller the area you are
viewing, so the smaller the Zoom Range Bar.
6. Press ENTER or CLEAR to select.
➤
To turn off Zoom:
1. Press the ZOOM soft key.
The Zoom soft keys are displayed.
2. Press the ZOOM ON OFF soft key to toggle zoom off.
3. Press ENTER or CLEAR to return to the default display.
If manual zoom is selected, you can reposition the area of the image that is
zoomed.
D6200-1
ZOOM FREQUENCY BTM.LOCK A-SCOPE
AUTO G RZ
50kHz
0
20
40
60 x4
55
Zoom Range Bar
Zoom Cursor,
controlled by trackpad
Manual mode only
Zoom Factor
ZOOM
ZOOM
AUTO MAN
ZOOM
X 2 4 6
ZOOM
ZOOM
OFF ON
