Chapter 4: Basic Display Controls
47

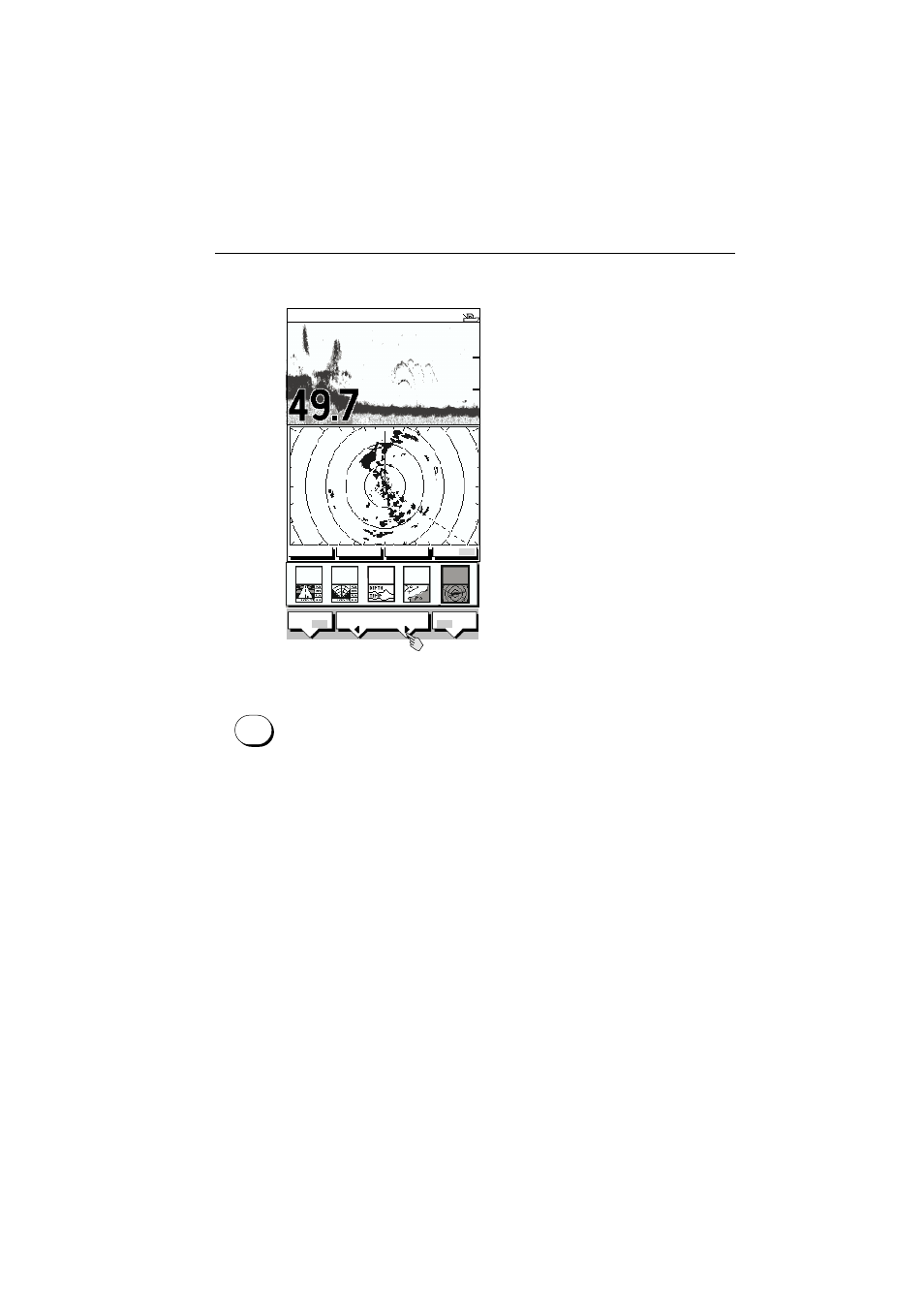

Figure 4-3: Radar Half-Screen Window
Vertical Half-Screen Window Options
You can also use the DISPLAY key to select a data window that is vertically split
with the full-screen Sonar mode display. Vertical half-screen windows are only
available in Sonar mode. Three data windows are available, each window
provides several large-format data boxes for specific information as follows:
• Data Window A – provides surface temperature with a 30 minute tempera-
ture graph, speed through water, and depth.
• Data Window B – provides position, course over ground (COG), speed over
ground (SOG), and depth.
• Data Window C – provides waypoint range and bearing, course over ground
(COG), speed over ground (SOG), and depth.
D6211-1
60
AUTO GCRZFH
50kHz
0
SELECT
WINDOWS
WINDOWS
OFF ON
SPLIT
HOR VER
ZOOM
MORE¬
FREQUENCY
RDR SNR
20
40
ft
60
Radar Window
DISPLAY
