44 DSM300 Operation with PLUS Series Displays
3. Press ENTER or CLEAR.
The Sonar screen is displayed with its default soft keys. The associated half-
screen window soft keys are also displayed.
You can also set Windows On to split the display into two half-screen windows
(horizontal or vertical) to show supplementary data, or to display sonar and chart
or radar simultaneously. Split screen options are described in the following
sections.

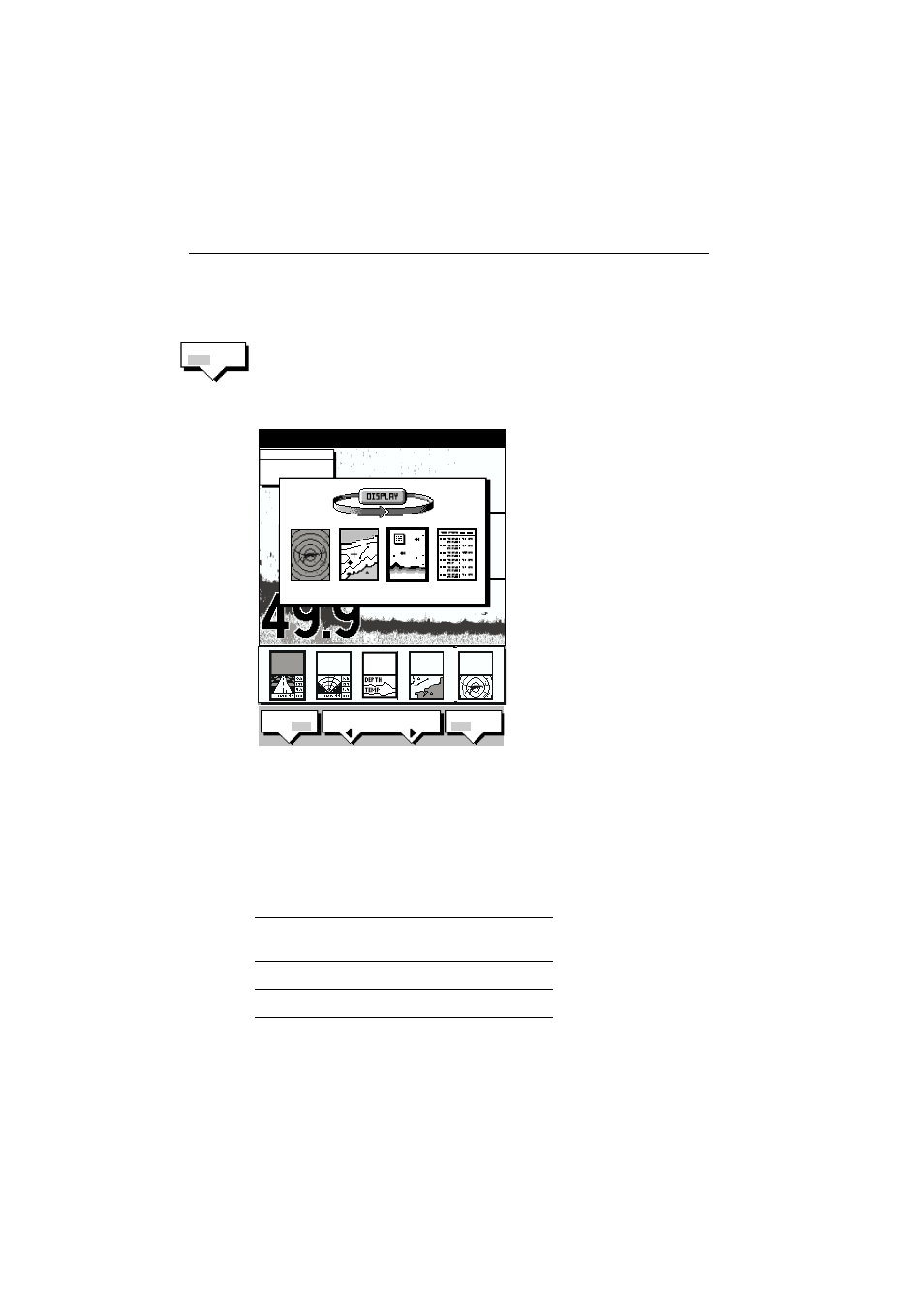

Figure 4-1: Selecting the Display Mode
Horizontal Half-Screen Window Options
Using horizontal half screens, the main operating mode is displayed in the upper
window; you choose what is displayed in the lower window.
The following information, if available on your system, can be shown:
Table 4-1: Horizontal Half-Screen Window Options
Full-screen
mode Horizontal Half-Screen
Window Options
Sonar Mode CDI, BDI, Depth/Temp, Chart, Radar
Chart Mode CDI, BDI, Nav Data, Radar, Sonar
SPLIT
HOR VER
BRG 099o R
RNG 2.410 nm
CURSOR
60
0
0
ft
D6212-1
"DISPLAY" TO SELECT FULL SCREEN OPTION
SOFTKEYS TO SELECT WINDOW OPTION
CHART SONAR LOG RADAR
SELECT
WINDOWS
WINDOWS
OFF ON
SPLIT
HOR VER
SELECT
WINDOWS
WINDOWS
OFF ON
SPLIT
HOR VER
