Adding effects
The effect signal path

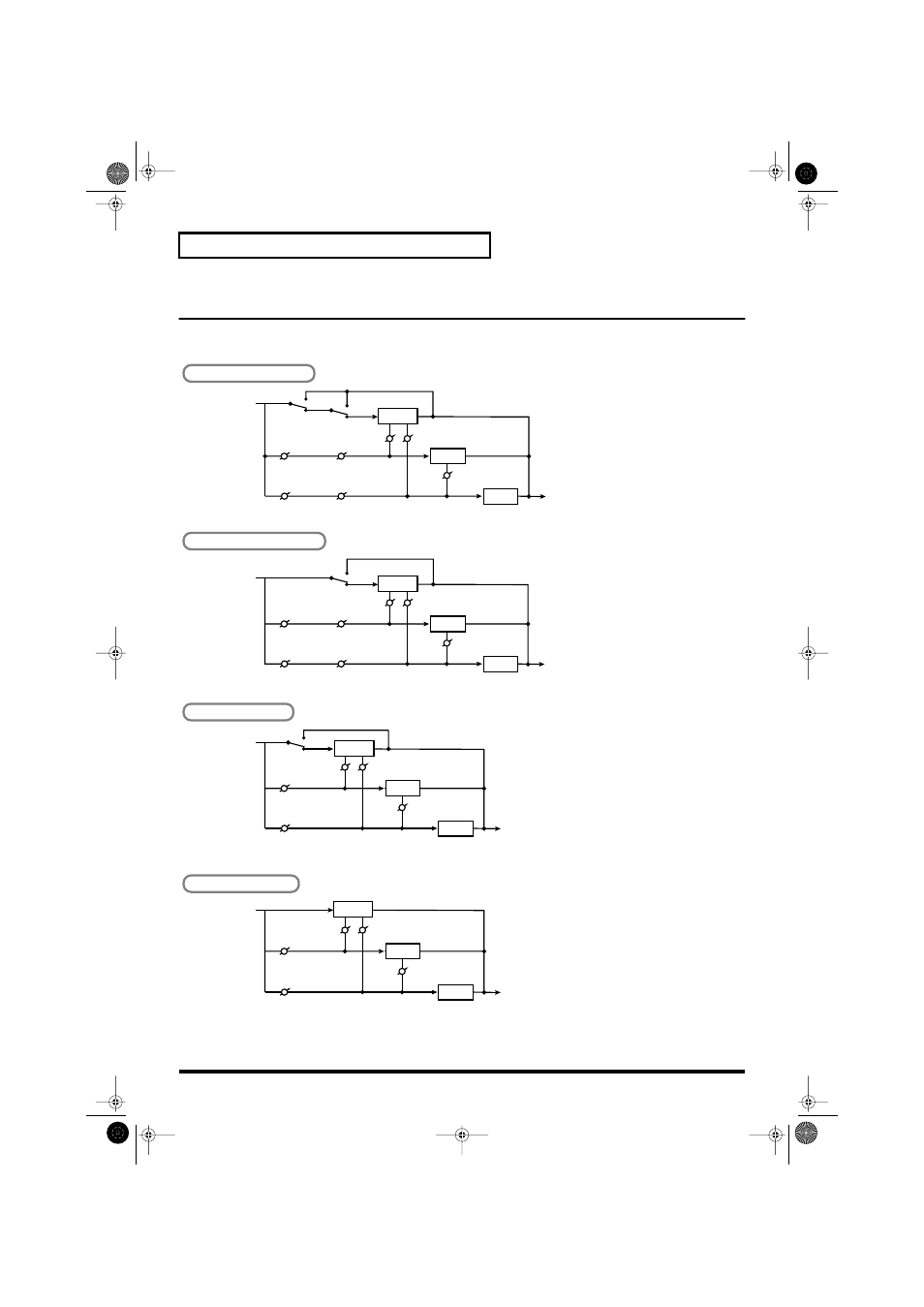

The following figure shows the path followed by the effects signals.
fig.r08-03.e
Patch Mode (Patch)
OUTPUT
(R, L(MONO))
MFX Send
Level to Cho
MFX Send
Level to Rev
Tone MFX
SW
Tone Cho
Send Level
Tone Rev
Send Level
Tone
Cho Send
Level to Rev
Multi-FX
Chorus
Reverb
Patch Mode (Rhythm)
OUTPUT
(R, L(MONO))
MFX Send
Level to Cho
MFX Send
Level to Rev
Tone Cho
Send Level
Tone Rev
Send Level
Tone
Cho Send
Level to Rev
Multi-FX
Chorus
Reverb
Performance Mode (Patch)
Multi-FX
Chorus
OUTPUT
(R, L(MONO))
MFX Send
Level to Cho
MFX Send
Level to Rev
Part MFX
SW
Part Cho
Send Level
Tone Cho
Send Level
Part Rev
Send Level
Tone Rev
Send Level
Tone
Reverb
Cho Send
Level to Rev
Tone MFX
SW
Performance Mode (Rhythm)
OUTPUT
(R, L(MONO))
MFX Send
Level to Cho
MFX Send
Level to Rev
Part MFX
SW
Part Cho
Send Level
Tone Cho
Send Level
Part Rev
Send Level
Tone Rev
Send Level
Tone
Cho Send
Level to Rev
Multi-FX
Chorus
Reverb
