8 Volvo Penta IPS Autopilot System

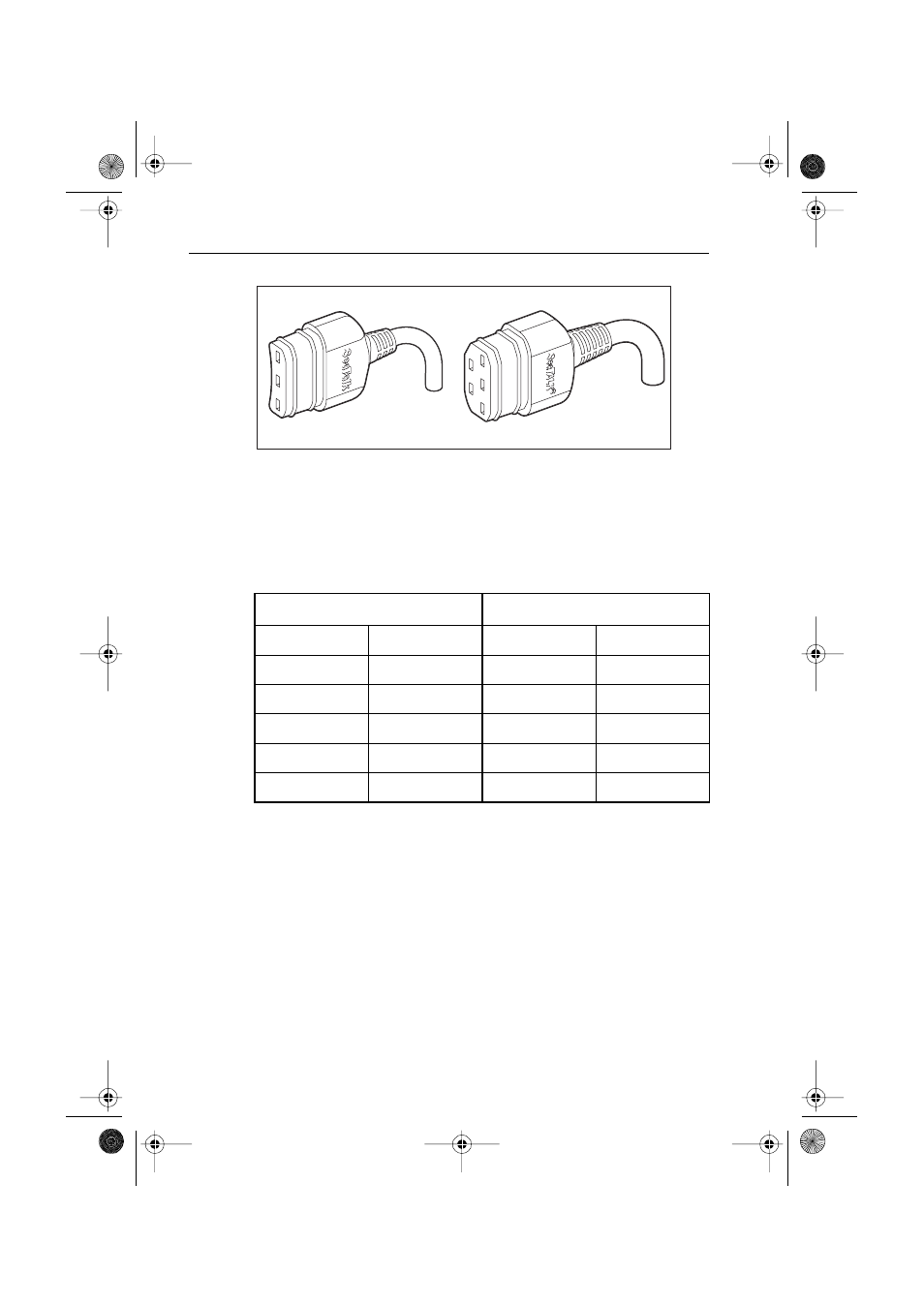

Bus connectors
If you are working with unterminated cable, use the details in the table below to
ascertain the correct connections. Cable boots are available to cover the spade
terminals used to connect unterminated SeaTalk 2 cables.
SeaTalk and NMEA2000 connections
1.8 System power
CAUTION:
Incorrectly connected power supplies could cause damage to the
system
THE DPU IS POWERED VIA THE SEATALK CONNECTION. DO NOT CONNECT ANY
OTHER POWER SOURCE TO THE DPU.
SeaTalk SeaTalk 2 and NMEA 2000
Wire Function Wire Function
Red 12 V + Shield Screen
Uninsulated 12 V Red 12 V +
Yellow Data Black 12 V
White Signal line high
Blue Signal line low
D5786-2
SeaTalk connector connector SeaTalk 2
