6 Volvo Penta IPS Autopilot System
CAUTION: The DPU is not waterproof and so must be installed in a
dry location.
The DPU must be positioned below decks in a dry location where:
• It is protected against physical damage.
• It is at least 9 in (230 mm) from a compass.
• It is at least 20 in (500 mm) from radio receiving equipment.
• There is reasonable access for installation and servicing.
Fitting the Data Processing Unit
Fit the Data Processing Unit to a vertical surface, as follows:

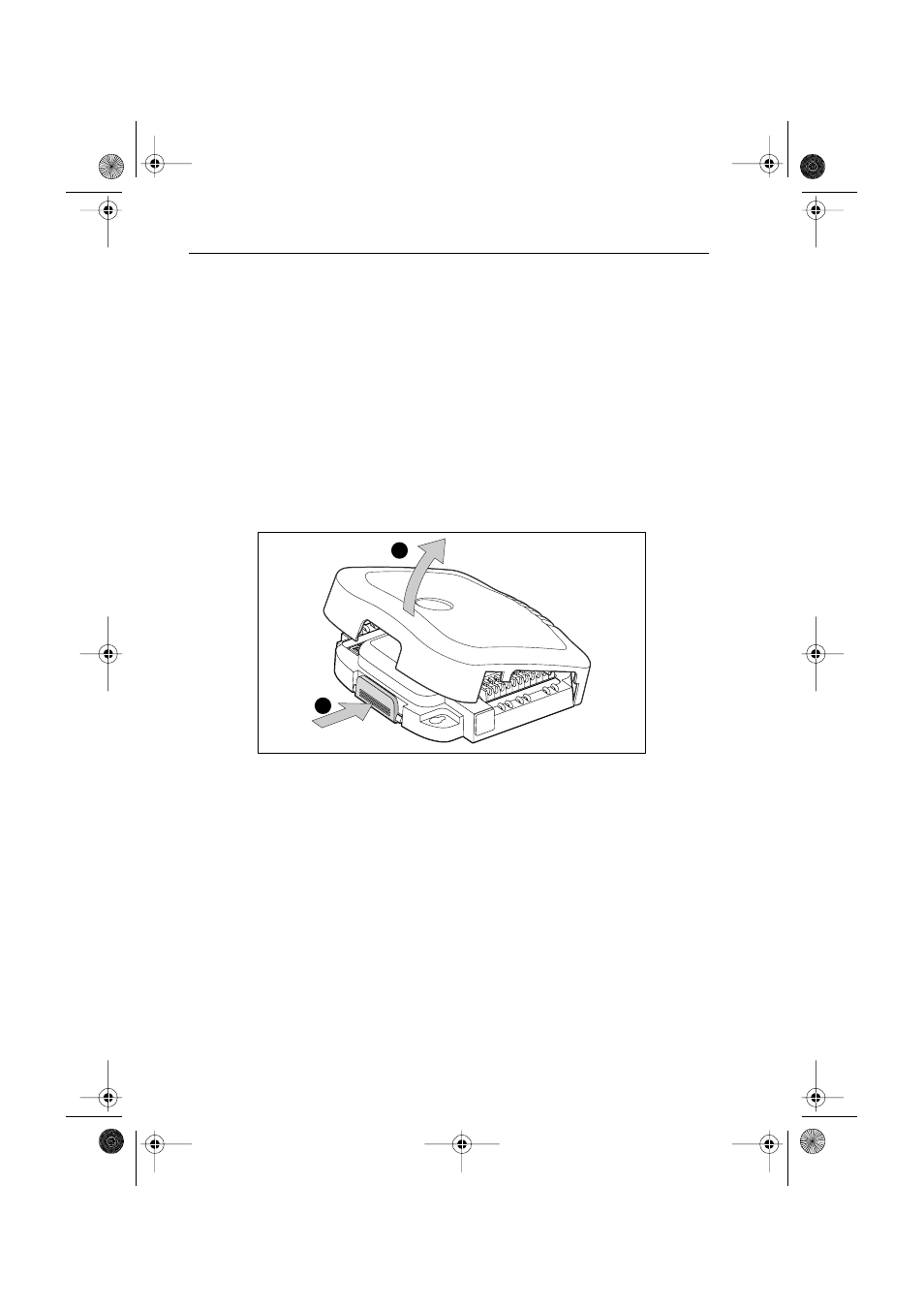

1. Remove the outer cover.
2. Place the DPU in the required position and mark the position of the fixing
holes.
3. Using a 1/8 in (3.5 mm) drill, drill a pilot hole for each of the two fixing screws.
4. Screw one of the self tapping screws provided (No 8 x 1 in) into each hole, so
each screw head is at least 15 mm from the surface.
D5794-1
1
2
