Installation
Runco VX-6000d Owner’s Operating Manual 45
PRE
L
IMINAR
Y
When the height is properly set, tighten the Height Adjustment T-Screws to secure the
lens in place.
Pitch (Angle): Next, angle the lens to even out any top-to-bottom pincushion distortion.
To do this, loosen the Pitch Adjustment T-Screws (directly below the Height/Y Adjustment
T-Screws) on either side of the lens to allow it to pivot freely. Then, adjust the anamorphic
lens angle so that the projected image is rectangular:
The anamorphic lens will almost always be angled with respect to the projector; this is
normal.
Once the proper lens angle has been set, firmly tighten the Pitch Adjustment Levers to
secure the lens in place.
There may be some pincushion distortion even after the lens is
properly adjusted, especially at shorter throw distances. If this is the
case, Runco recommends that you slightly over-scan the image
into the screen frame area to mask the distortion.

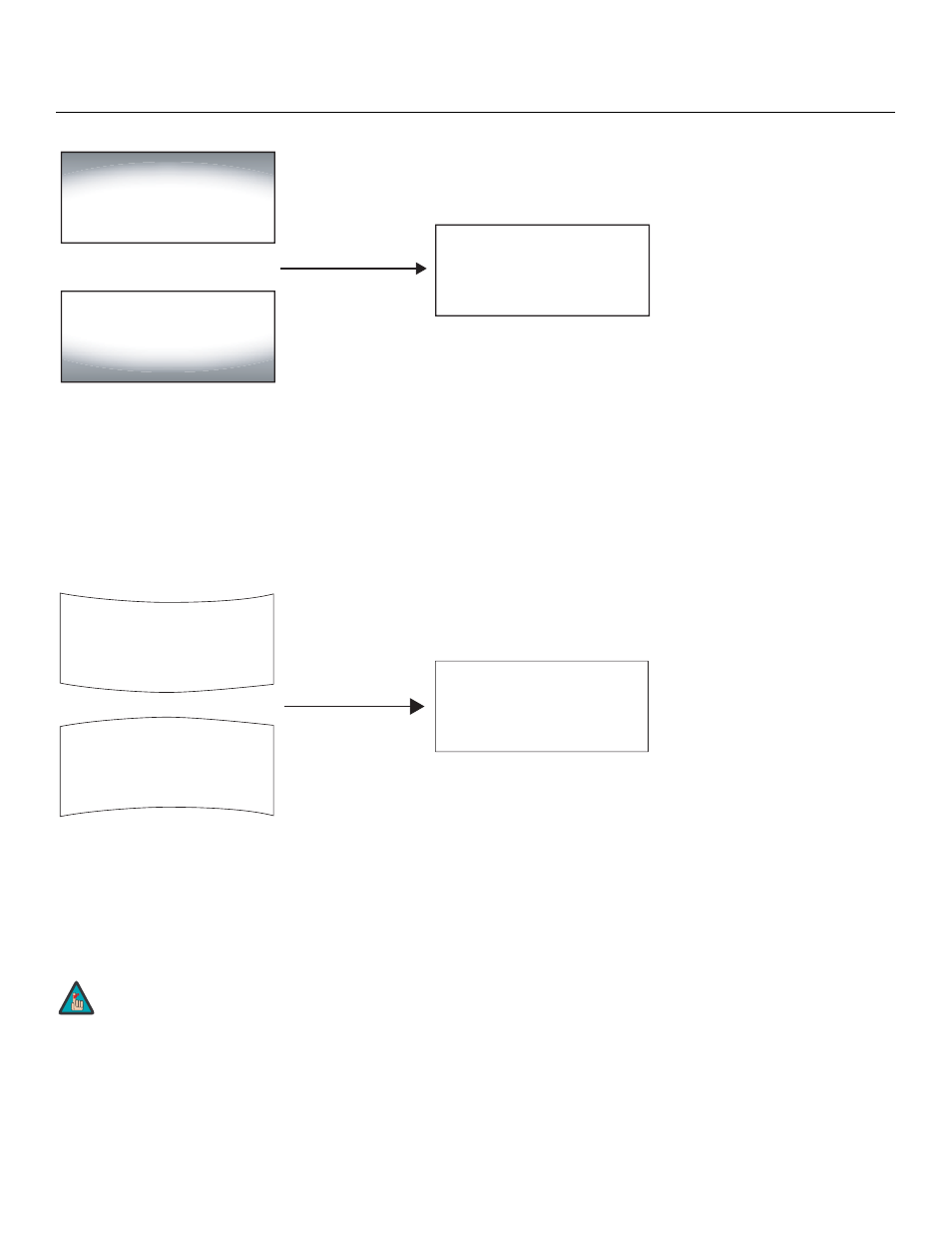

Too High
Too Low
Correct position
Correct Lens Angle
Incorrect Lens Angle
Note
