4. Use the Lens Rotation Set Screws to attach the Lens Adapter Ring (item #1) to the
Pitch Adjustment Yoke (item #2); see Figure 3-19. (Use the curved, oval-shaped holes
on the Pitch Adjustment Yoke.)
5. Use the Height/Y Adjustment T-Screws (item #3), Pitch Adjustment T-Screws
(item #4) and Washers to attach the Pitch Adjustment Yoke and Lens Adapter Ring to
the Anamorphic Lens Holder. The Yoke should be as close to the primary lens
as possible.
6. Attach the lens to the Lens Adapter Ring by threading it clockwise.

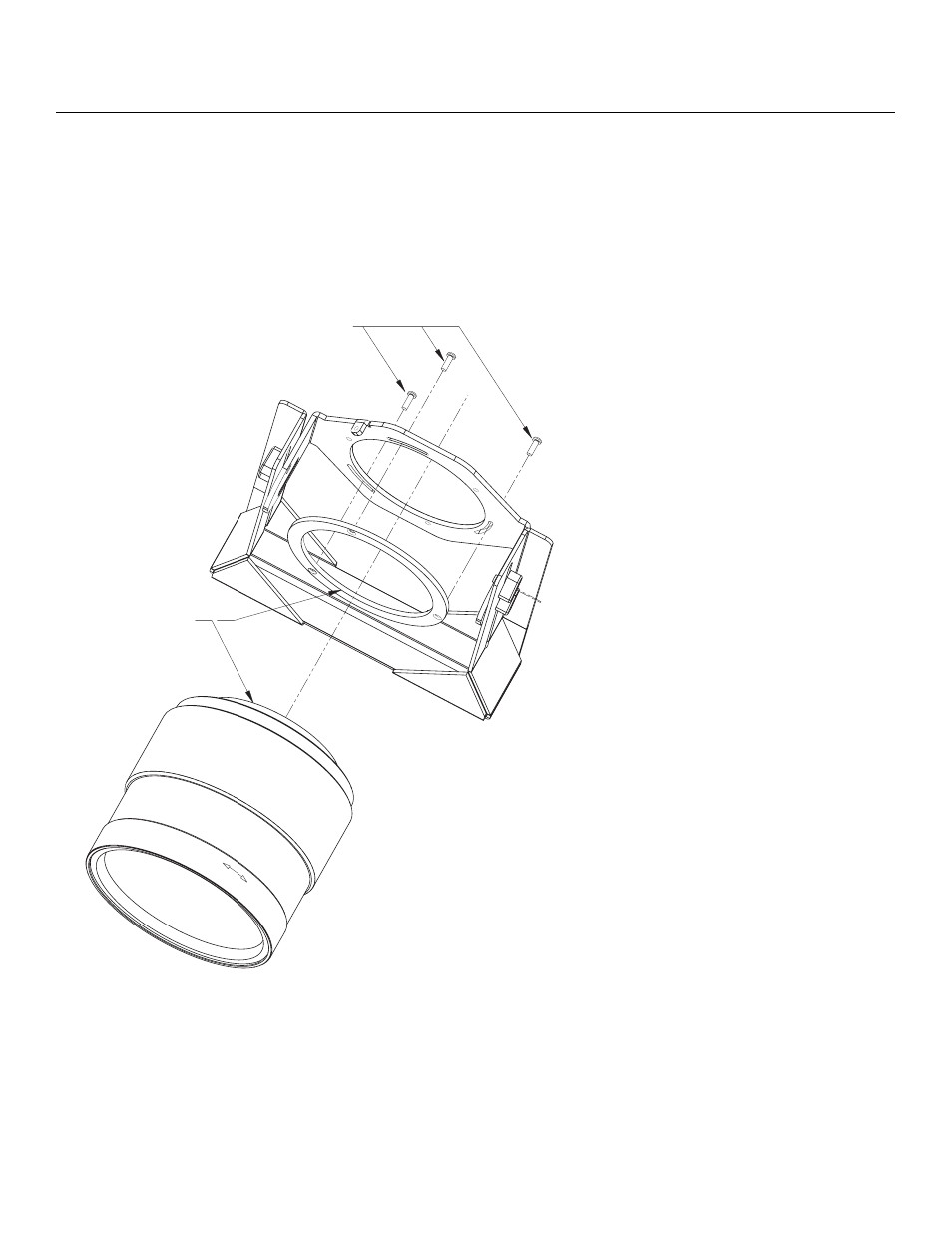

Figure 3-19. Attaching the Anamorphic Lens to the Lens Adapter Ring
FO
CU
S
LENS THREADS
INTO RING
Lens Rotation Set Screws
