Projector: The projector is equipped with an additional 12-volt trigger output. This trigger
activates when the projector is turned on. Connect it to your retractable screen or other,
12-volt trigger-activated equipment as shown in Figure 3-15.

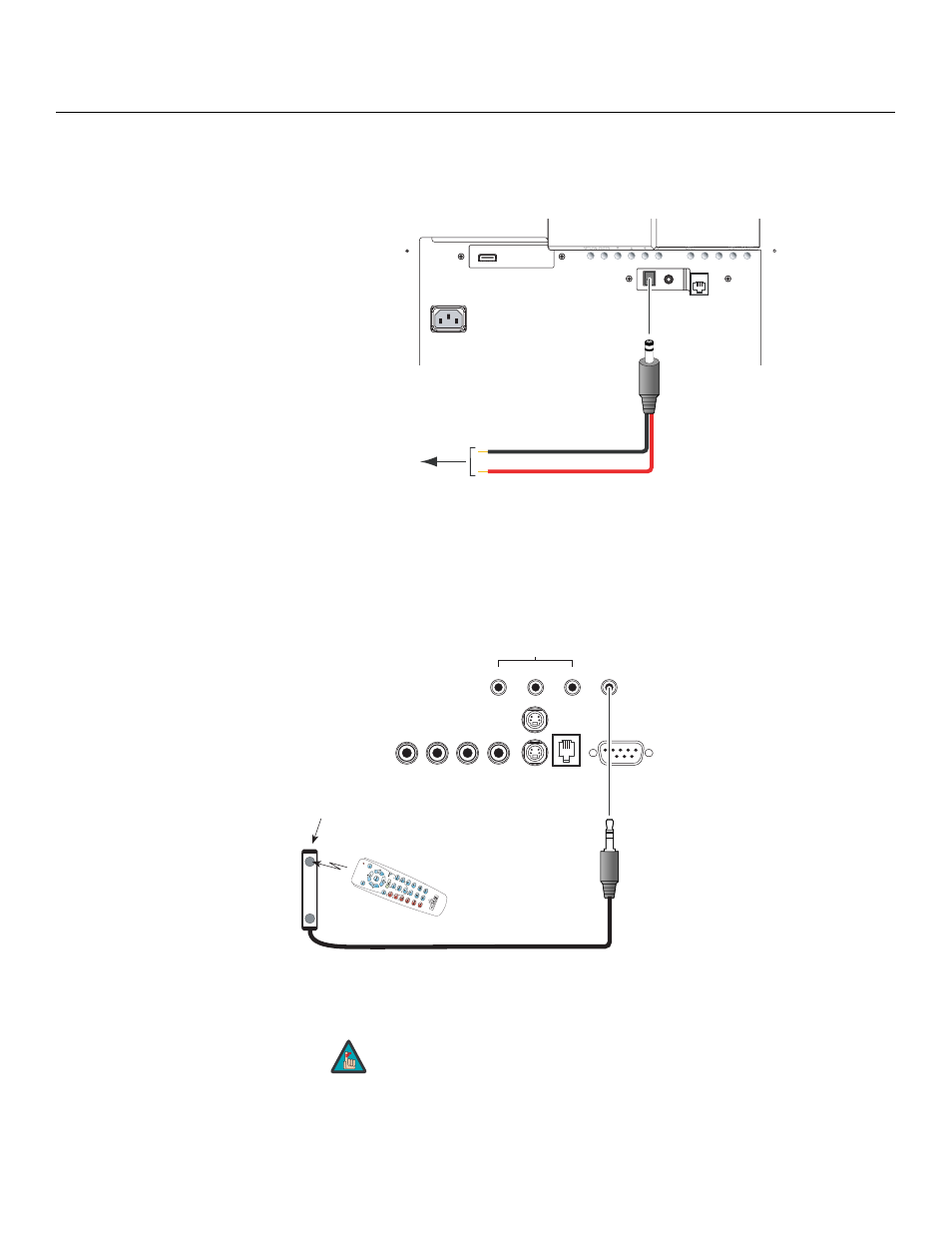

Figure 3-15. 12-volt Trigger Output Connection (from Projector)
Connecting an External IR
Receiver to the DHD
Controller
If infrared signals from the remote control cannot reach the DHD Controller due to
excessive distance or obstructions such as walls or cabinet doors, you can connect an
external IR receiver to the DHD Controller to extend the range of the remote control. See
Figure 3-16.
Figure 3-16. External IR Receiver Connection
RS-232C WIRED
IR
+12V
100-240V
AC INPUT
HDMI IN
to retractable screen
or other, 12-volt
trigger-activated
equipment
Tip = +12V
Sleeve = Ground
(cylindrical,
DC power
supply-type
plug)
➤
When an external IR receiver is connected to the wired IR input, the
built-in IR sensor on the DHD Controller is disabled.
