2.6
VX-6000d Built-In
Keypad
The VX-6000d has a built-in keypad that you can use to access the menu system for
working with digital 1080i or 1080p sources. Figure 2-7 shows the VX-6000d built-in
keypad; the paragraphs that follow describe its use.

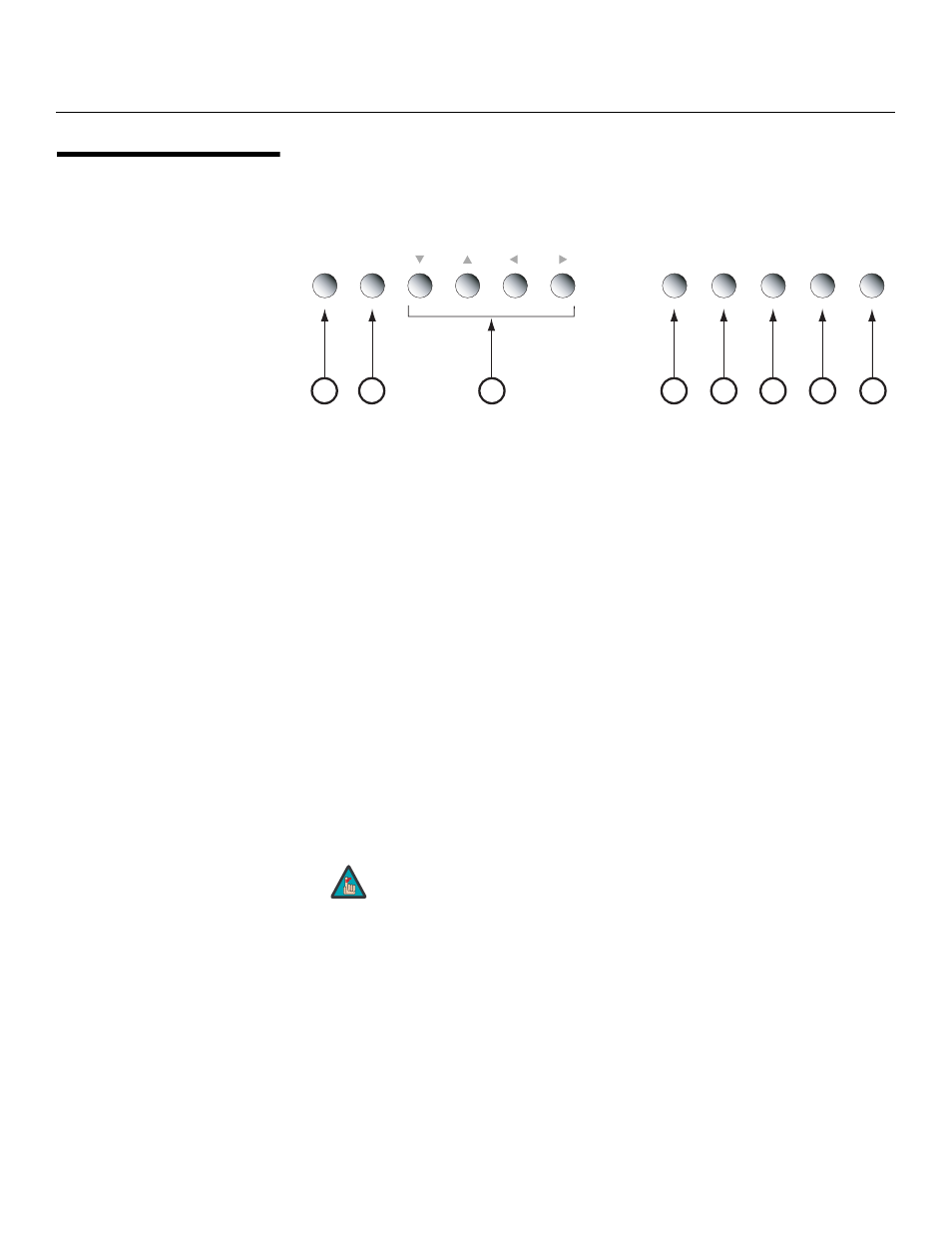

Figure 2-7. VX-6000d Built-In Keypad
1.
RETURN
Press RETURN to exit the current menu or cancel an operation.
2.
ENTER
Press ENTER to confirm a menu item selection.
3.
DOWN / UP / LEFT / RIGHT
Use these buttons to select menu items or adjust settings.
4.
MENU
Press MENU to display or hide the OSD menus for digital 1080i or 1080p sources.
5.
(not used)
6.
(not used)
7.
STBY
Press STBY to put the projector into standby mode.
8.
POWER
Press POWER to turn the projector on or off.
Only trained service personnel should use the built-in
keypad. Almost all projector configuration and operational tasks
can be performed using the DHD Controller.
It is only necessary to use the built-in keypad if IR signals from the
remote control cannot reach the DHD Controller, or for performing
service-related tasks such as resetting the lamp hour counter (refer
to Lamp Replacement on page 73).
