Installation
Runco VX-6000d Owner’s Operating Manual 37
PRE
L
IMINAR
Y
Connecting 12-Volt
Trigger Outputs to
External Theater
Equipment DHD Controller: If your VX-6000d is equipped with a CineWide with AutoScope system,
connect the AutoScope lens motor to a 12-volt trigger output on the DHD Controller; see
Figure 3-14.
Similarly connect other 12-volt trigger-activated equipment (such as retractable screens or
screen masks) to the other trigger outputs.
For more information on using the DHD Controller triggers, refer to Triggers on page 63.

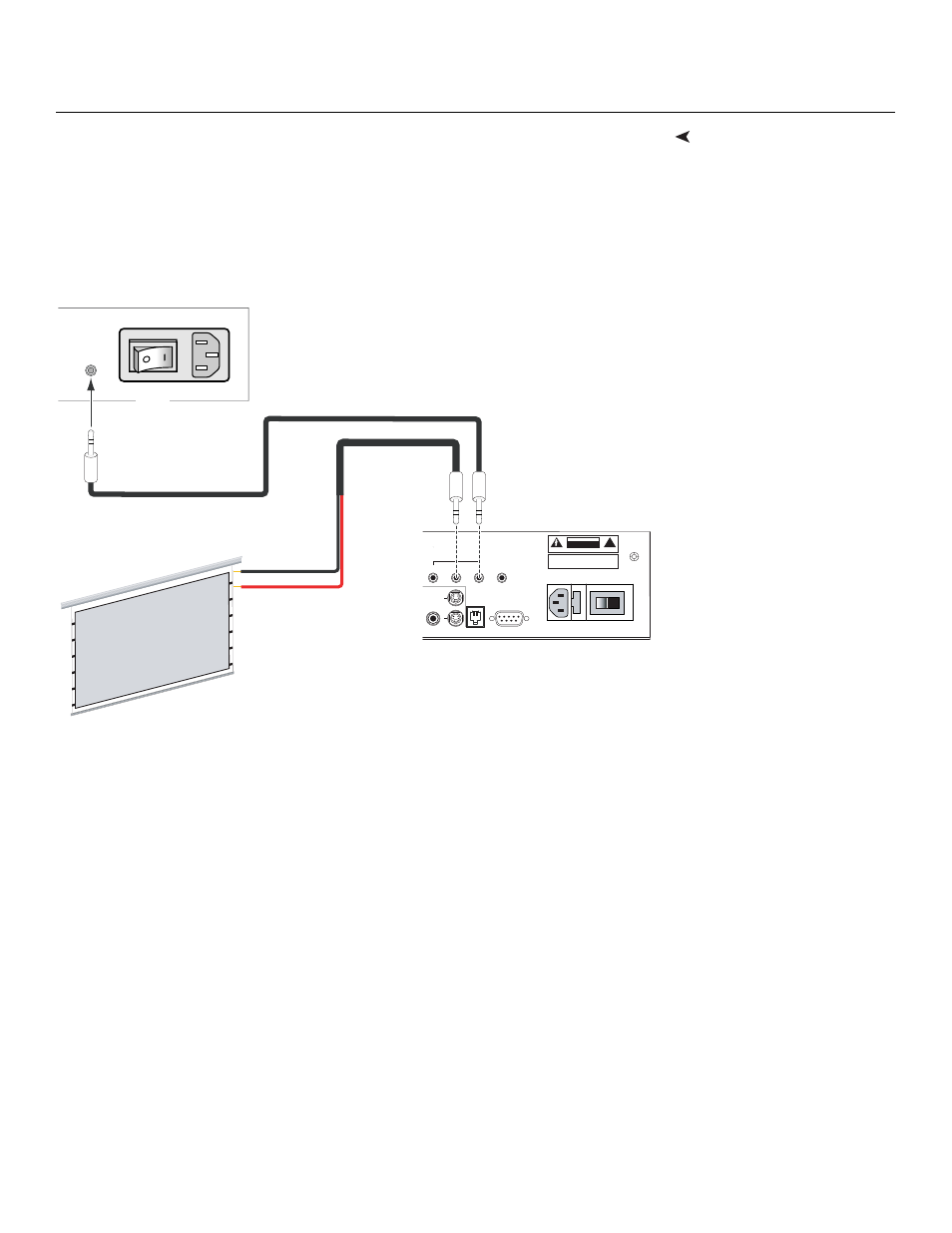

Figure 3-14. 12-volt Trigger Output Connections (from DHD Controller)
Tip = +12V
Sleeve = Ground
Pb Pr Y
Video
3 IR
RS-232 Control
S-Video 1
S-Video 2
HD1
HD2
1 2
R/Pr G/Y B/Pb
R/Pr G/Y B/Pb H V
DVI 1 DVI 2 DVI Out H/V V H
R/Pr G/Y B/Pb
H V
TRIGGERS
RS-232 Out
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE CENTER.
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
!
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
100-230VAC 50-60 Hz, 165 Watts Max
OUTPUTS
INPUTS
SYSTEM CONTROL INTERFACE
Component Video
SDI
Option
Serial No
Video Processor / Controller
Model
Runco International
Union City, CA
Made In USA
DHD Controller
Rear Panel
AutoScope Lens Motor (Rear)
3.5-mm
mini plug
AC Input Power
Switch
Retractable Screen or other
12-volt trigger-activated
device
