Installation
42 Runco VX-6000d Owner’s Operating Manual
PRE
L
IMINAR
Y
3.10
Installing and
Adjusting the
CineWide Anamorphic
Lens If you are installing a CineWide-equipped projector, proceed as follows to install and
adjust the anamorphic lens.
Attach Lens Mounting
Assembly to Lens Motor
Carriage Plate (CineWide
with AutoScope) or Base
Plate (fixed CineWide)
The VX-6000d Anamorphic lens mount kit consists of everything shown in Figure 3-18.
Some components shipped with your projector may differ slightly from what is shown in
these instructions. If any items are missing or damaged, please contact your Runco dealer
or Runco Customer Service at (800) 23-RUNCO.

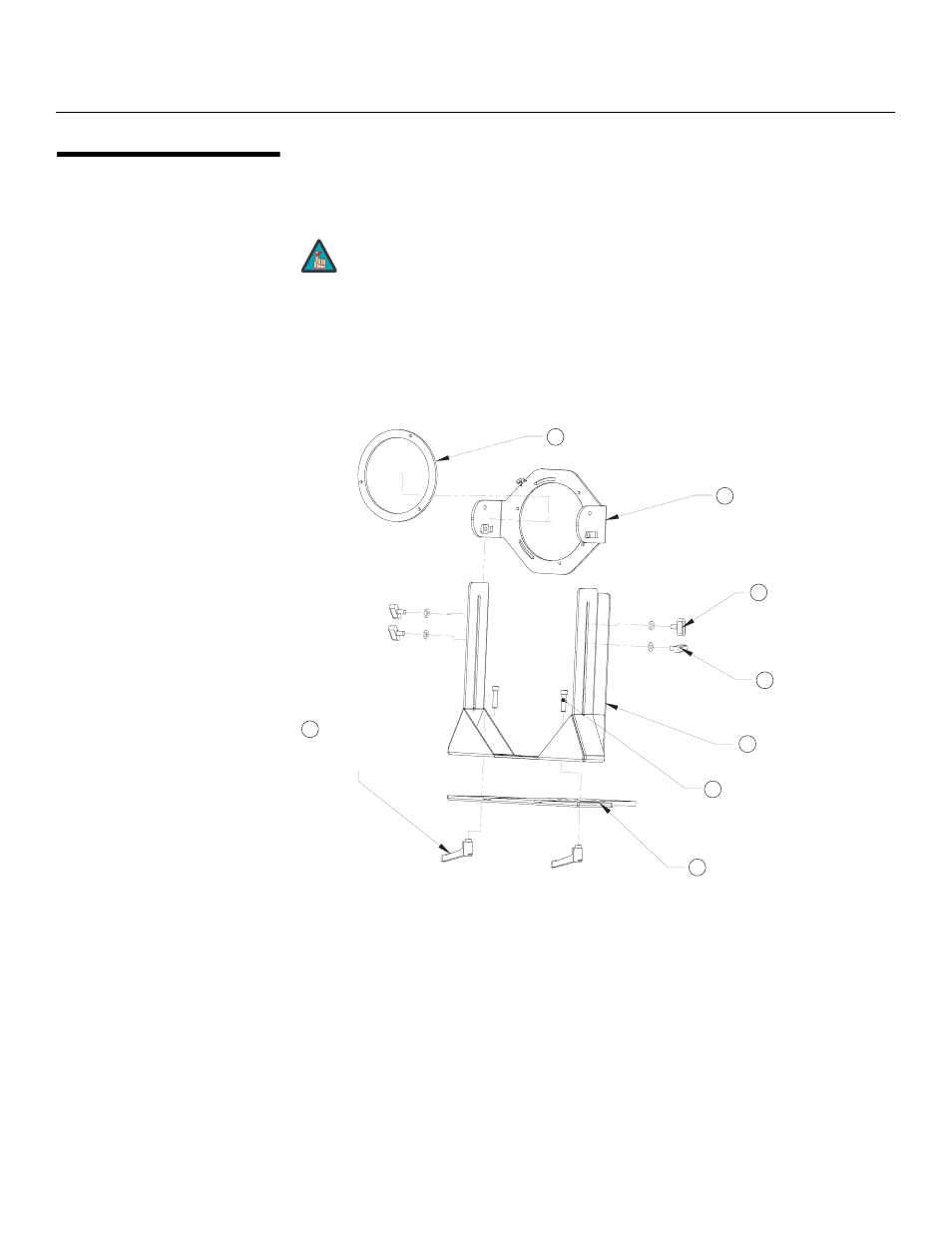

Figure 3-18. VX-6000d Anamorphic Lens Mounting Assembly - Exploded View
1. Remove the two Yaw/X Adjustment Levers and 1/4-20 Fiber Washers (item #8) from
the bottom of the Anamorphic Lens Holder (item #5).
2. Place the Anamorphic Lens Holder on top of the AutoScope Carriage Plate or fixed
CineWide base plate (item #7). Position the bracket so that the long slot at the bottom
of the lens holder is perpendicular to the corresponding slots on the carriage plate or
base plate.
3. Secure the Anamorphic Lens Holder to the plate using the Hex Bolts (item #6), Yaw/X
Adjustment Levers and Washers that you removed in Step 1.
It is extremely important that the primary lens is properly
adjusted before you install the anamorphic lens. Ensure that
the image from the primary lens is perfectly centered on the
screen.
Note
➤
Pitch Adjustment Yoke
for Lens
Height/Y Adjustment
T-Screw (2x)
and Washer (2x)
Pitch Adjustment
T-Screw (2x)
and Washer (2x)
Anamorphic Lens
Holder
1/4-20 Hex Bolts (2x)
AutoScope Carriage Plate
Yaw/X Adjustment
Levers (2x) and
Washers (2x)
2
3
4
6
7
8
5
Lens Adapter Ring 1
