Chapter 3: Working with Target Servers
42
ƒ Availability - The Availability can be Idle, Connected, Busy, or
Unavailable. Blade servers will have an availability of either
shared or exclusive when a connection to that blade is in place.

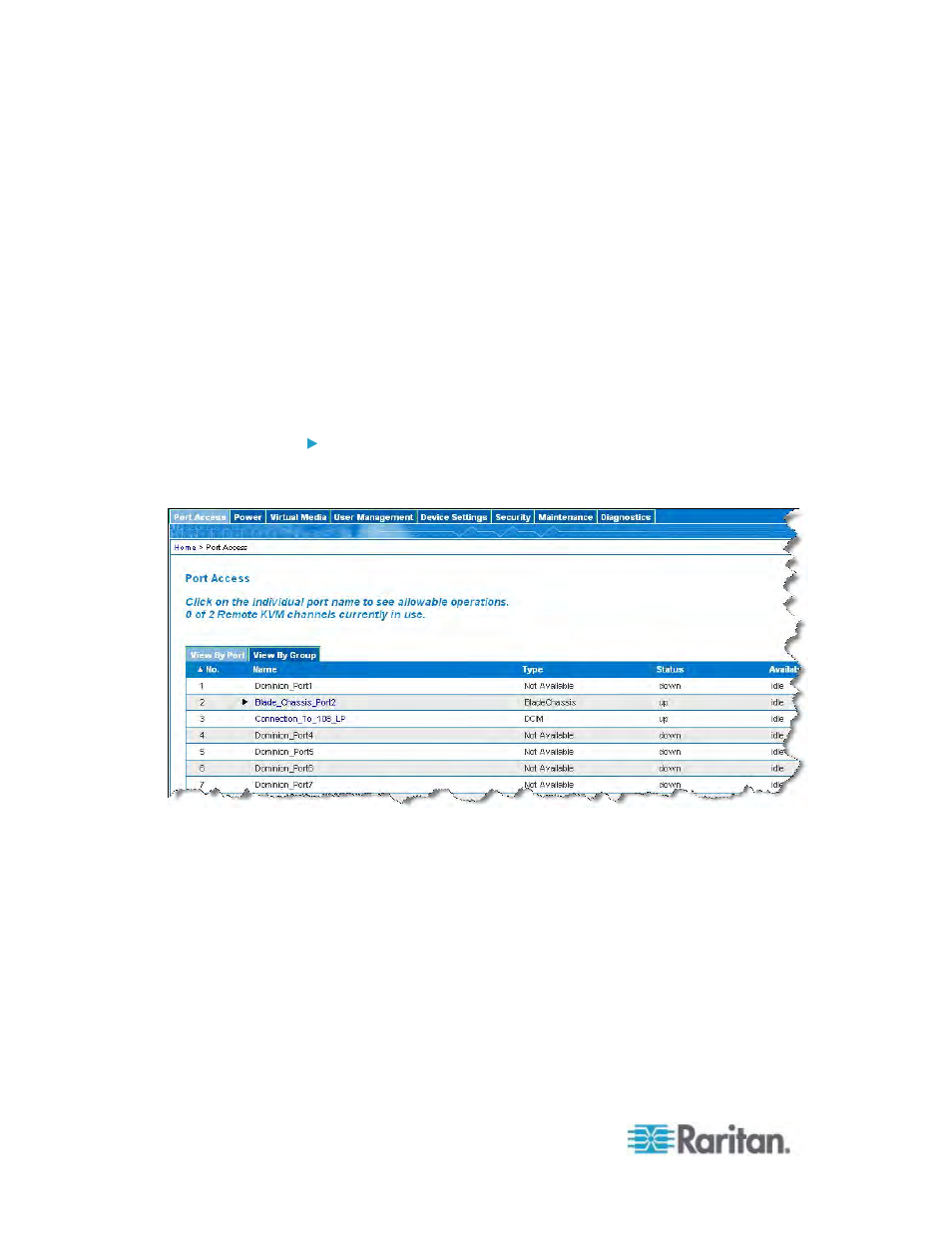

2. Click View by Port or View by Group to switch between views.
ƒ In addition to the Port Number, Port Name, Status, Type, and
Availability, a Group column is also displayed on the View by
Group tab. This column contains the port groups that are
available.
3. Click the Port Name of the target server you want to access. The
Port Action Menu appears. See Port Action Menu (on page 43) for
details on available menu options.
4. Choose the desired menu command from the Port Action Menu.
To change the display sort order:
•
Click the column heading by which you want to sort. The list of KVM
target servers is sorted by that column.
