Chapter 3
Installation
RuggedBackbone™ RX1501
Installation Guide
28
SFP Module Removal

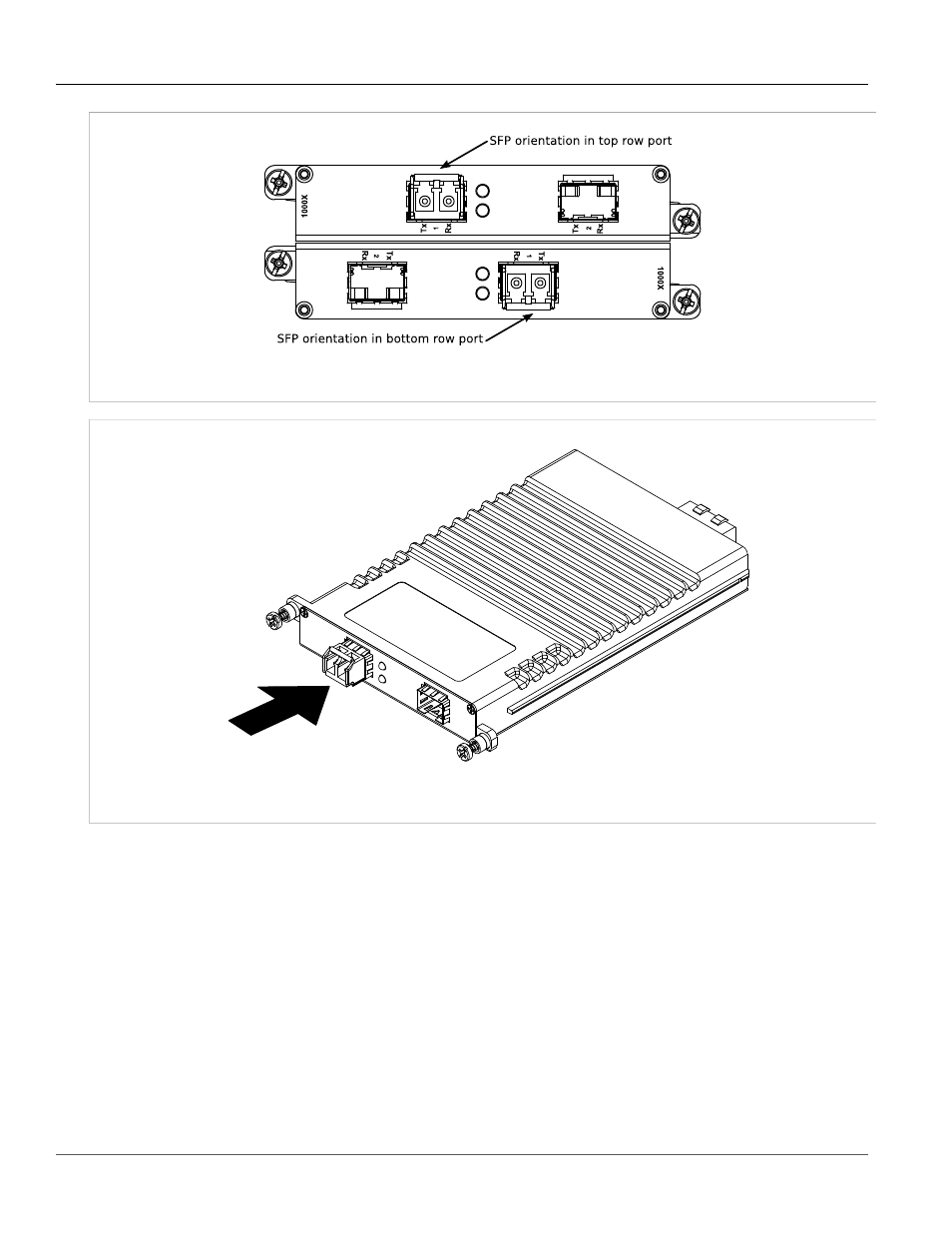

Figure 55: SFP module orientation
Figure 56: SFP module insertion
SFP modules should slide gently into their ports and should lock in place when fully inserted. Dust covers should
be in place when installing the modules, and should always be in place when cables are not connected.
Section 3.11.2
SFP Module Removal
To remove the SFP module, disconnect any cables and replace the dust cover to protect the optics. Extend the
bail latch found on the top of the module. Grasp the bail latch and gently pull outwards to unlock and remove the
module.
Immediately after removal, store the SFP module in an ESD-safe environment.
