Chassis Ground Connection
19
Section 3.2.3
Chassis Ground Connection

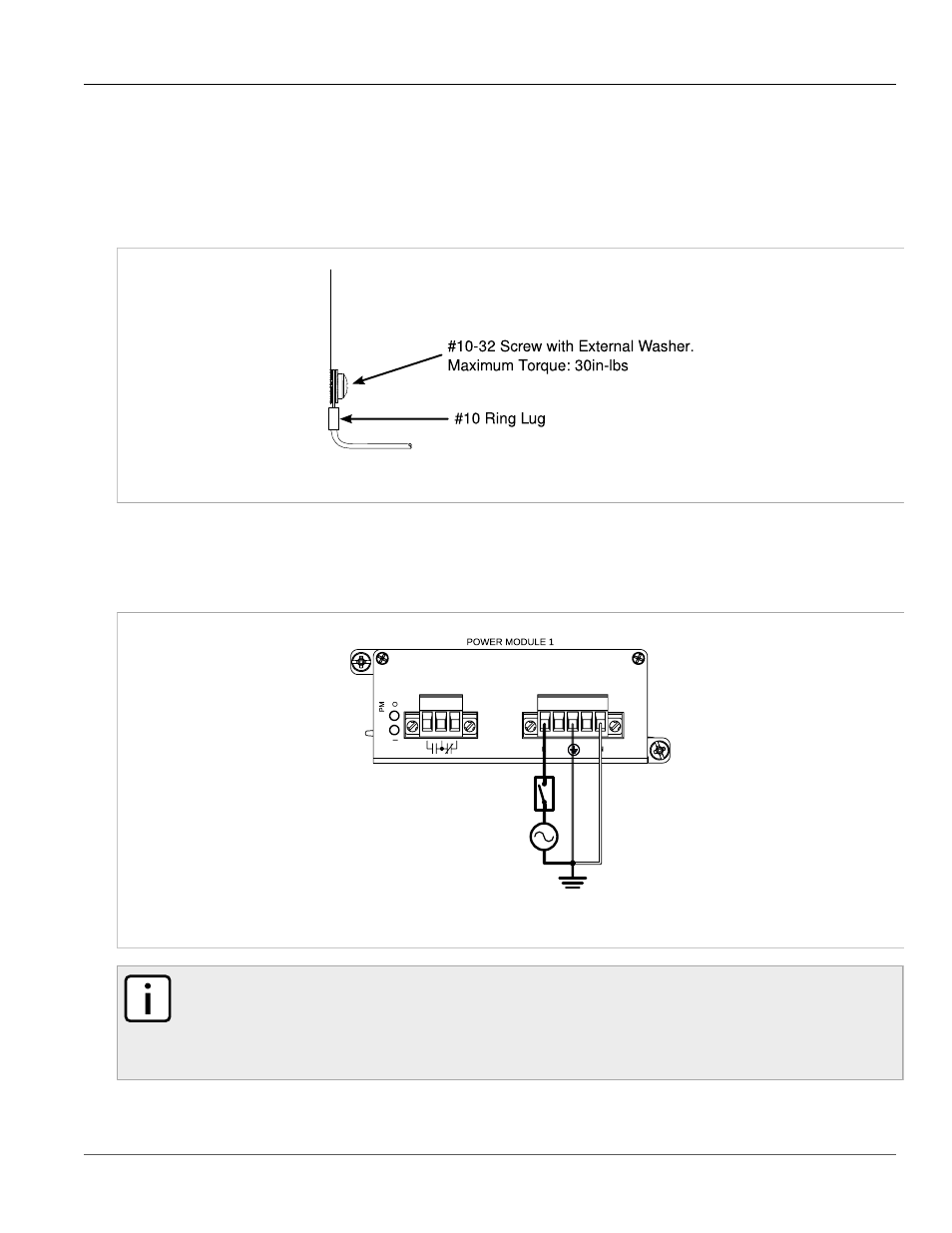

The RX1501 chassis ground connection, shown in
Figure 42, “Chassis Ground Connection”
screw. It is recommended to terminate the ground connection in a #10 ring lug. Torque on the chassis ground
connection should not exceed 30 in-lbs (3.4 Nm).
Figure 42: Chassis Ground Connection
Section 3.2.4
AC Power Supply Wiring Example
Figure 43: Wiring for Single AC Power Supply (HIP module shown)
NOTE
• For 125/230VAC rated equipment, a appropriately rated AC circuit breaker must be installed.
• It is recommended to provide a separate circuit breaker for each power supply module.
• Equipment must be installed according to applicable local wiring codes.
