RuggedBackbone™ RX1501
Installation Guide
Chapter 2
RuggedBackbone™ Modules
Power Supply 11
Power modules may be ordered with a screw terminal block or with a pluggable terminal block. The screw
terminal block features a safety cover which must be removed to make wiring connections, and must be replaced
after wiring is complete.
Power modules may be ordered as separate components. Refer to the RX1501 data sheet for complete ordering
details.
P
M
I
O

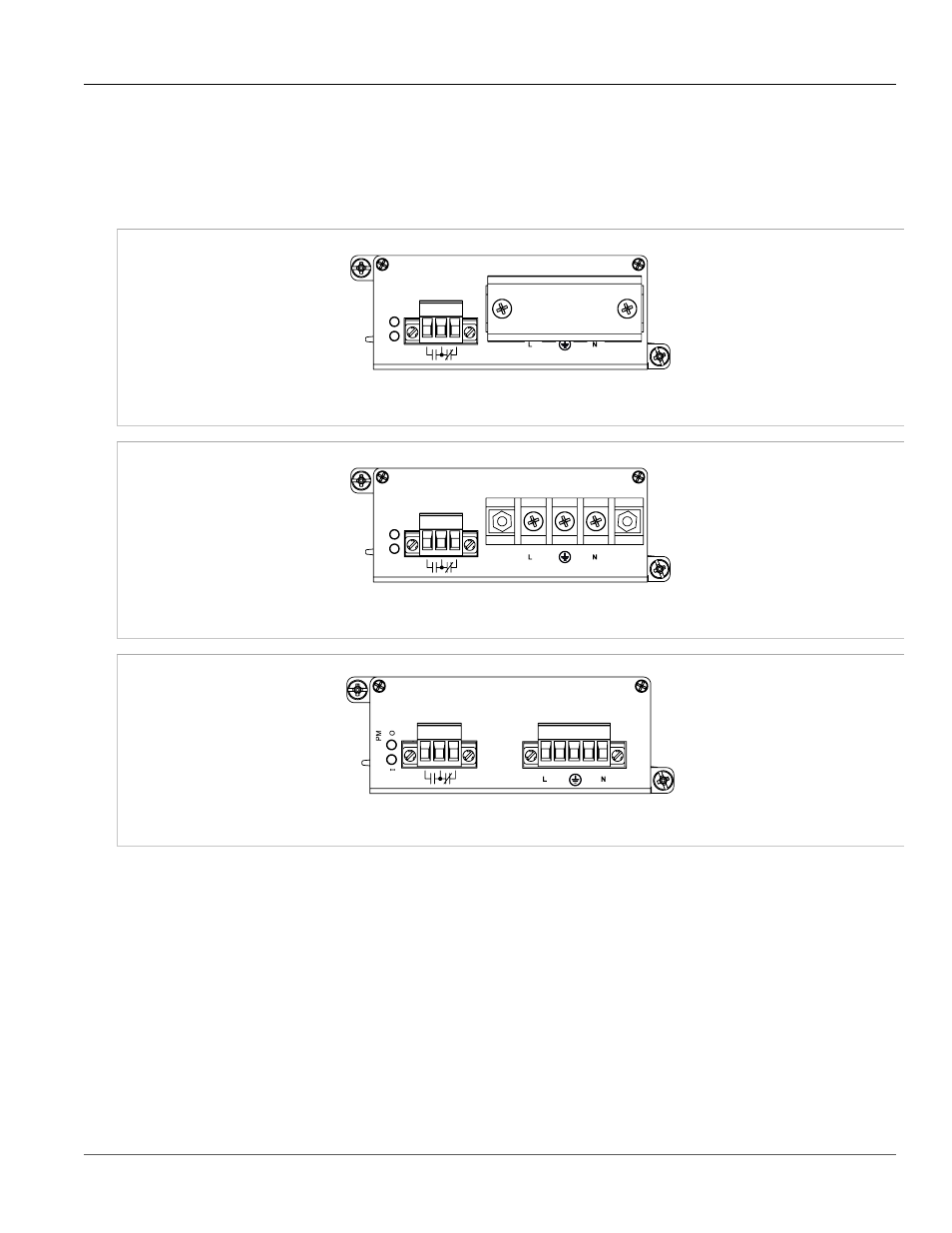

Figure 28: Screw terminal block power module: terminal cover in place (HI module shown)
P
M
I
O
Figure 29: Screw terminal block power module: terminal cover removed (HI module shown)
Figure 30: Pluggable terminal block power module (HIP module shown)
