Chapter 4. Connecting External Devices
■ Switching Local Control On
and Off
When connecting a MIDI sequencer, set Local Control to
“OFF.”
As illustrated, information describing what has been played
on the keyboard is passed to the internal sound generator
over two different routes, (1) and (2). As a result, you hear
overlapping or intermittent sounds. To prevent this from
happening, route (1) must be severed, by setting the unit to
what is known as “Local Off.”

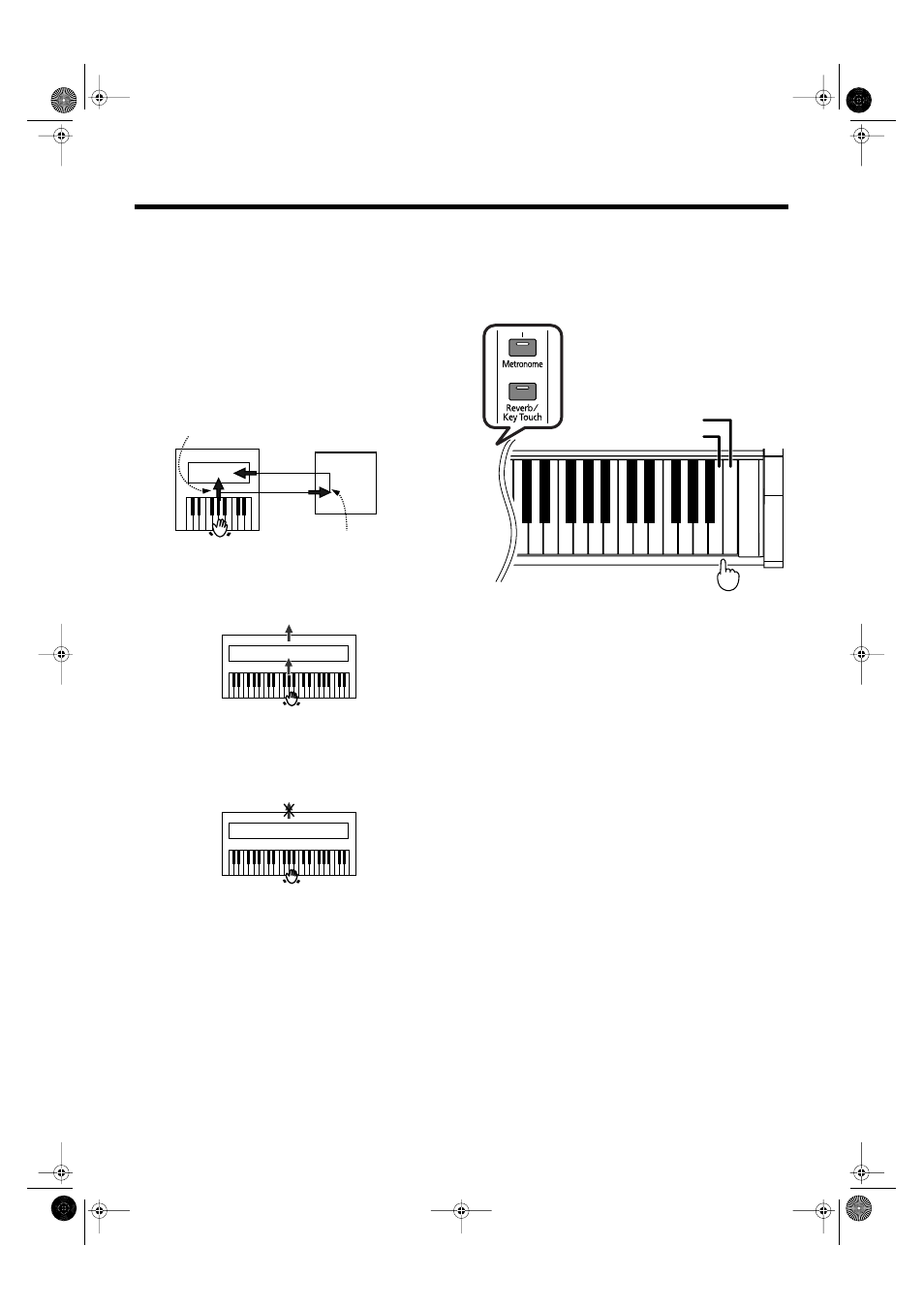

fig.localcont.e
Local Control ON: The keyboard and the internal sound
generator are in a linked state.
fig.localon.e
Local Control OFF: The keyboard and the internal sound
generator are in an unlinked state. No sound will be
produced by the keyboard when it is played.
fig.localoff.e
→ When a Roland MT series instrument is connected, it is not
necessary to make the Local Off setting. MT units transmit
Local Off messages when their power is switched on. If you
turn on the power in the order of the HP101
→ MT series,
Local Off will be set automatically.
Local On is set when the power is switched on.
1. While holding down the [Metronome] and [Reverb/
Key Touch] buttons, the “C8” note to turn the setting
On, or press the “B7” note to turn the setting Off.
(1)
MIDI
MIDI MIDI
MIDI
(2)
IN
IN OUT
OUT
Sequencer
Memory
Sound
Generator
Each note played
is sounded twice
Thru function On
Local On
Local On
Sound is emitted
Sound Generator
Local Off
No sound produced
Sound Generator
C7 C6
Local Off
Local On
C8 B7
Press
While holding down
two buttons...
