Regency ® P33-4 Zero Clearance Direct Vent Gas Fireplace 8
COMBUSTIBLE MANTELS
Because of the extreme heat this fi replace emits, the mantel clearances are critical.

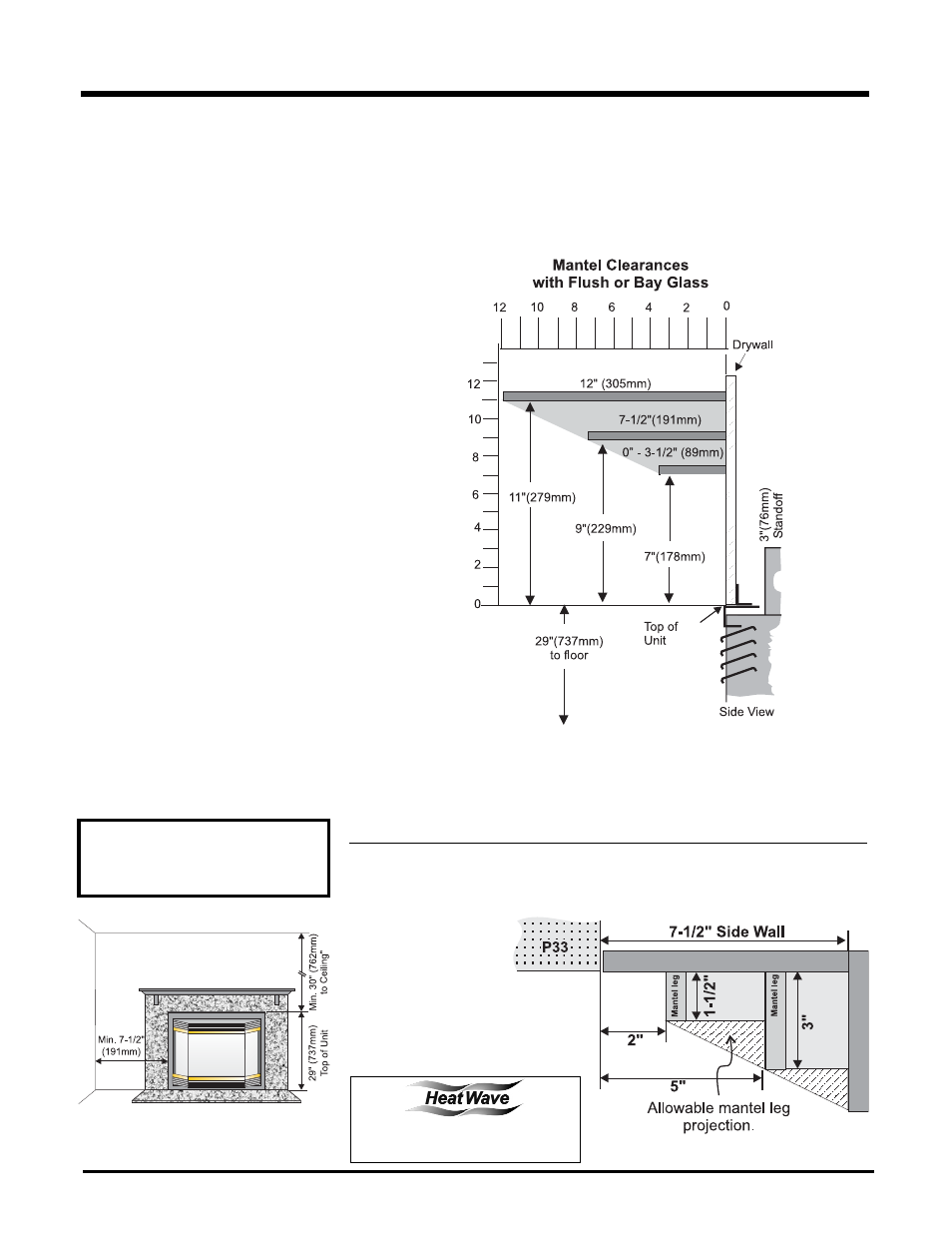

Combustible mantel clearances from top of unit are shown in the diagram below.
Note: A non-combustible mantel may be installed at a lower height if the framing is made
of metal studs covered with a non-combustible board.
INSTALLATION
Clearances for Bay or Flush Front
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram below:
This drawing is to scale at 1:6 (one inch = 6 inches). Mantel can be installed anywhere in shaded
area or higher using the above scale.
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or
the paint may discolour.
CLEARANCES
The clearances listed below are Minimum
distances unless otherwise stated:
A major cause of chimney related fi res is
failure to maintain required clearances (air
space) to combustible materials. It is of the
greatest importance that this fi replace and
vent system be installed only in accordance
with these instructions.
Clearance to Combustibles from:
Back
0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
NOTE: The minimum fl oor clearance must be
maintained from the top surface of the carpeting,
tile, etc.
Minimum Clearance from Top of Unit to:
Mantel* min.
7" (177mm)
Ceiling 30" (762mm)
from top of unit.
Side Wall Clearance
Bay or Flush Front 7-1/2"
(191mm)
Minimum Vent Clearances:
2-1/2" (64mm) Horizontal Top
1-1/2" (38mm) Horizontal Side
1-1/2" (38mm) Horizontal Bottom
1-1/4" (32mm) Vertical Vent Clearance
(Rigid Vent)
1-1/2" (38mm) Vertical Vent Clearance
(Flex Vent)
Alcove Clearances:
Max. Depth 36"
(914mm)
Min. Width 48" (1219mm)
Min. Height 59" (1499mm)
* see mantel clearance instructions.
Maximum
1-1/2" projection at 2"
minimum clearance.
WARNING
Fire hazard is an extreme risk if
these clearances are not adhered
to.
The HeatWave Duct Kit has different
clearance and framing requirements,
check the HeatWave manual for details.
