Regency ® P33-4 Zero Clearance Direct Vent Gas Fireplace 14
Pipe Length
Vertical
Terminal
Storm Collar
Flashing
Ceiling Firestop
24" Length
Adj.Pipe Length
11" - 14-5/8”
90 Elbow o
Horizontal
Termination Cap
# 946-523/P
Wall Thimble
Vinyl Siding
Standoff (Optional)
Rigid Pipe Adapter
# 510-994
45 Elbow o
Adj.Pipe Length
11" - 14-5/8”
Horizontal
Termination Cap
#946-523/P
Wall Thimble
Vinyl Siding
Standoff (Optional)

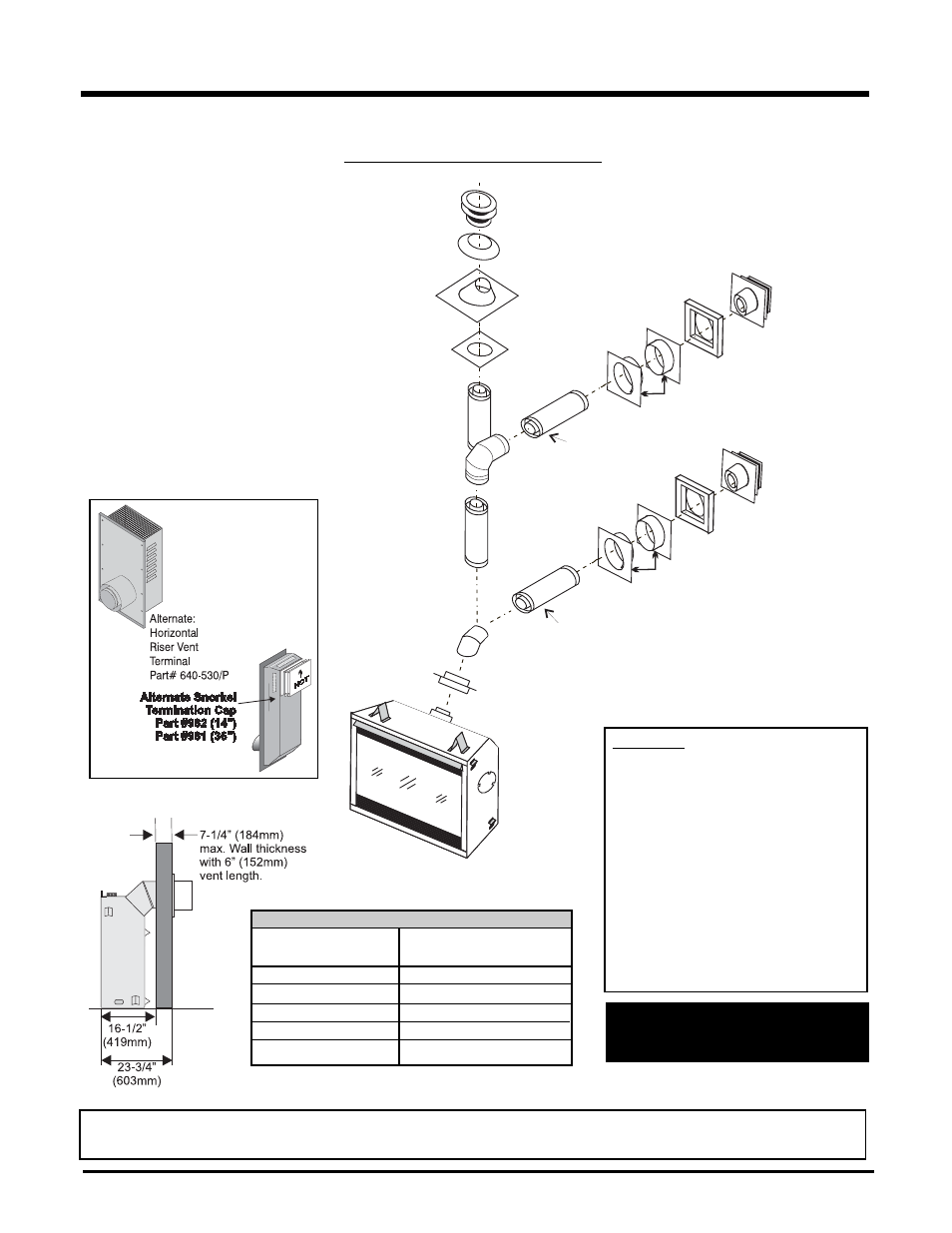

INSTALLATION
RIGID PIPE VENTING SYSTEMS
Horizontal or Vertical Terminations
The minimum components required for a basic
horizontal termination are:
1 AstroCap Horizontal Termination Cap
1 45
o Elbow
1 Rigid Pipe Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness
(see
chart)
For siding other than vinyl furring strips may
be used, instead of the vinyl siding standoff,
to create a level surface to mount the vent
terminal. The Terminal must not be recessed
into siding.
If a Vinyl Siding Standoff is required (it must
be used with vinyl siding), measure to outside
surface of wall without siding and add 2
inches.
Flat Wall Installation
Max. Wall Vent Length
Thickness (inches) Required (inches)
7 - 1/4"
6"
10 - 1/4" 9"
13 - 1/4" 12"
12-1/4" - 15-7/8" 11" - 14-5/8" Adj. Pipe
18-1/4" - 25-1/4" 11" - 14-5/8" Adj. Pipe
Alternate
Horizontal
Termination
Caps
This product has been evaluated by Intertek for
using a Rigid Pipe Adaptor in conjunction with
Duravent Direct-Vent GS, Selkirk Direct-Temp,
Ameri Vent Direct venting and Security Secure
Vent systems. Use of these systems with the
Rigid Pipe adaptor is deemed acceptable
and does not affect the Intertek WHI listing of
components.
WARNING:
Do not combine venting components from
different venting systems.
However use of the the AstroCap TM and FPI
Riser is acceptable with all systems.
When using Rigid Vent other than
Simpson Dura-Vent, 3 screws must be
used to secure rigid pipe to adaptor.
The FPI AstroCap TM and FPI Riser Vent terminal are certifi ed for installations using FPI venting systems as well as Simpson Dura-Vent ® Direct Vent GS,
American Metal Products Ameri Vent Direct Vent, Security Secure Vent ® , Selkirk Direct-Temp. AstroCap TM is a proprietary trademark of FPI Fireplace
Products International Ltd. Dura-Vent® and Direct Vent GS are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.
