Regency ® P33-4 Zero Clearance Direct Vent Gas Fireplace 28
INSTALLATION
Each Kit contains one LPG
Conversion Kit and one DC
Sparker Kit.
LPG Conversion Kit Contains:
Qty. Part #
Description
1 904-163 Burner Orifi ce #54
1 918-590 Decal "Converted to
LPG"
1 908-528 Red "LPG" label
1 904-529 5/32" Allen Key
1 910-037 LPG Injector
(Pilot Orifi ce)
1 918-480 Instruction Sheet
DC Sparker Kit Contains:
Qty. Part #
Description
1 820-475 Bracket DC Sparker
1 820-476 Bracket DC Sparker
1 904-153 Washer #8 External Star
1 904-330 Nut 8-32 Hex
1 904-438 Plug Nylon 0.750 Hole,
Black (for H25 only)
1 904-531 Bushing Split Plastic
0.500 in.
1 904-543 Screw 8-32 x 3/4 Pan
Head
2 904-553 Screw #8 x 1/2 Type
"B", Black Oxide
1 910-073 Spark Generator
Battery Holder
1 910-074 Spark Generator
Switch C/W Wire
1 910-078 Battery Size AA
Energizer En91
2 910-199 Clip Wire Holder
1 910-903 Wire Fan To Power Cord
Ground 30 in.
904-781 Velcro Hook, Black

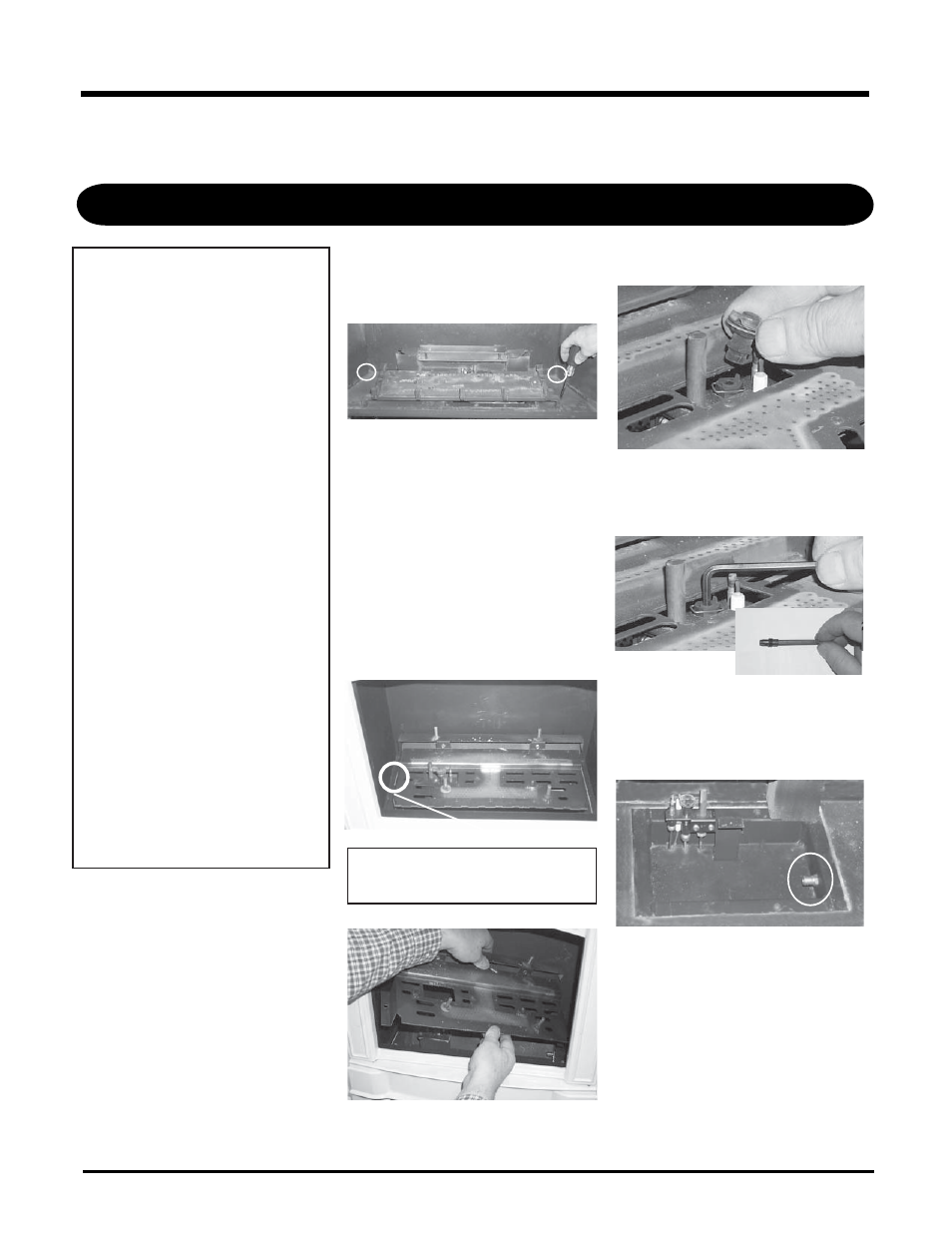

Remove the 2 screws, push Burner
Assembly to the left and lift out.
3) Pull off the pilot cap to expose the pilot
orifi
ce.
Installation of the LPG
Conversion Kit:
1) Shut off the gas supply.
2) P33-4 Only:
a) Remove the louvers (and bay door if it
is installed).
b) Open the fl ush door and remove the
door.
c) Remove the logs, embers, and brick
panels (if used).
2) H25-1 Only:
a) Lift off the Cast Top and remove
the glass front (refer to Glass
Replacement section in the H25-1
manual) and carefully remove the
logs and lava rock (refer to Log
Installation section in manual).
b) Remove burner by removing the 2
screws on each side and then lifting
the burner tray out.
Pilot assembly is now accessible for
steps 4) to 9).
d) Remove the 2 screws holding the
Burner Assembly to the fi rebox base.
Push the Burner Assembly to the left
and lift out.
Screws
4) Unscrew the pilot orifi ce with the Allen
key and replace with the LPG pilot orifi ce
in the kit and replace pilot cap.
5) Remove burner orifi ce with a 1/2"
wrench and discard. Use another
wrench to hold on to the elbow behind
the orifi ce.
Burner Orifi ce
6) Reinstall new burner orifi ce LPG
stamped #54 and tighten.
Note: Use a magnetic type
screwdriver if possible.
CONVERSION KIT# 434-969 FROM NG TO LP
For P33-4/H25-1 Using SIT 820 NOVA Gas Valve
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !!
