P33-4 Zero Clearance Direct Vent Gas Fireplace

12

IMPORTANT

If using any Cabinet Mantels with Part #
510956, 510958, 510962, 510964 and
510834 the wall thimble must be secured fi rst
and venting must be attached to unit before
sliding into fi nal position.

Also Rigid Vent venting cannot be used with
any of the mantels noted above. See Price
Pages for alternative options.

Wherever necessary due to
external location of cap, the
AstroCap can be replaced with
the FPI Riser Vent Termination
Cap or the Dura-Vent Snorkel
Termination Cap.

INSTALLATION

REGENCY

®

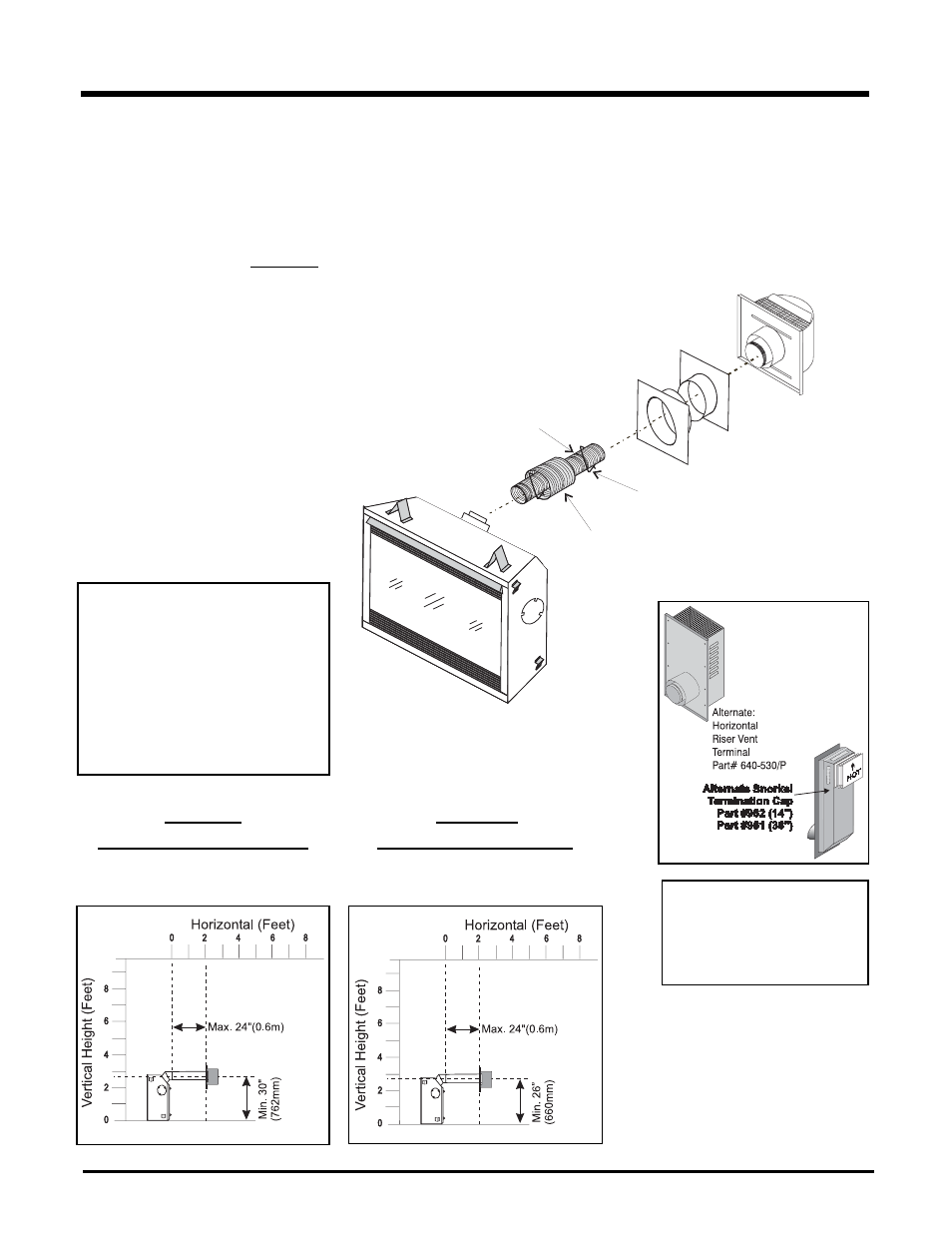

DIRECT VENT FLEX SYSTEM

Horizontal Terminations Only

This venting system, in combination with the P33-4 Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by Warnock

Hersey. The location of the termination cap must conform to the requirements in the "Exterior Vent Terminal Locations" Section .

Regency

®

Direct Vent Flex Termination Kit (Part # 946-513) includes all the parts needed to install the P33-4 with a maximum run of 2

feet. If installing the P33 with a continuous vent length of more than 2 ft (.6m) to a maximum of 10 ft. (3.0m) use Kit # 946-515 (4 ft) or 946-516

(10 ft) or see "Rigid Pipe Venting Systems" Section for alternate venting arrangements.

1) 6-7/8" dia. fl exible liner (2 ft. length)

2) 4" dia. fl exible liner (2 ft. length)

3) spring

spacers

(3)

4) thimble

(2)

5) AstroCap termination cap (1)

6) screws

(12)

7) tube of Mill Pac (1)

8) plated

screws

(8)

9) screws #8 x 1-1/2" drill point,

stainless

steel

(4)

6-7/8"

(173mm)

dia. Flue pipe

4" (102mm)

dia. flue pipe

Wall Thimble (2 pc)

(required in

Canada only)

Termination Cap

(Part# 946-523/P)

AstroCap

TM

spring
spacer

See Figure 1 below

for Alternate Caps.

Notes:
1) Liner sections should be continuous

without any joints or seams.

2) Only Flex pipe purchased from Regency

®

may be used for Flex installations.

MINIMUM

FLEX KIT CENTER-LINE

MINIMUM

RIGID PIPE CENTER-LINE

Alternate

Horizontal

Termination

Caps

Figure 1
