Regency ® P33-4 Zero Clearance Direct Vent Gas Fireplace 31
Note: The logs must not be in the unit.
3) Insert the back brick panel by carefully
slipping it between the back wall of the
fi rebox and the rear log bracket.

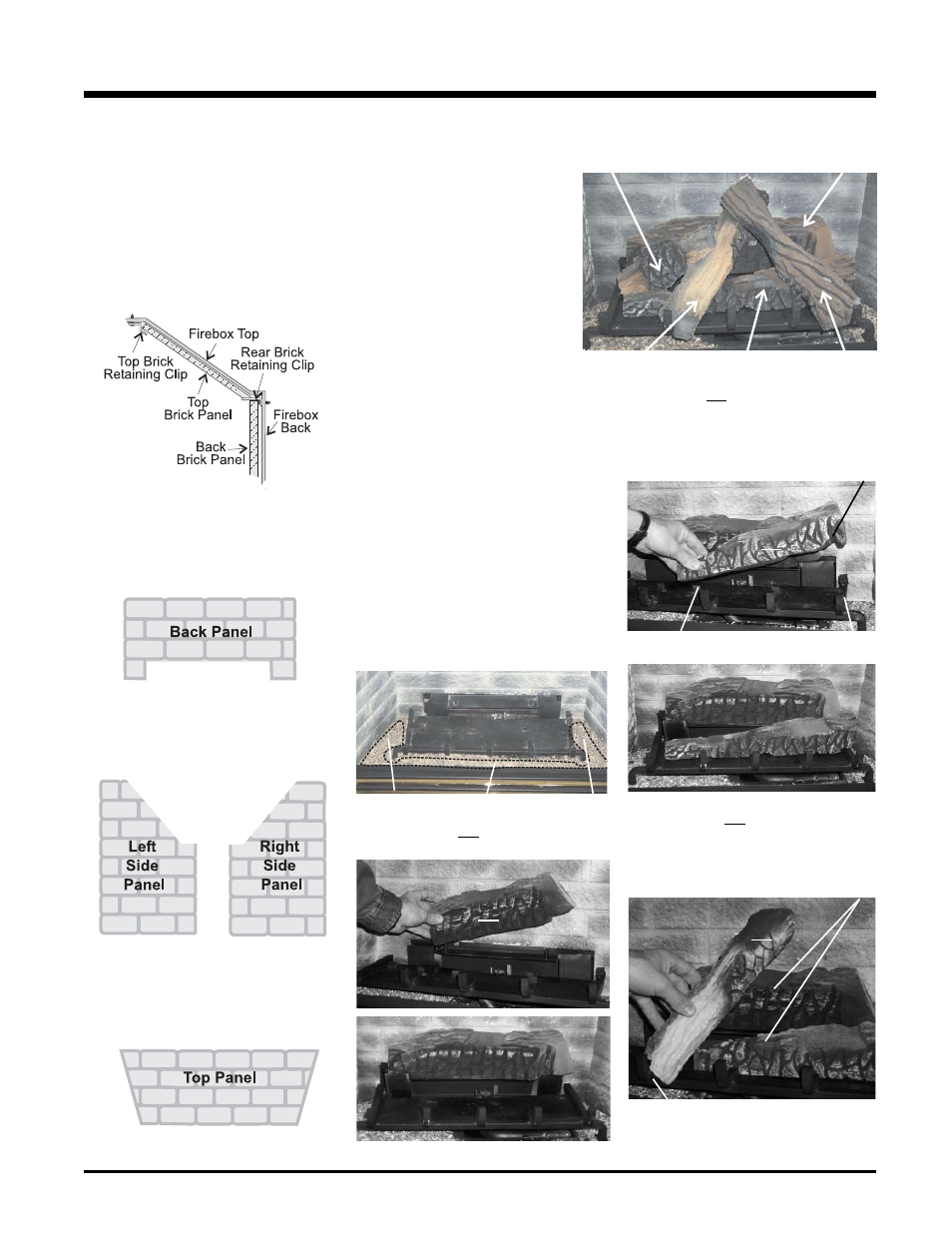

OPTIONAL BRICK
PANELS
1) Undo the bottom 2 door latches and open
and remove glass door. Remove logs.
2) Attach the 2 Rear Brick Retaining clips to
the rear wall. Loosen the screws in the top
and rear wall of the fi rebox and slide the
retaining clips into position (tight against the
fi rebox top) and then tighten the screws.
4) Put the side panels in next. Slide them in
from the front and push them fl at up against
the wall. Be very careful not to scratch them
on the fi rebox hardware.
5) Slide the Top Brick Panel into position and
slide the Top Brick Retaining clips so that
they hold the Top Brick Panel in place and
tighten down the screws.
LOG SET INSTALLATION
Notch
Bracket Bracket
250
254
Vermiculite
Vermiculite Vermiculite
250
254
The 3-digit numbers (i.e. 250) are
molded into the rear of each log.
Read the instructions below carefully
and refer to the diagrams. If logs
are broken do not use the unit until
they are replaced. Broken logs can
interfere with the pilot operation.
Log Kit # 431-930 contains the
following pieces:
A) 250 Rear Log
B) 254 Middle Cross Log
C) 253 Front Left Cross Log
D) 251 Rear Left Log
E) 252 Front Right Cross Log
F) Embers 902-156
G) Vermiculite 902-179
H) Rock Wool 902-153
I) Platinum Embers 946-669
(supplied with packaged manual)
NOTE: If you will be installing the optional
Brick Panels, install the Brick Panels
prior to installing the logs.
1) Carefully remove the logs from the box and
unwrap them. The logs are fragile, handle
with care - do not force into position.
2) Sprinkle the vermiculite and embers around
the fi rebox base.
3) Place the Log 250 on the rear log support
pins with the fl at side to the back.
4) Place Log 254 on the front right side of the
burner. Push the back of the log against
the 2 brackets with the notch on the bottom
right side of the log fi tting into the right side
of the grate.
5) Position Log 253 across the cutouts in
Logs 250 and 254 with the notch on the
left side of the log fi tting into the 2nd grate
tab.
Cutouts
2nd Grate Tab
253
250
254
D) 251 A) 250
C) 253 B) 254 E) 252
INSTALLATION
