7

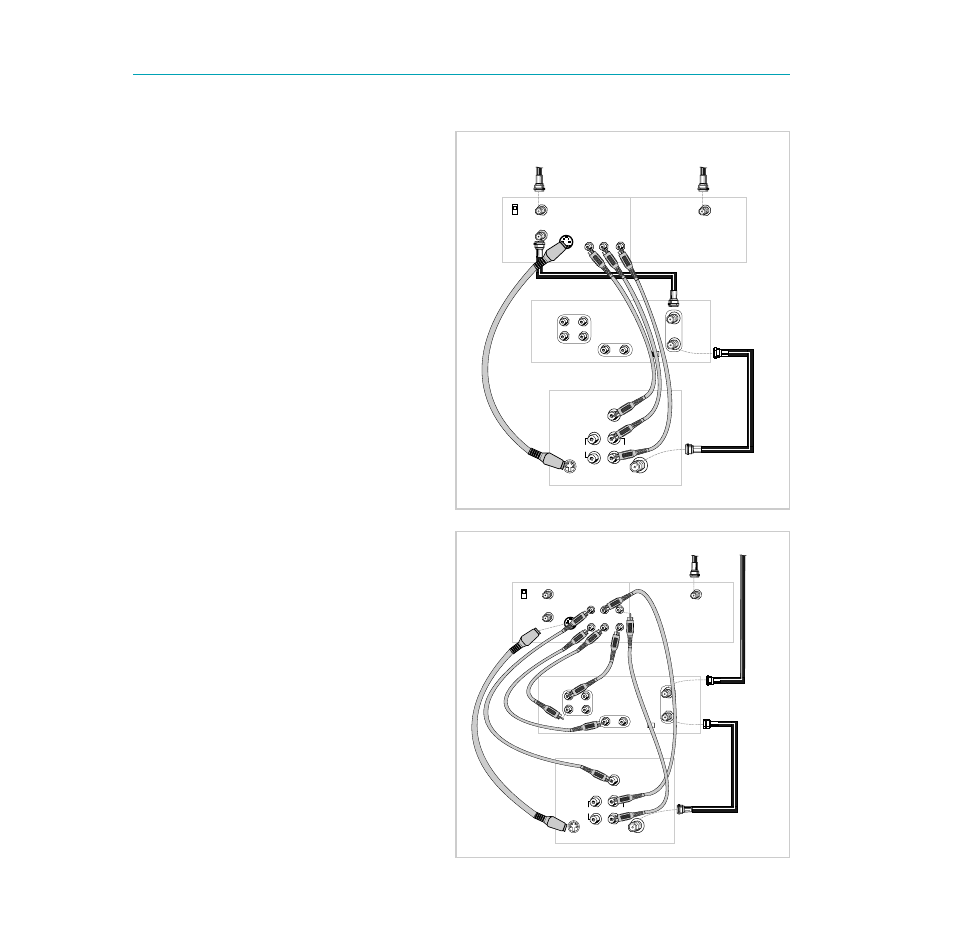

Advanced Hookup with Basic
Receiver
Use this hookup if your TV has audio/video jacks
and your receiver has one set of
AUDIO/VIDEO
jacks.
1. Set the CH3 CH4 switch on back of receiver
to either channel 3 or 4.
You will tune the VCR to this channel to
record from the satellite receiver.
To watch the satellite receiver, tune your TV
to its video input channel.
If you want to watch or record the signal
from your antenna, cable, or cable box, make
sure the satellite receiver is turned off.
2. Set the CH3 CH4 switch on back of receiver
to either channel 3 or 4.
You will tune the TV to this channel and use
the TV¥VCR button to watch the VCR.
3. Connect as shown.
This connection may require additional
accessories not provided.
4. Plug in power cords of VCR, TV, and
receiver.
5. Go to page 9 for VCR setup information.
Advanced Hookup with Deluxe
Receiver
Use this hookup if your TV has audio/video jacks
and your receiver has two sets of
AUDIO/VIDEO
jacks.
1. Set the CH3 CH4 switch on back of receiver
to either channel 3 or 4.
You will tune the TV to this channel and use
the TV¥VCR button to watch the VCR.
To record from the satellite receiver, you will
tune the VCR to its line input (
L1
).
To watch the satellite receiver, tune your TV
to its video input channel.
2. Connect as shown.
This connection may require additional
accessories not provided.
3. Plug in power cords of VCR, TV, and
receiver.
4. Go to page 9 for VCR setup information.
Digital Satellite Receiver
CH
3 4
AUDIO
VIDEO
R
R
L
IN
OUT
IN
OUT
VIDEO
R AUDIO L
S-VIDEO
CH3
CH4
IN FROM ANT
SATELLITE IN
OUT TO TV
S-VIDEO
AUDIO
CABLE /
ANTENNA
L /
MONO
RIGHT
VIDEO
INPUT
IN
OUT
Back of TV
Audio/Video Cables
(supplied)
Back of VCR
Back of Satellite Receiver
From
Satellite
Dish
RF Coaxial Cable
(supplied)
RF Coaxial Cable
From
Cable, Cable Box
or Antenna
IN
FROM
ANTENNA
OUT
TO
TELEVISION
MONO
L
VIDEO
R AUDIO L
S-VIDEO
CH3
CH4
IN FROM ANT
SATELLITE IN
OUT TO TV
S-VIDEO
AUDIO
CABLE /
ANTENNA
L /
MONO
RIGHT
VIDEO
INPUT
IN
OUT
Back of TV
Audio/Video Cables
Audio/Video Cables
(supplied)
Back of VCR
Back of Satellite Receiver
From
Satellite
Dish
RF Coaxial Cable
(supplied)
From
Cable Box
or Antenna
CH
3 4
AUDIO
VIDEO
R
R
L
IN
OUT
IN
OUT
IN
FROM
ANTENNA
OUT
TO
TELEVISION
MONO
L
RCA Satellite Receiver
